2M4/2M5/2M6/2M7

1-5-16

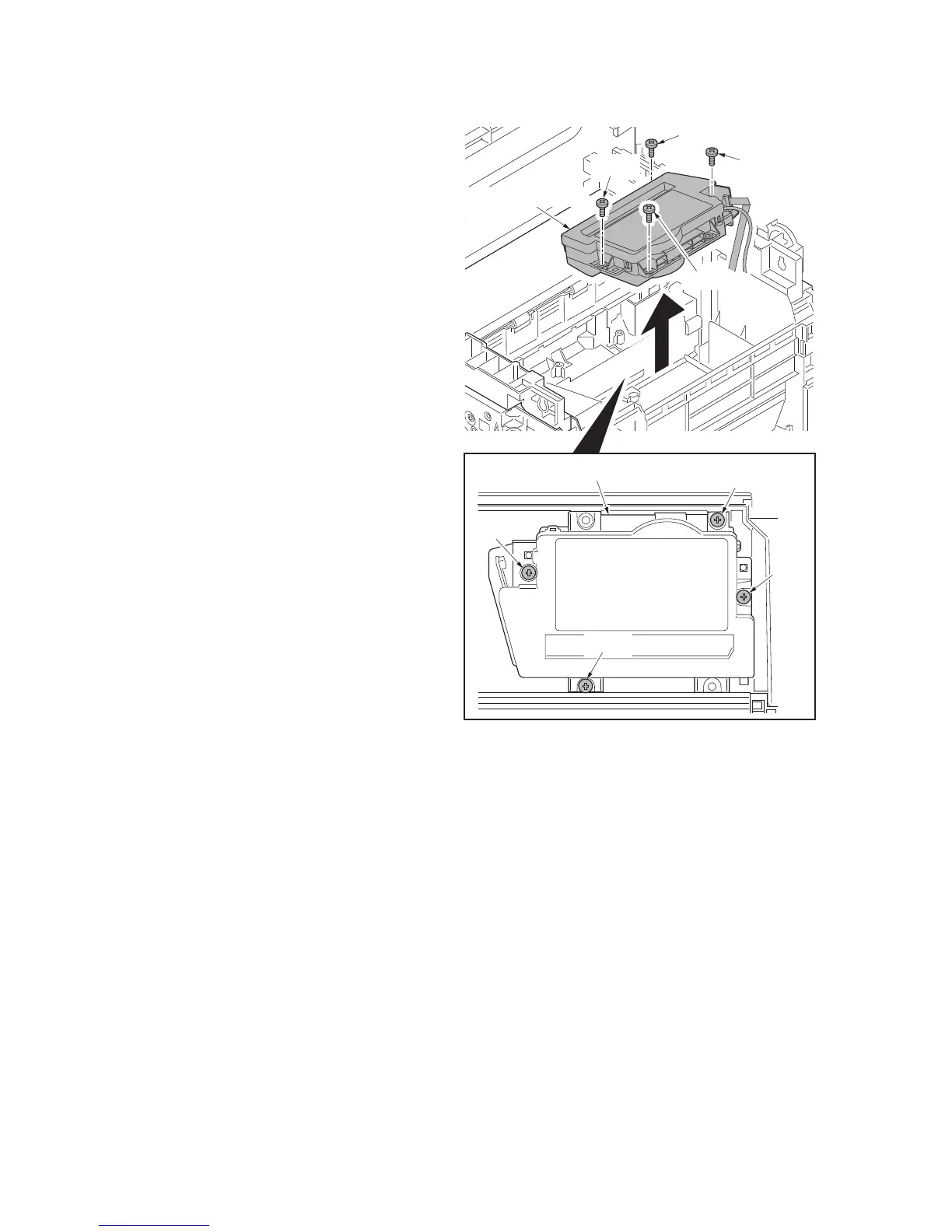

6. Remove four screws and then remove

the laser scanner unit.

7. Check or replace the laser scanner unit

and refit all the removed parts.

Figure 1-5-23

Screw

Screw

Screw

Screw

Screw

Screw

Screw

Screw

Laser scanner unit

Laser scanner unit

Table of Contents

Service Manual1
Revision History3
Safety Precautions5
Installation Precautions7
Table of Contents11
Specifications15
Parts Names24
- Machine24
- Operation Panel26
Machine Cross Section27
- 20/21 Ppm Model27
- 25/26 Ppm Model28
- ISU/DP Section29
Installation Environment31
Unpacking and Installation33
- Installation Procedure33
Service Mode53
- Executing a Service Mode53
- Operation Method54
  - Status Page58
  - Event Log62
Maintenance Menu71
- Items for Various Settings73
- Service Package75
Paper Misfeed Detection77
- Paper Misfeed Indication77
- Paper Misfeed Detection Condition78
Self-Diagnostic Function81
- Self Diagnostic Codes82
Image Formation Problems86
- No Image Appears (Entirely White)86
- No Image Appears (Entirely Black)87
- Part of Image Is Missing88
- Gray Background88
- White Streaks Are Printed Vertically89
- Black Streaks Are Printed Vertically89
- White or Black Streaks Are Printed Horizontally89
- Spots Are Printed.printing Incomplete or out of Position90
- Printing Incomplete or out of Position90
- Paper Is Wrinkled90
- Offset Occurs91
- Fusing Is Loose91
- Faint or Blurred Printing91
- Dirt on the Top Edge or Back of the Paper92
- Image Center Does Not Align with the Original Center92
  - Spots in the Printed Objects92
Electric Problems93
Mechanical Problems96
Error Messages98
Send Error List103
Error Codes104
- Error Code104
- Table of General Classification105
Precautions for Assembly and Disassembly115
- Precautions115
- Drum115
- Toner115
- How to Tell a Genuine Kyocera Toner Container116
Outer Covers117
- Detaching and Refitting the Right Upper Cover and Rear Upper Cover R117
- Detaching and Refitting the Left Upper Cover and Rear Upper Cover L118
- Detaching and Refitting the Right Cover119
- Detaching and Refitting the Left Cover120
- Detaching and Refitting the Top Cover121
Optical Section124
- Detaching and Refitting the Scanner Unit124
- Detaching and Refitting the Laser Scanner Unit129
Fuser Section131
- Detaching and Refitting the Fuser Unit131
Pwbs132
- Detaching and Refitting the Main PWB132
- Detaching and Refitting the High Voltage PWB, Power Source PWB and FAX PWB (4 in 1 Model Only)135
Document Processor (4 in 1 20/21,25/26 Ppm Model, 3 in 1 25/26 Ppm Model Only)139
- Detaching and Refitting the Document Processor139
- Detaching and Refitting the DP Forward Roller and DP Paper Feed Roller141
- Detaching and Refitting the DP Separation Pad143
Others144
- Detaching and Refitting the Main Motor Unit144
- Direction of Installing the Principal Fan Motor150
Upgrading the Firmware151
Remarks on Main PWB Replacement156
Paper Feed/ Conveying Section157
- Cassette Paper Feed/ Paper Conveying Section157
- Manual Feed Section (25/26 Ppm Model Only)158
Drum Section160
Developer Section161
Optical Section162
- Scanner Unit162
- Laser Scanner Section163
Transfer/Separation Section166
Fuser Section167
Duplex Conveying/Eject Section169
Document Processor (DP)171
Electrical Parts Layout173
- Pwbs173
- Switches and Sensors175
- Others176
- Document Processor (3 in 1 25/26 Ppm Model, 4 in 1 20/21, 25/26 Ppm Model)177
Main PWB179
- In 1 25/26 Ppm Model, 4 in 1 20/21, 25/26 Ppm Model179
- In 1 20/21 Ppm Model186
Relay PWB PWB190
Power Source PWB192
FAX Control PWB194
Operation Panel PWB196
Maintenance Kits199
Procedure for Replacing Maintenance Kit200
- Checking the Components Included and Preparing the Paper-Feed Replacement Unit for Installation200
- Preparing the Machine202
- Detaching the Drum Unit204
- Detaching the Developer Unit205
- Detaching the Toner Disposal Box205
- Detaching and Refitting the Paper Feed Pulley and Lower Paper Feed Guide206
- Refitting the Toner Disposal Box210
- Refitting the Developer Unit210
- Refitting the Drum Unit211
- Detaching and Refitting the Transfer Roller212
- Notice after Replacing Maintenance Kit213
- Procedure for Only Replacing Drum Unit215
- Procedure for Only Replacing Developer Unit216
Cleaning the Machine218
- Interior of the Machine218
- Slit Glass Cover219
