2M4/2M5/2M6/2M7-1

1-6-2

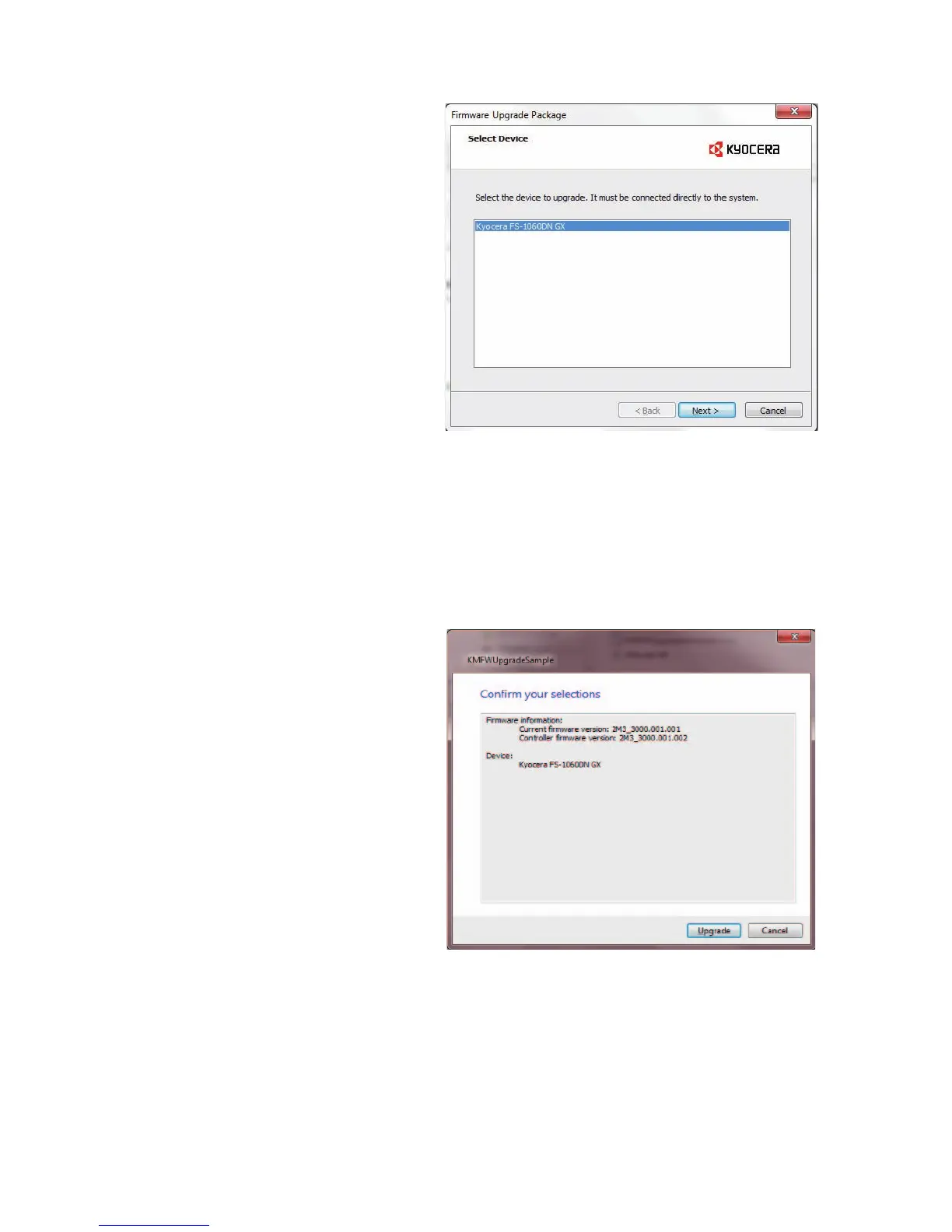

4. The user must select a device to con-

tinue.

* : Only devices that are supported by the

packaged firmware, and that are cur-

rently connected to the PC will be listed.

First device on the list will be selected

by default.

5. Press [Next].

Figure 1-6-3

6. Firmware version of the device and the

version of the upgrade file will be dis-

played.

7. Press [Upgarde] to execute upgrading.

Figure 1-6-4
