Kyocera FS-C8500DN Service Manual

2KA
1-4-1
1-4 Troubleshoo ting
1-4-1 Paper misfeed detection
(1) Paper misfeed indication
When a paper misfeed occurs, the machine immediately stops copying and displays the jam location on the operation
panel.
Paper misfeed counts sorted by the detection condition can be checked in maintenance item U903.
To remove paper jammed in the machine, open the left cover, pull the cassette out or pull the paper feed unit out.
To remove the jammed paper in optional document finisher, detach the finisher from the machine.
Paper misfeed detection can be reset by opening and closing the respective covers.

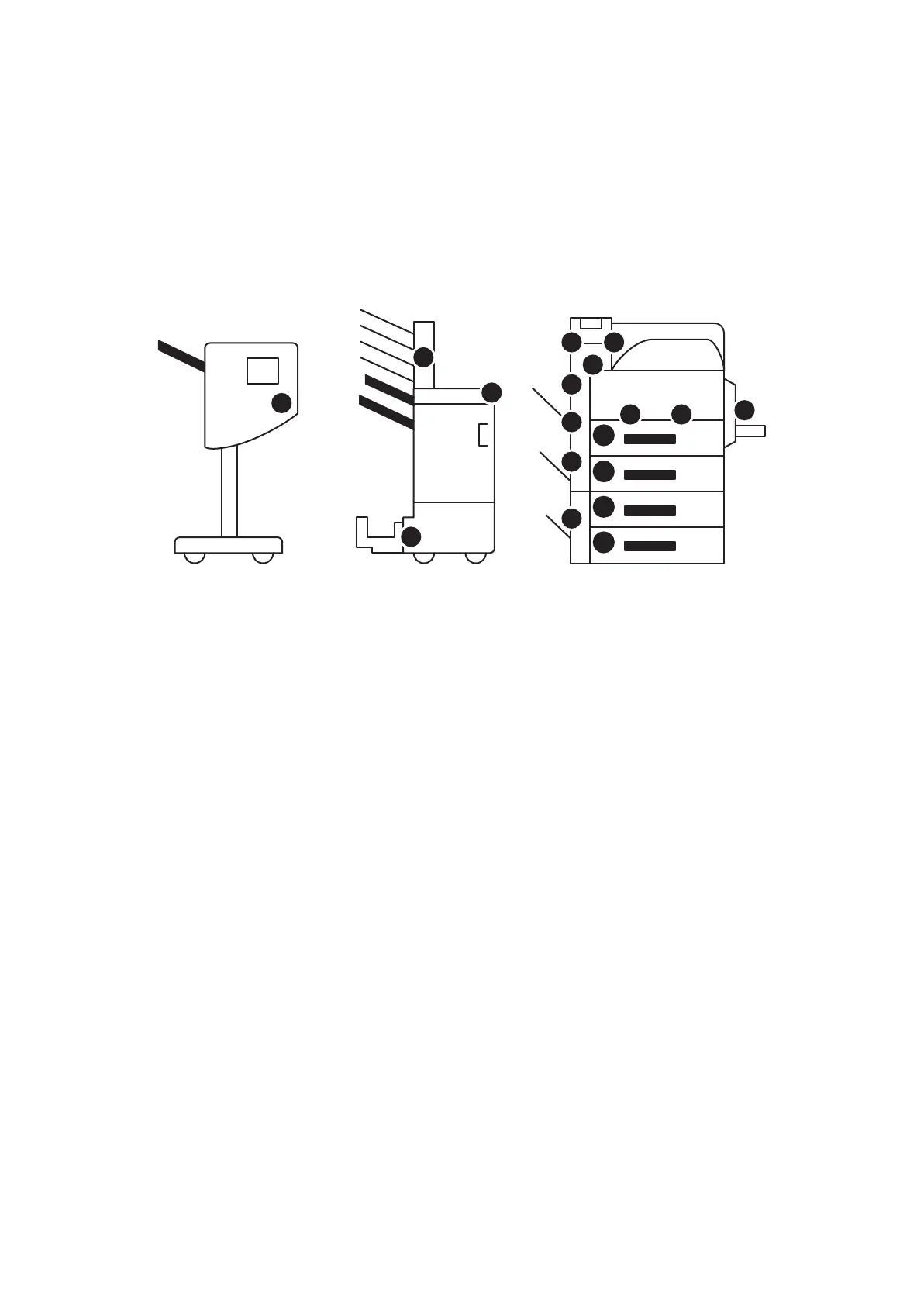

Figure 1-4-1
1
2
3
3
4
5
5
5
6
7
7
8
10
9
11
7
4
4
(1) Misfeed in cassette 1
(2) Misfeed in cassette 2
(3) Misfeed in cassette 3 or 4 (option)
(4) Misfeed in the MP tray or paper feed unit
(5) Misfeed in left cover 1,3 or 4
(6) Misfeed in the duplex section
(7) Misfeed in the fuser section
(8) Misfeed in 3000-sheet document finisher (option)
(9) Misfeed in center-folding unit (option)
(10) Misfeed in mailbox (option)
(11) Misfeed in document finisher (option)

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
