2-1-8 Duplex section
(1) Duplex section
In duplex mode, after printing on to the reverse face of the paper, the paper is reversed in the feedshift section and con-
veyed to the duplex section. The paper is then conveyed to the paper feed section by the duplex B roller and duplex A
roller.

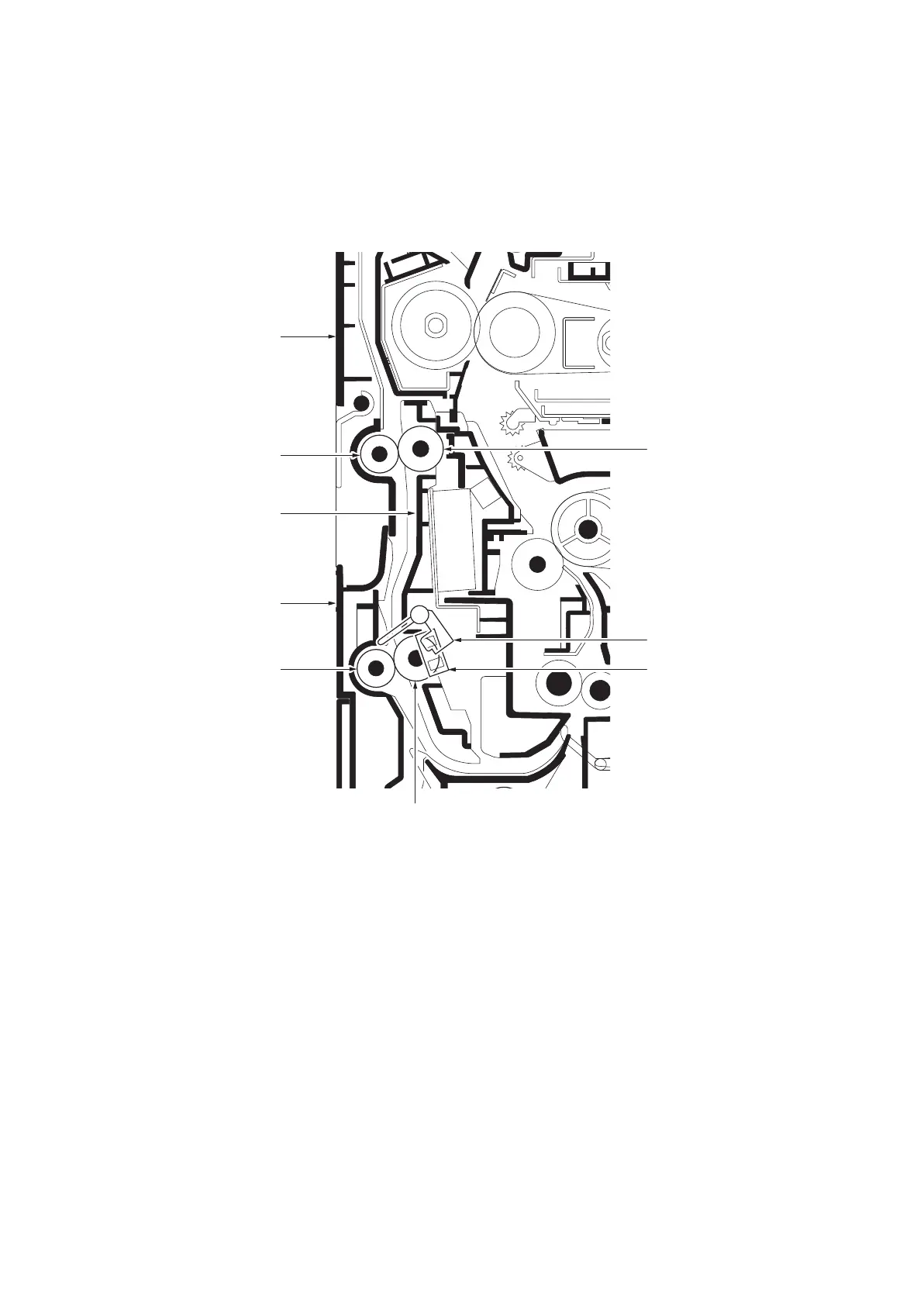

Figure 2-1-21 Duplex section
1
4
8
7
2
3
5
6
3
(1) Duplex A roller
(2) Duplex B roller
(3) Middle pulley
(4) Duplex frame
(5) Duplex switch (DUSW)
(6) Actuator (duplex switch)
(7) Left cover 1
(8) Left cover 2
