Kyocera FS-C8500DN Service Manual

2KA
2-1-12
2-1-5 Transfer/separation section
(1) Primary transfer section
There are four primary transfer rollers opposed to each color drum inside of transfer belt, toner on the drum is transferred
to transfer belt by impressed bias voltage (minus). Remaining toner on the transfer belt is cleaned by fur brush.

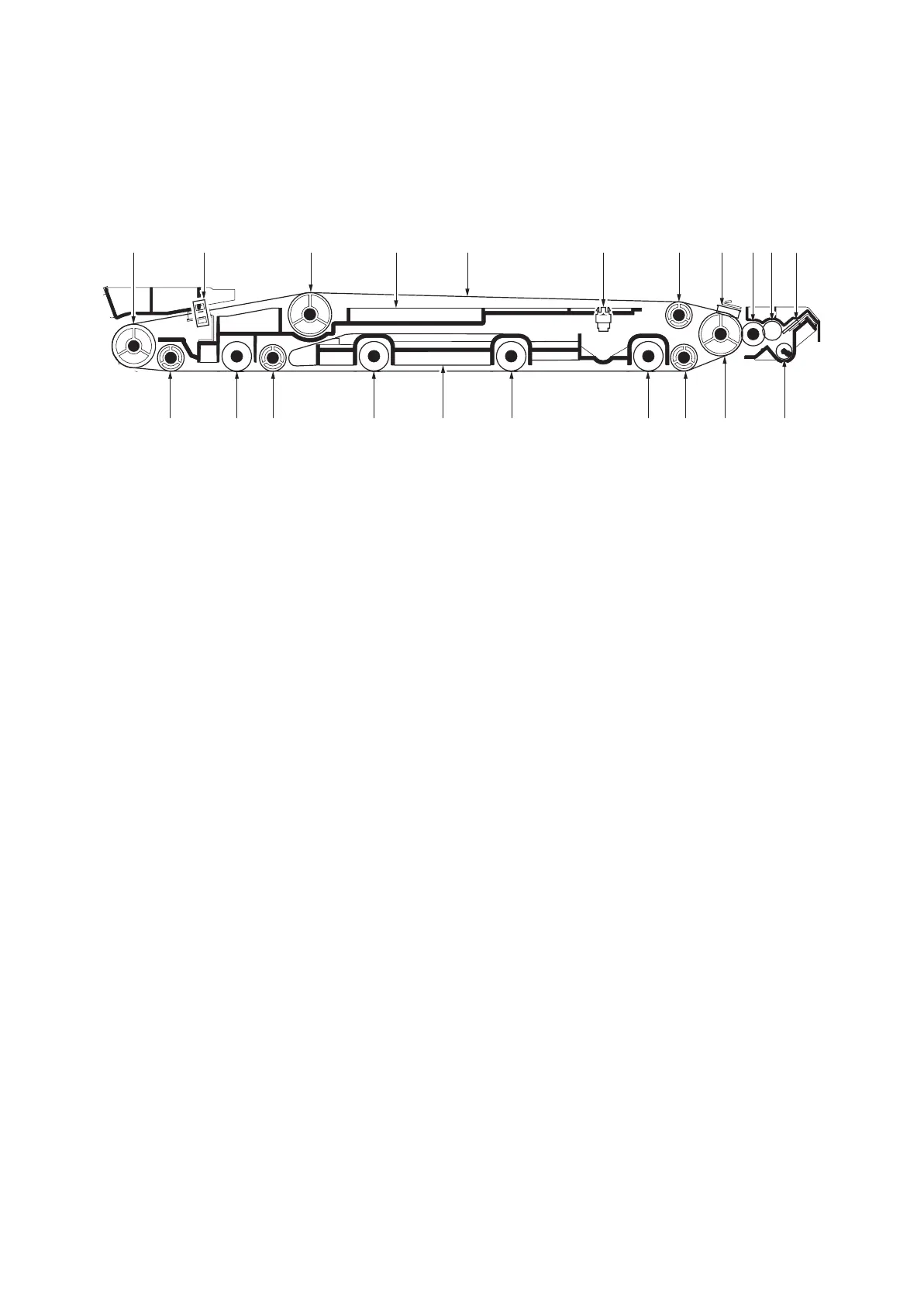

Figure 2-1-13 Primary transfer section
8 131011 9 16 1715
18
14
2
6 2 5 412 3 2 7 19
1
(1) Drive roller
(2) Backup roller
(3) Primary transfer roller M
(4) Primary transfer roller C
(5) Primary transfer roller Y
(6) Primary transfer roller K
(7) Tension roller
(8) Sensor belt roller
(9) Idle roller
(10) Transfer belt
(11) Transfer frame
(12) Transfer inner frame
(13) Color release sensor (CRS)
(14) Transfer position sensor (TPS)
(15) Pre brush
(16) Fur brush
(17) Sweep roller
(18) ICL blade
(19) ICL screw

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
