Kyocera FS-C8500DN - (4) Direction of installing the principal fan motors

2KA
1-5-42
(4) Direction of installing the principal fan motors
When detaching or refitting the fan motors, be careful of the airflow direction (intake or exhaust).

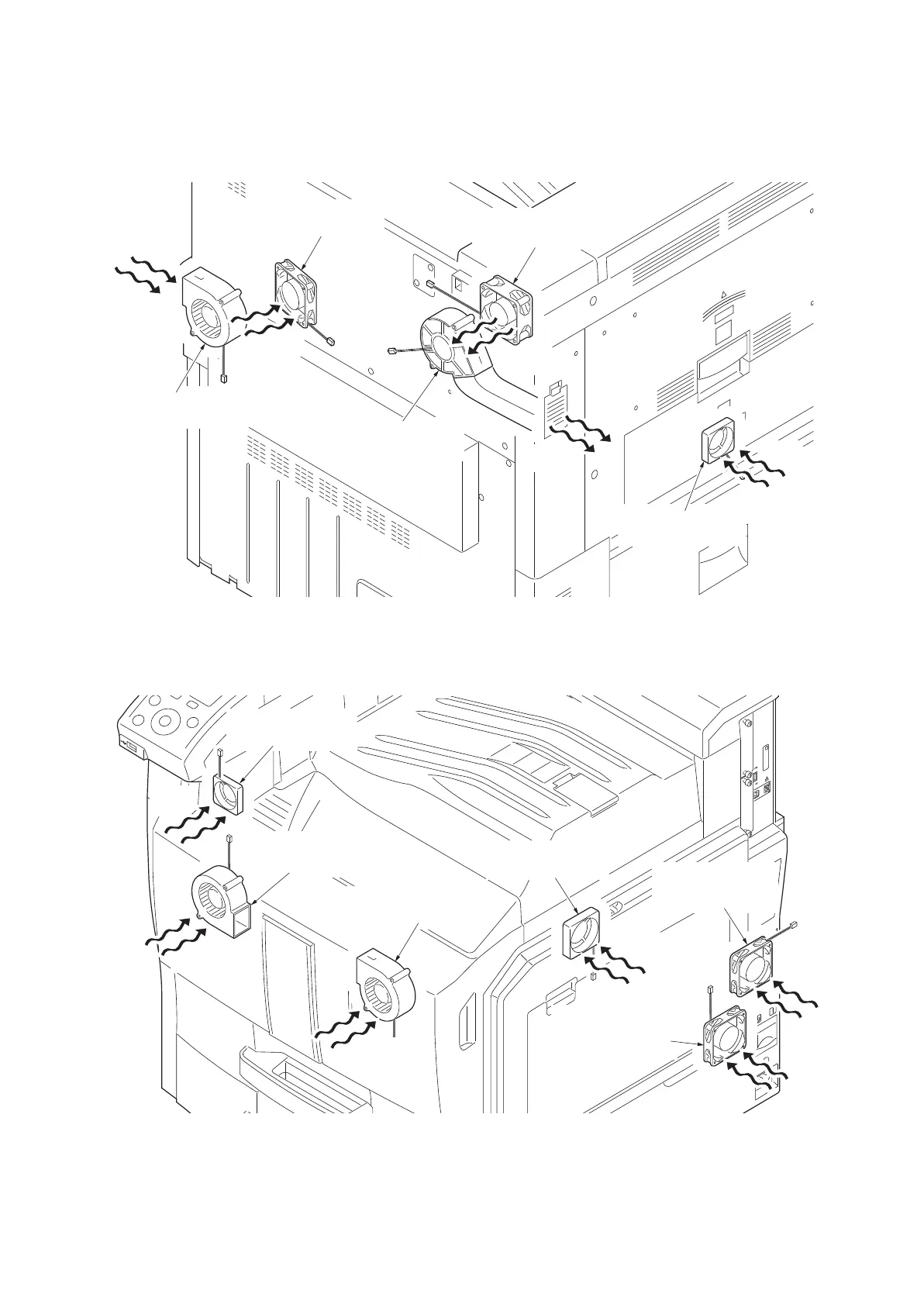

Figure 1-5-71 Machine rear right
Figure 1-5-72 Machine front left
Exhaust
Intake
Intake
Exhaust
Intake
Eject fan motor
(Rating label: outside)
Loop fan motor
(Rating label: inside)
Fuser fan motor
(Rating label: outside)
Main fan motor
(Rating label: inside)
Developing fan motor 5
(Rating label: inside)
B1
A2
DP
Front fan motor
(Rating label: inside)
Transfer fan motor 4
(Rating label: inside)
Intake
Intake
Intake
Intake
Intake
Intake
Power source
fan motor 1
(Rating label: inside)
Power source
fan motor 2
(Rating label: inside)
Developing fan motor 1
(Rating label: inside)
Developing fan motor 2
(Rating label: inside)
