Kyocera FS-C8500DN - (2) Detaching and refitting the MP unit

2KA
1-5-6
(2) Detaching and refitting the MP unit
Follow the procedure below to replace the MP unit.
Procedure
1. Open the front cover.
2. Remove the right filter 1 and right filter 2.
3. Remove five screws and remove the right
cover.

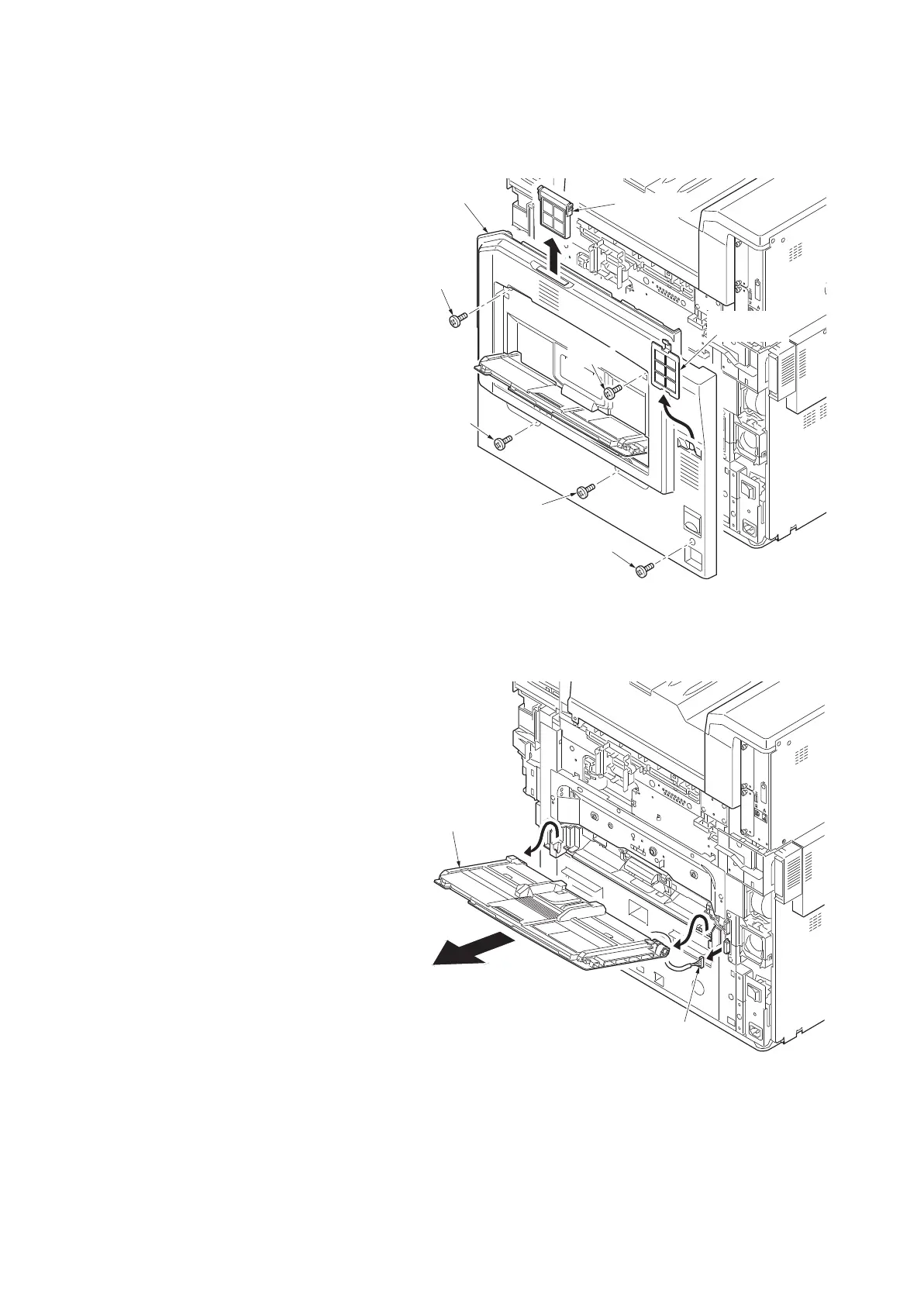

Figure 1-5-9
4. Remove one connector.
5. Remove the MP tray.
Figure 1-5-10
Screw
Screw
Screw
Screw
Right filter 1
Right filter 2
Screw
Right cover
MP tray
Connector
