Kyocera FS-C8500DN - 1-5-3 Optical section; (1) Detaching and refitting the laser scanner unit

2KA
1-5-11
1-5-3 Optical section
(1) Detaching and refitting the laser scanner unit
Follow the procedure below to replace the laser scanner unit.
Procedure
1. Remove the left cover 1 (see page 1-5-37).

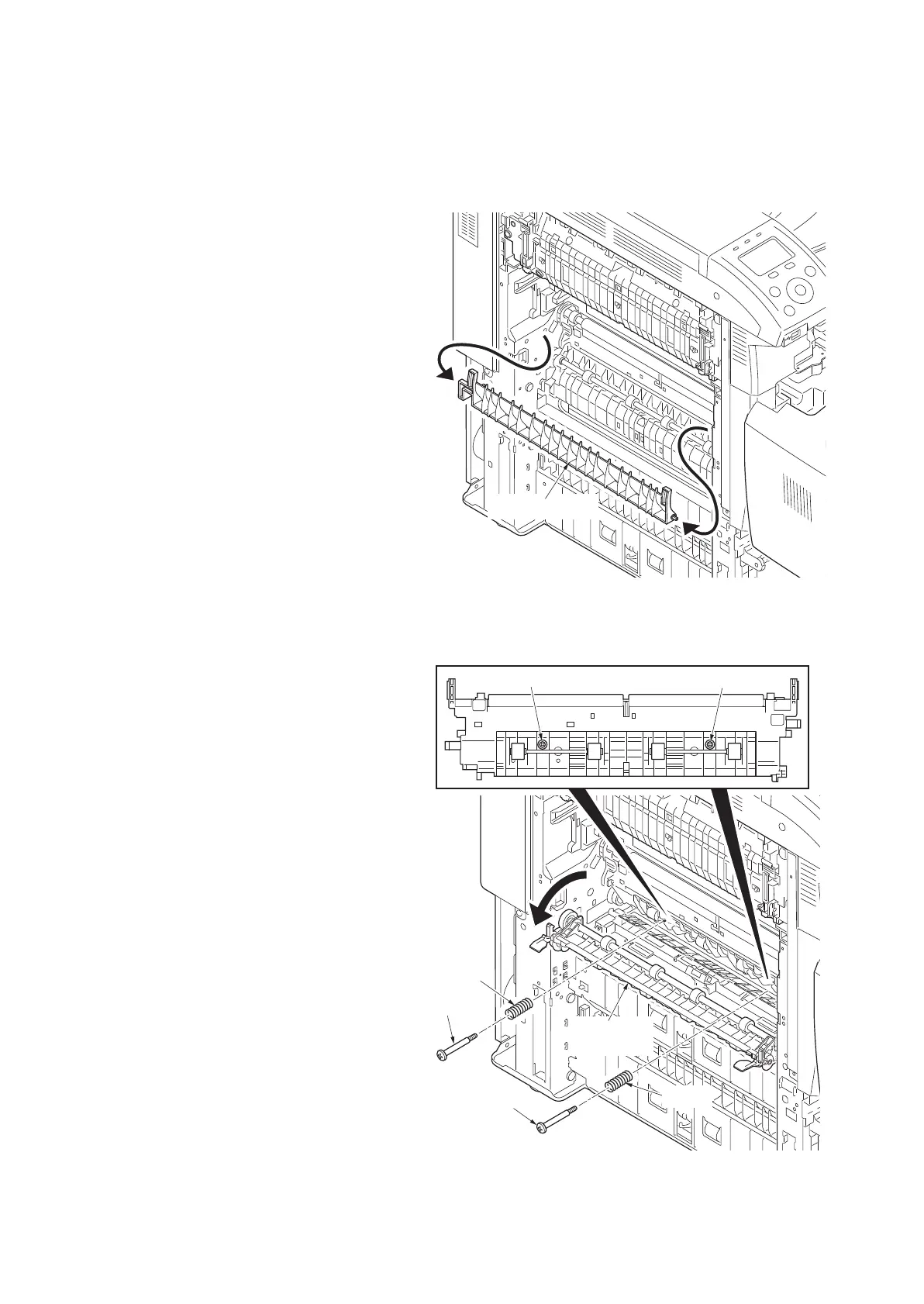

2. Remove the conveying guide.
Figure 1-5-17
3. Open the middle guide unit.
4. Remove two pins and springs.
Figure 1-5-18
Conveying guide
Middle guide
unit
Pin
Pin (spring)
Pin (spring)
Spring
Spring
Pin
