11. Remove the inserted parts and then remove
the MP separation pulley from the separa-
tion pulley holder.
12. Clean or replace the MP forwarding, MP
paper feed and MP separation pulleys.
13. Refit the MP separation pulley to the sepa-
ration pulley holder.
14. Refit the MP forwarding and MP paper feed
pulleys to the pulley unit.
15. Refit the separation pulley holder and pulley
unit.
16. Refit the MP unit.

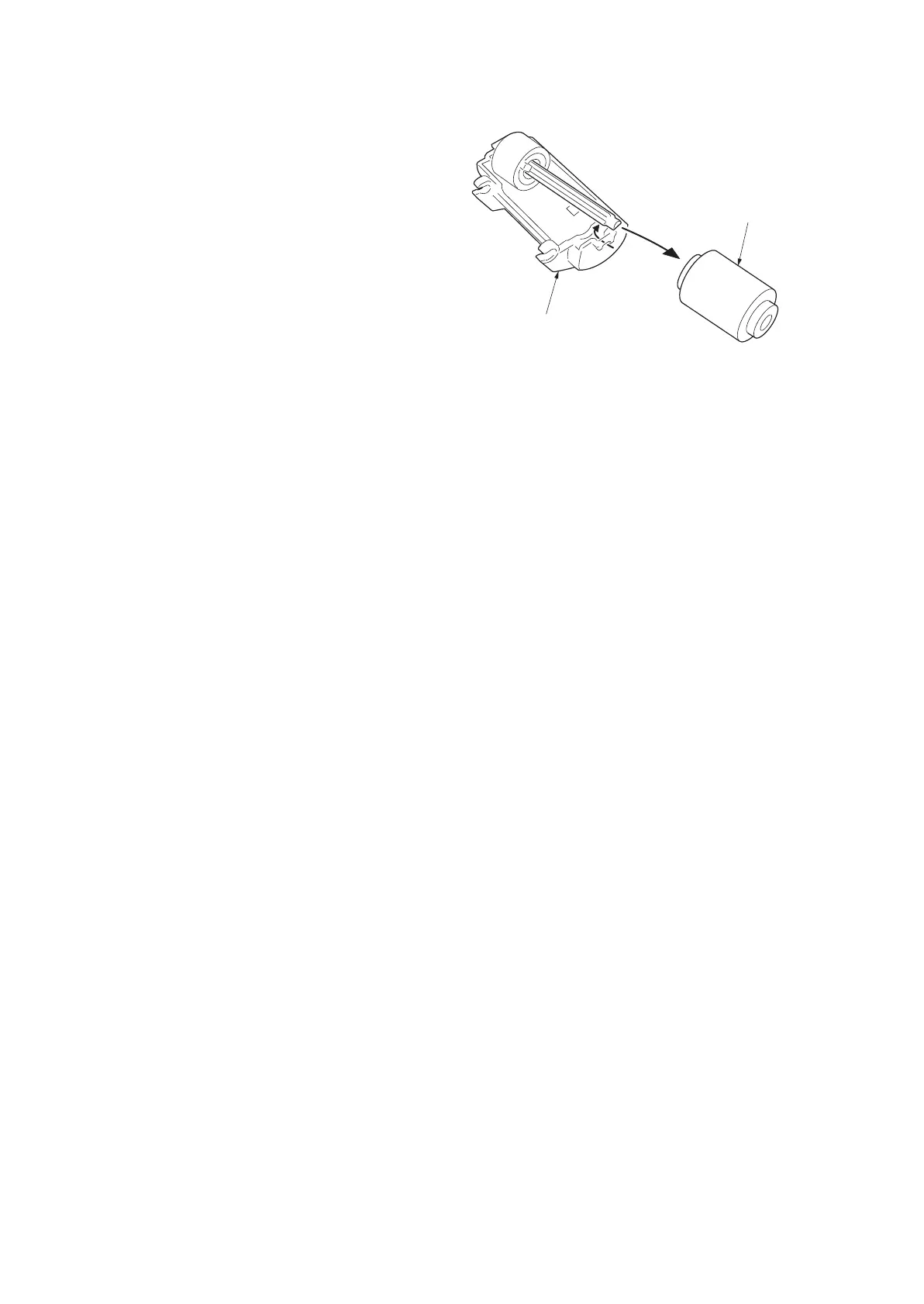

Figure 1-5-16
17. When the MP forwarding pulley, MP paper
feed pulley or the MP separation pulley is
replaced, perform maintenance mode U903
(clearing the jam counter) (see page 1-3-
96).
Separation pulley holder
MP separation pulley
