Kyocera FS-C8500DN Service Manual

2KA
1-5-9
6. Remove the inserted parts and then remove
the MP forwarding pulley from the pulley
unit.
7. Remove two stop rings and bushes.
8. Remove the MP paper feed pulley from the
MP paper feed shaft.

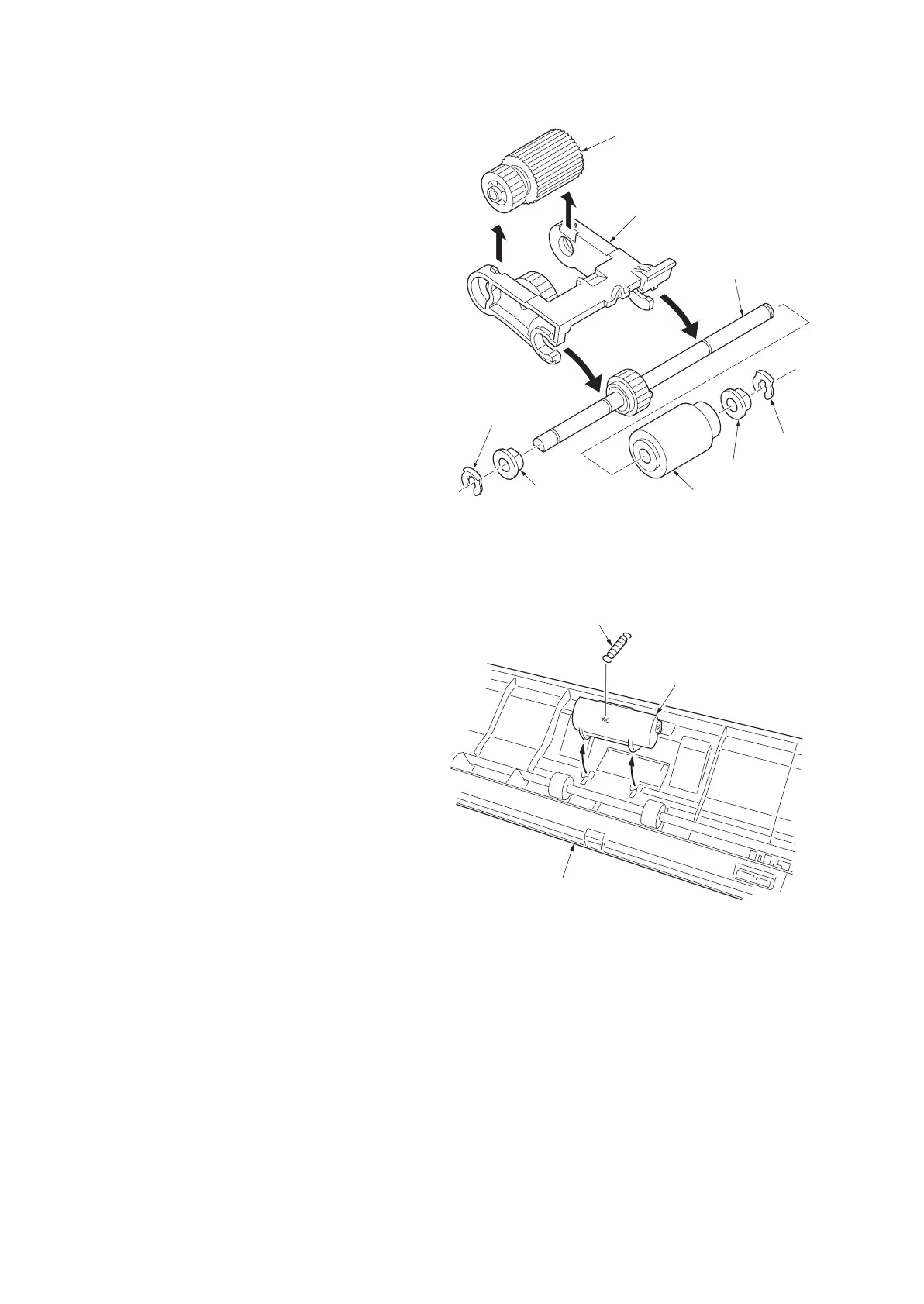

Figure 1-5-14
Removing the MP separation pulley
9. Turn the MP unit over and remove the
spring.
10. Remove the separation pulley holder from
the MP unit.
Figure 1-5-15
MP forwarding pulley
Pulley unit
MP paper feed shaft
Bush
MP paper feed pulley
Bush
Stop ring
Stop ring
Spring
Separation
pulley holder
MP unit
