Kyocera FS-C8500DN Service Manual

2KA-2
2-4-7

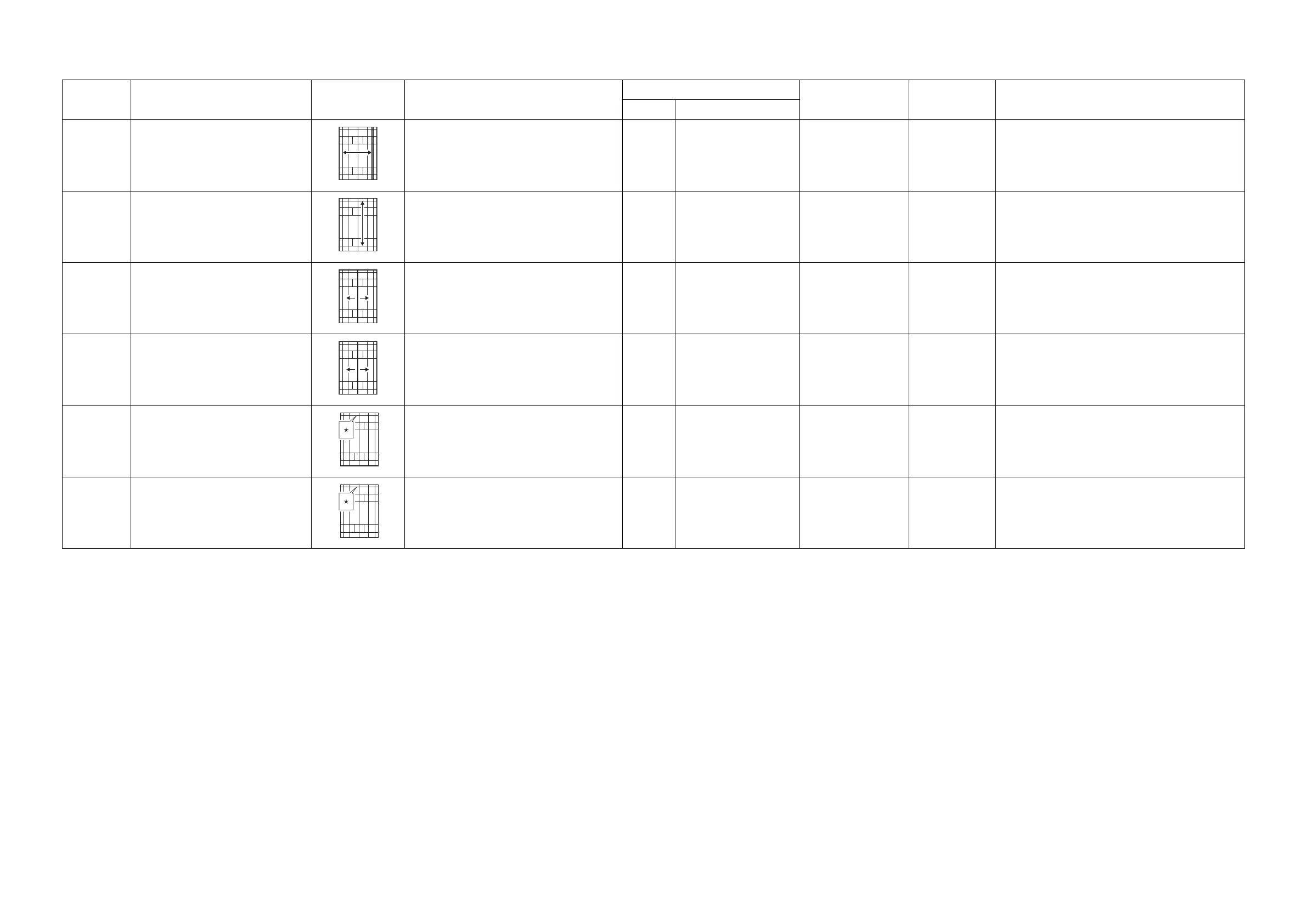

Chart of image adjustment procedures
Adjusting
order
Item Image Description
Maintenance mode
Original Page Remarks
Item No. Mode
1
Adjusting the magnification in the
main scanning direction (printing
adjustment)
Polygon motor speed adjustment U053 Polygon U053 test pattern P.1-3-31
2
Adjusting the magnification in the
auxiliary scanning direction (print-
ing adjustment)
Transfer motor speed adjustment U053 TC U053 test pattern P.1-3-31
3
Adjusting the center line of the MP
tray (printing adjustment)
Adjusting the LSU print start timing U034 MPT U034 test pattern P.1-3-26 To make an adjustment for duplex printing, select
Dup.
4
Adjusting the center line of the cas-
settes (printing adjustment)
Adjusting the LSU print start timing U034 Cas 1
Cas 2
Cas 3
Cas 4
U034 test pattern P.1-3-26 Cassette 1: select Cas 1
Cassette 2: select Cas 2
Cassette 3: select Cas 3
Cassette 4: select Cas 4
5
Adjusting the leading edge registra-
tion of the MP tray (printing adjust-
ment)
Registration motor turning on timing (sec-
ondary paper feed start timing)
U034 MPT U034 test pattern P.1-3-24 To make an adjustment for duplex printing, select
Dup.
6
Adjusting the leading edge registra-
tion of the cassette (printing adjust-
ment)
Registration motor turning on timing (sec-
ondary paper feed start timing)
U034 Cas U034 test pattern P.1-3-24

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
