5. Remove the MP unit (see page 1-5-6).
6. Remove two screws and then remove the
LSU right frame.

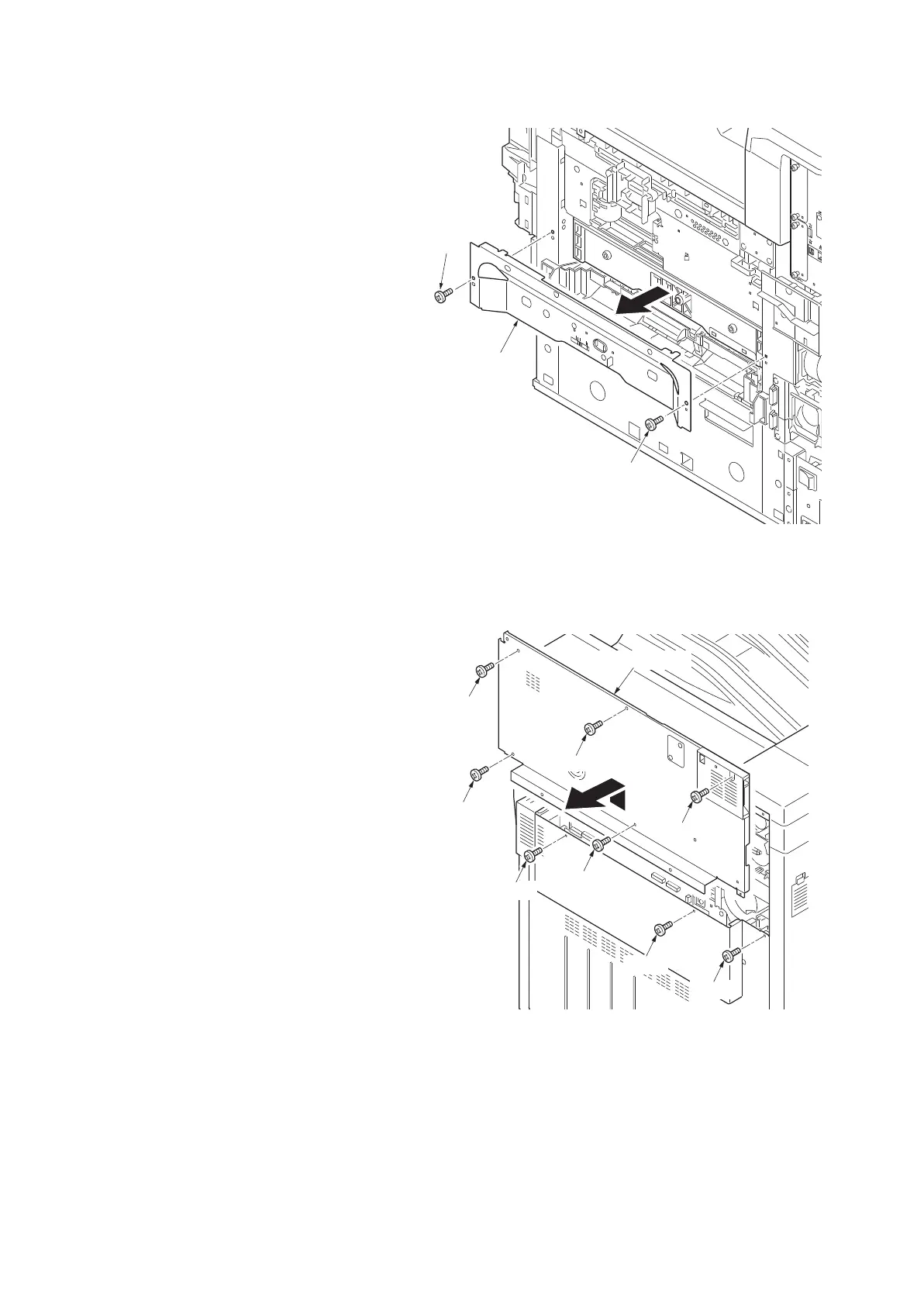

Figure 1-5-19
7. Remove eight screws and then remove the
rear middle cover.
Figure 1-5-20
Screw
Screw
LSU right frame
Screw
Screw
Screw
Rear middle cover
Screw
Screw
Screw
Screw
Screw
