Kyocera FS-C8500DN - Page 235

2KA
1-5-13

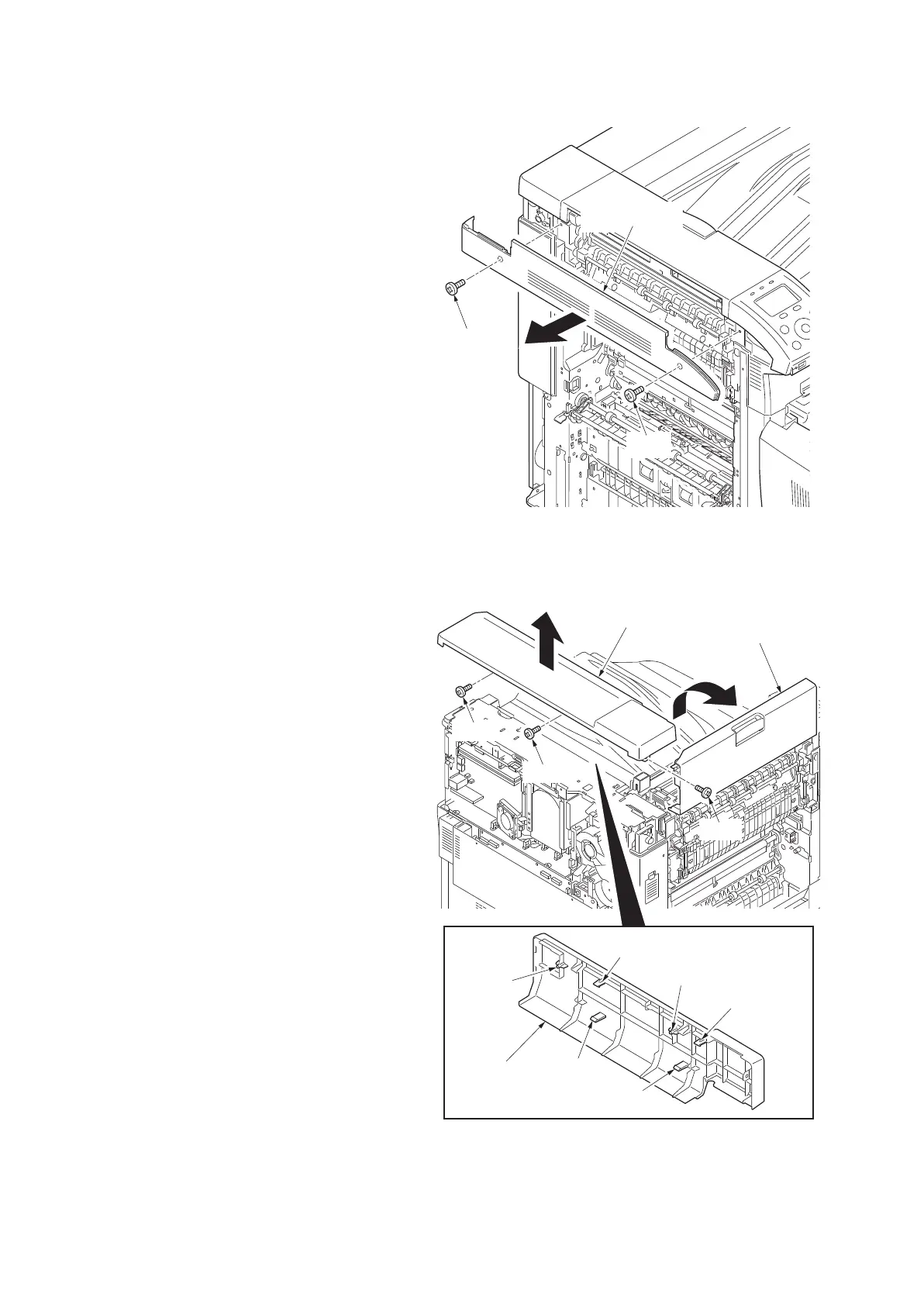

8. Remove two screws and then remove the
left upper cover.
Figure 1-5-21
9. Open the eject cover.
10. Remove three screws.
11. Release four hooks and two bothes and
then remove the rear upper cover.
Figure 1-5-22
Screw
Screw
Left upper cover
Screw
Screw
Hook
Hook
Hook
Hook
both
both
Rear upper cover
Screw
Eject cover
Rear upper cover
