12. Remove the connector.
13. Remove the relay connector.
14. Release wire saddle 1 and 2, and then
remove the wire.

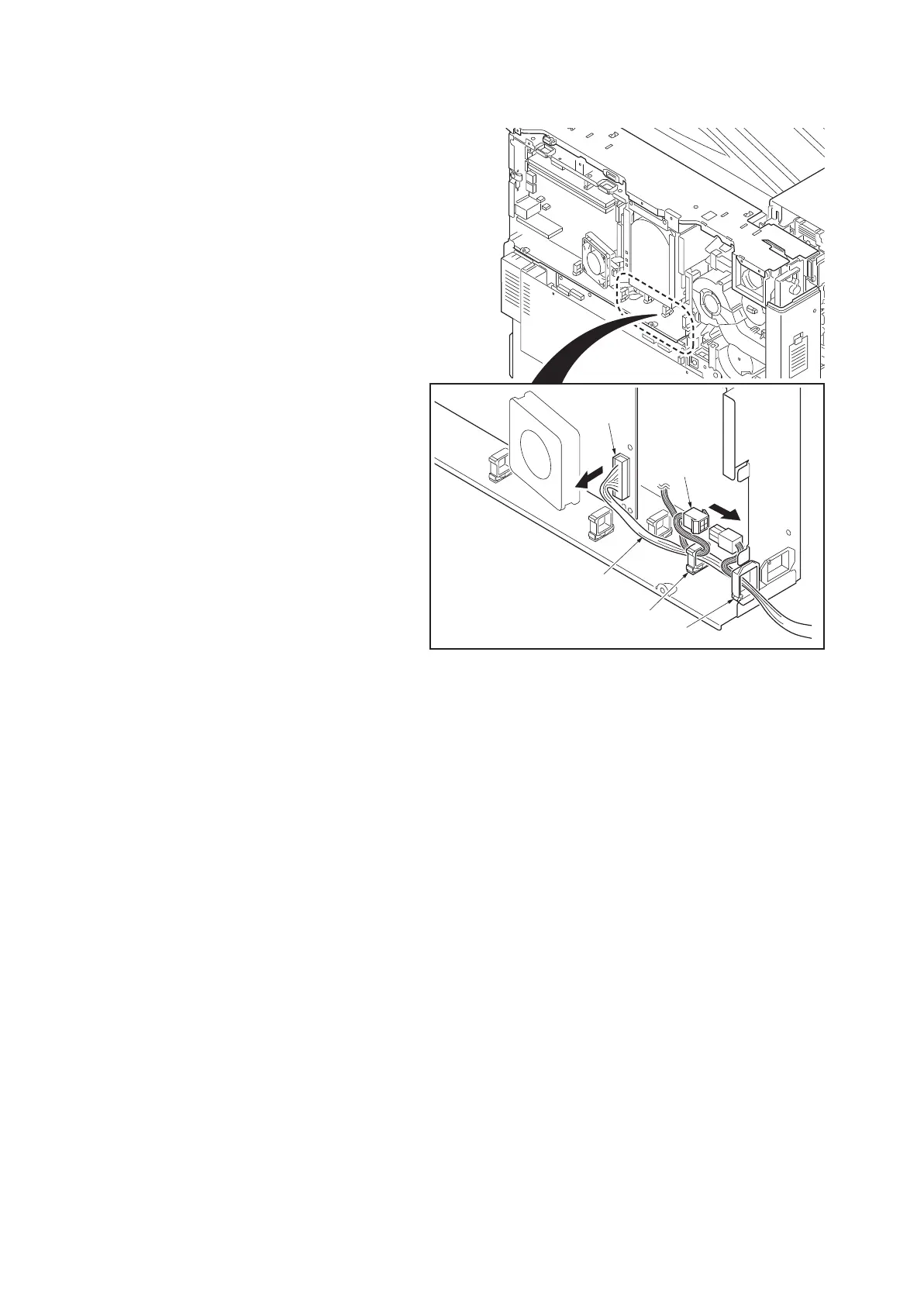

Figure 1-5-23
Relay
connector
Connector
Wire saddle 1
Wire saddle 2
Wire
