Kyocera FS-C8500DN Service Manual

2KA
1-1-5

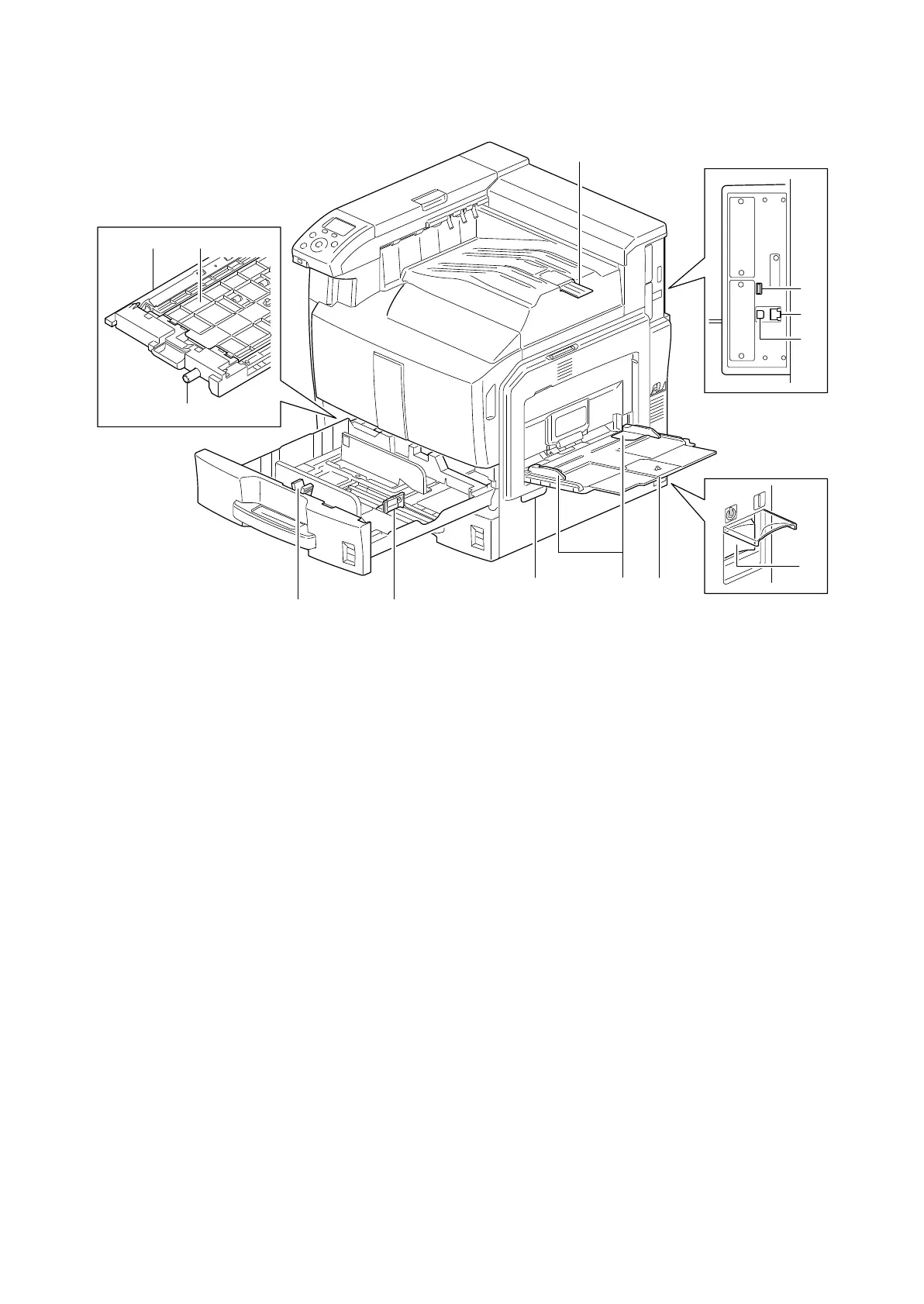

Figure 1-1-3
36
37
38
30
29
27
35
28
31
34 32
39
33
27. Paper feed unit cover
28. Paper feed unit
29. Knob
30. Paper width adjusting tab
31. Paper length guide
32. MP tray (multi-purpose tray)
33. Paper width guides
34. Handles
35. Paper stopper
36. USB port
37. Network interface connector
38. USB interface connector
39. Main power switch

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
