Kyocera FS-C8500DN Service Manual

2KA
1-5-30
5. Remove the cut washer, bearing, stop ring,
gear, pin, transfer stopper, transfer bush and
argent transfer spring from the transfer roller
rear.
Remove the cut washer, bearing, transfer
stopper, transfer bus and black transfer
spring from the transfer roller front.
6. Check or replace the transfer roller and refit
all the removed parts.

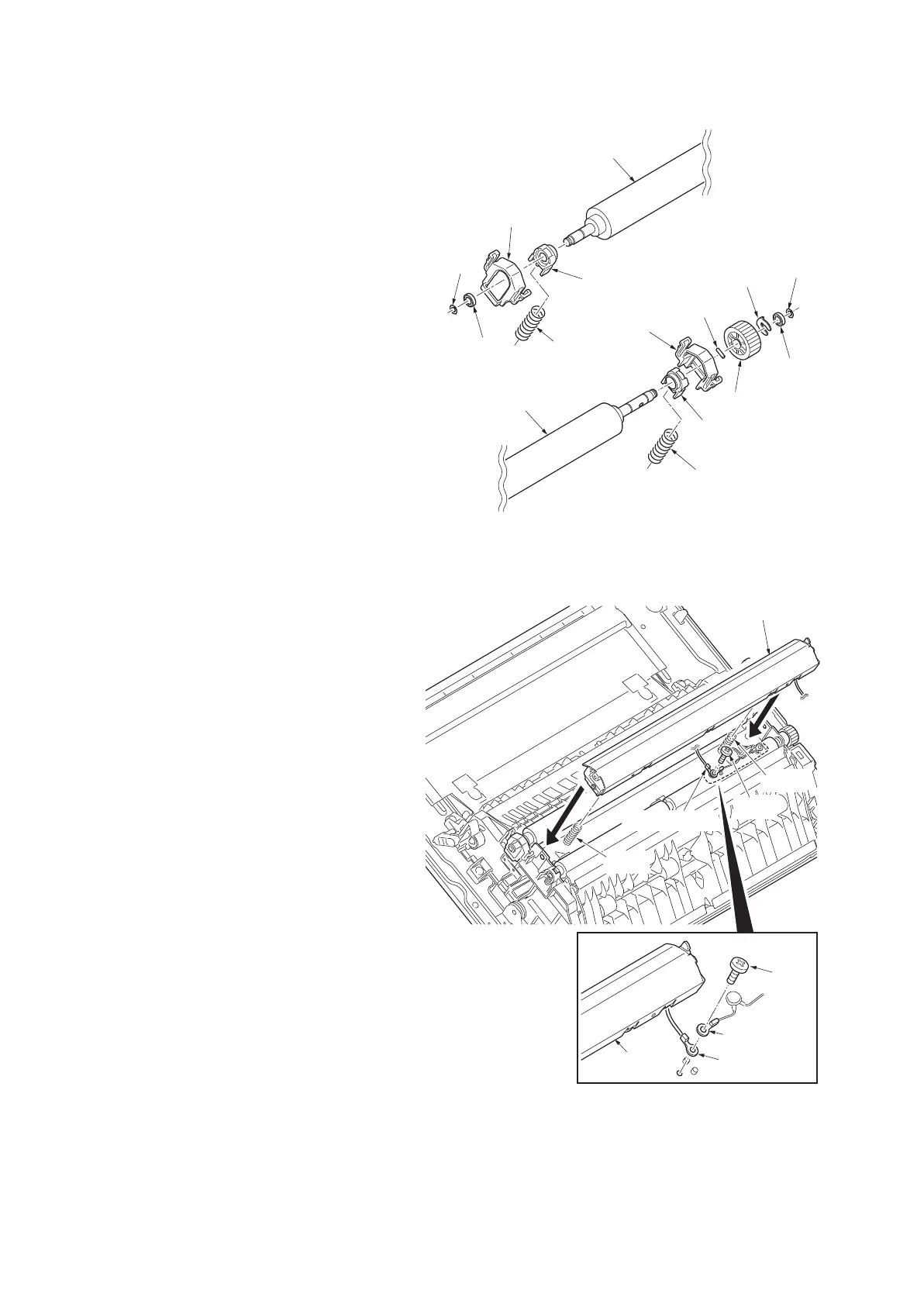

Figure 1-5-51
7. Push in the left transfer guide to refit the
guide in position.
Caution in refitting left transfer guide
The ground terminal and the varistor termi-
nal must be tightened together with a screw.
Make sure that the two springs on the left
transfer guide are caught with the protru-
sions on the paper conveying unit.
8. When the transfer roller is replaced with a
new one, carry out the following procedure.
9. Perform maintenance mode U127 (clearing
the transfer counter) (see page 1-3-49).
10. Perform the following image adjustment.
1)Color Calibration
2)Color Registration
Figure 1-5-52
Transfer spring (argent)
Bearing
Bearing
Gear
Pin
Cut
washer
Cut
washe
r
Stop ring
Transfer
stopper
Transfer bush
Transfer bush
Transfer roller
Transfer roller
Transfer
spring (black)
Transfer
stopper
Left transfer
guide
Ground terminal
Varistor terminal
Screw
Ground terminal
Screw
Left transfer guide
Spring
Spring

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
