Kyocera FS-C8500DN - Page 273

2KA
2-1-5

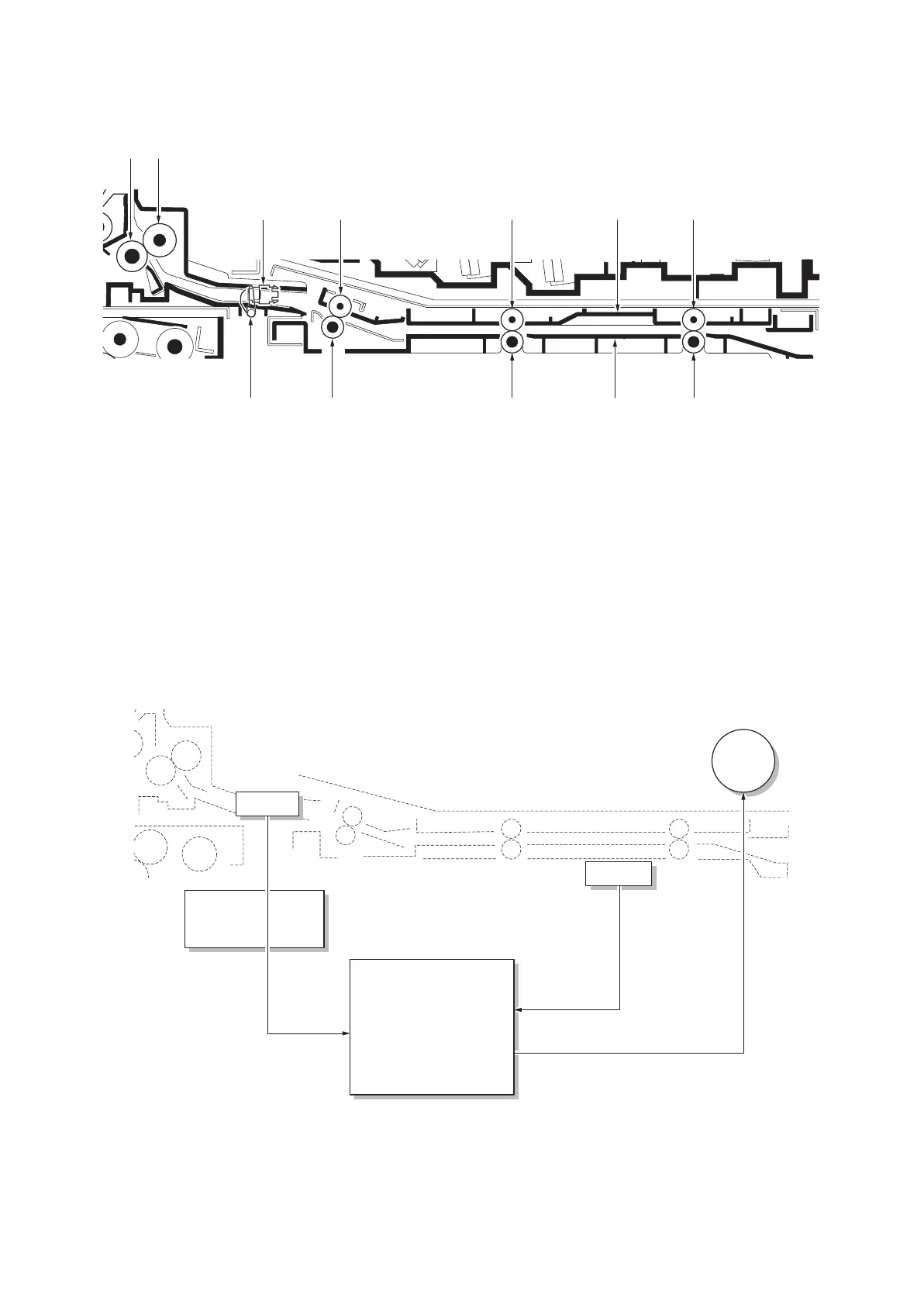

Figure 2-1-5 MP tray paper feed section (2)
Figure 2-1-6 MP tray paper feed section block diagram (2)
62
3
1458
667
109
(1) MP paper conveying base
(2) MP paper conveying cover
(3) MP paper conveying roller 1
(4) MP paper conveying roller 2
(5) MP paper conveying roller 3
(6) MP paper conveying pulley
(7) MP paper conveying switch
(MPPCSW)
(8) Actuator
(MP paper conveying switch)
(9) Middle roller
(10) Middle pulley
MPCUSW
MPM
MPPCSW
EPWB
FPWB
YC20-B5
YC10-B1
YC24-3
MPF2 JAM
MPF UNIT SET
MPF_MOT_DR
