6. Fasten the cassette heater wires to eight
wire saddles.
7. Connect two connectors of cassette heater
wires to each connector of the machine.
8. Refit the connector cover.
9. Refit the cassette 1 and 2.

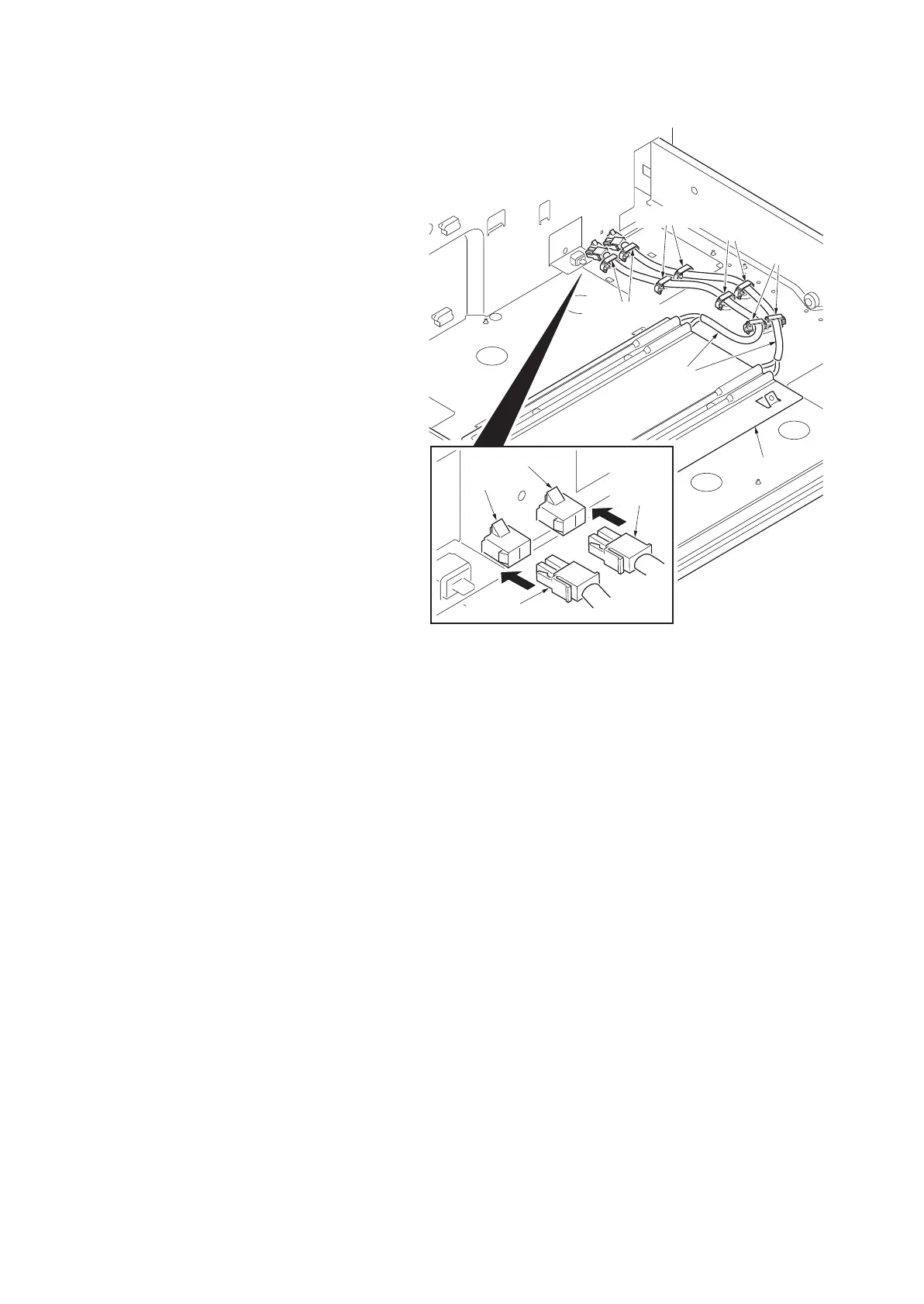

Figure 1-2-13
10. Turn the main power switch on and enter the
maintenance mode.
11. Run maintenance item U327 and select
“Mode” and set “M2”.
Cassette heater
Connector
Connector
Connector
Connector
Wire saddles
Cassette heater
wires
Wire saddles
Wire saddles
Wire saddles
