5. Remove two screws and remove the scan-
ner right cover.
6. Remove the platen.

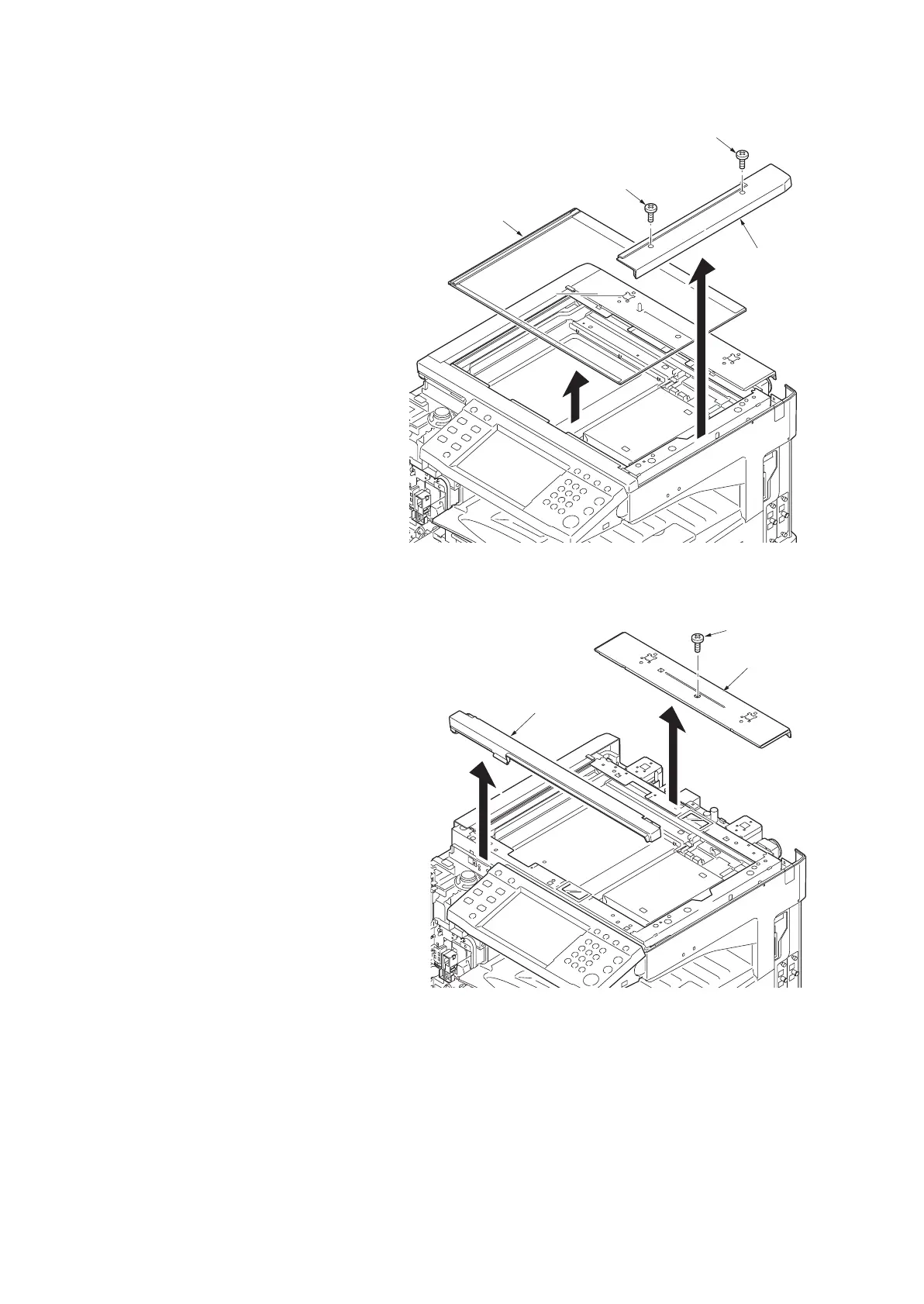

Figure 1-5-37
7. Remove the scanner front cover.
8. Remove the screw and remove the scanner
rear cover.
Figure 1-5-38
Screw
Platen
Scanner right cove
r
Screw
Scanner front cover
Scanner rear cove
r
Screw
