Kyocera TASKalfa 3510i - Page 82

2NL/2P8
1-2-58

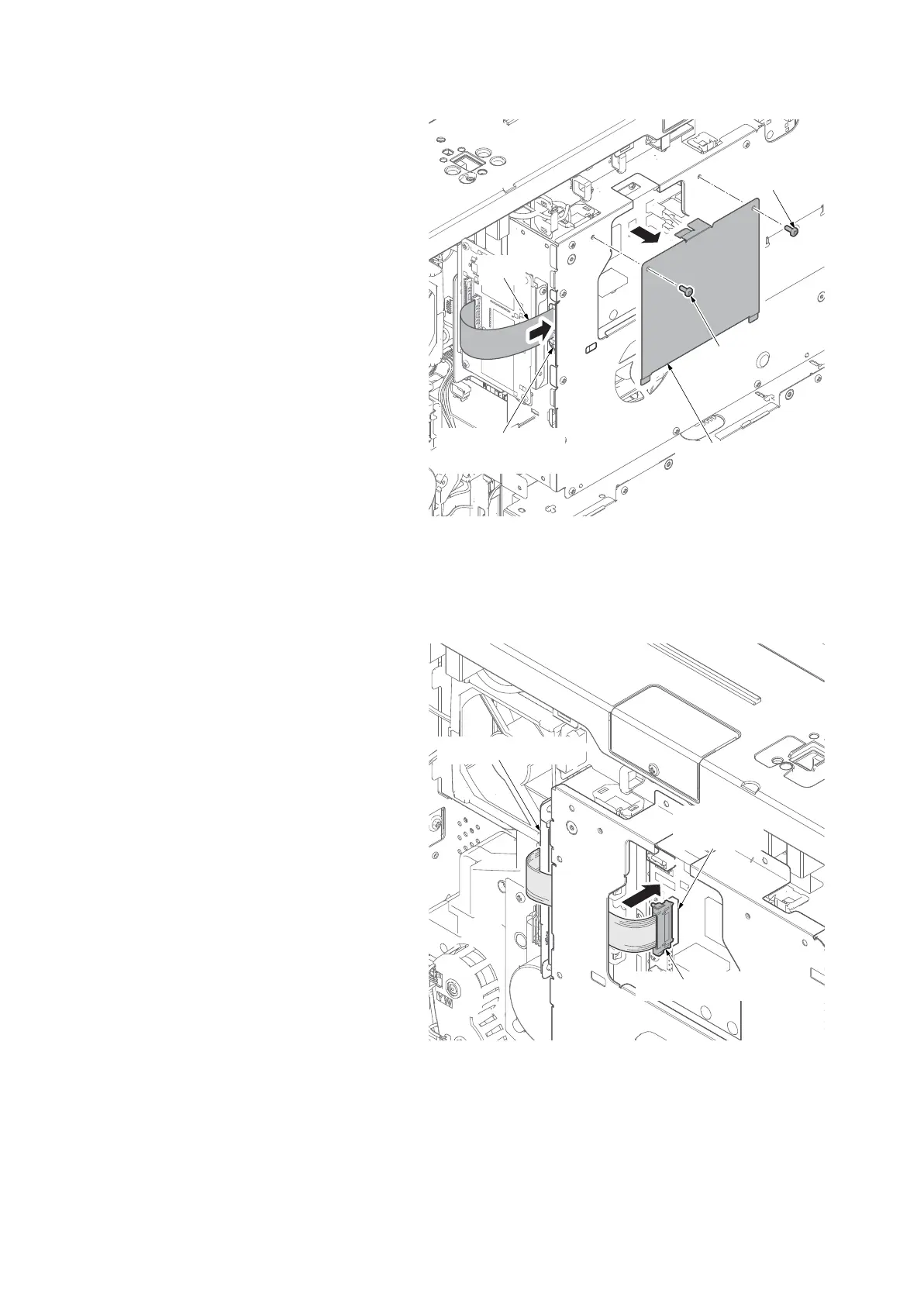

9. Remove two screws and remove the
DP PWB cover.
10. Pass the FFC through the aperture
section of the controller box.
Figure 1-2-80
11. Connect the main-circuit PWB with the
FFC.
Main PWB (YC34)
12. Refit the DP PWB cover and the rear
cover.
Figure 1-2-81
Controller box
aperture part
FFC
Screw
Screw
DP PWB cover
FFC connector
Copy guard PWB
Main PWB
YC34
