Kyocera TASKalfa 3510i - When DP Junction PWB Is Used

2NL/2P8
1-2-59
[When DP junction PWB is used]

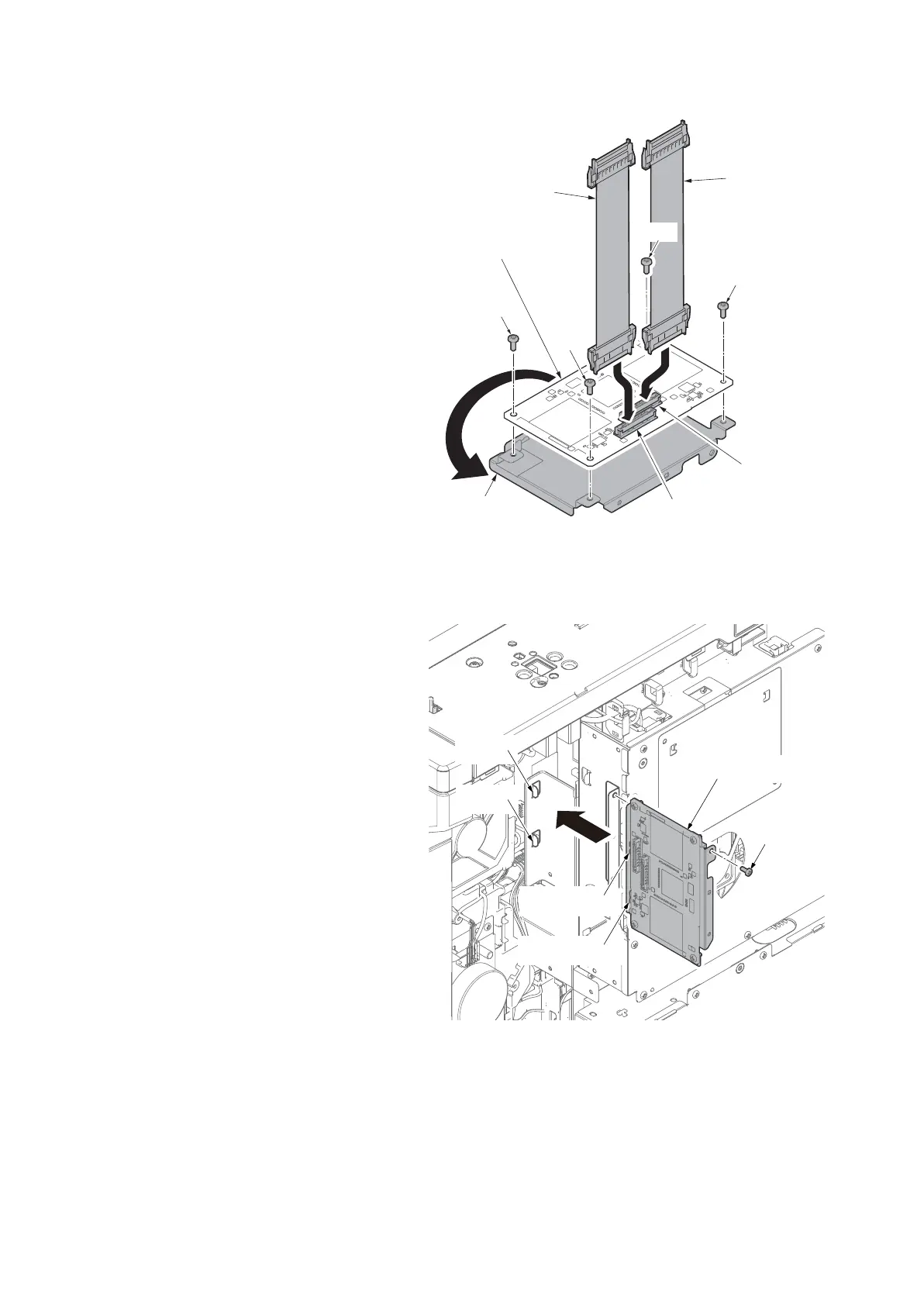

13. Remove four screws and then refit it
after rotating the mount plate 180
degrees.
14. Insert the FFC into the copy guard PWB
until it clicks in.
WIth a DP junction PWB:
The FFCs is used at YC2 (serigraphed
on MAIN) and YC1 (Serigraphed on
DP).
Figure 1-2-82
15. Fix the copy guard PWB by inserting
two aperture parts to two hooks and
using the screw M3 x 6.
Figure 1-2-83
Copy guard PWB
YC2(MAIN)
FFC(long)
Screw
Screw
Screw
Mount plate
Screw
YC1(DP)
FFC(short)
Screw
Copy guard PWB
Aperture part
Aperture part
Hook
Hook
