Procedure
1. Remove seven screws.
2. Pull the rear cover upwards and then
release three hooks.
3. Remove the rear cover.
4. Cut the aperture part (left side) of the
rear cover using nippers etc.

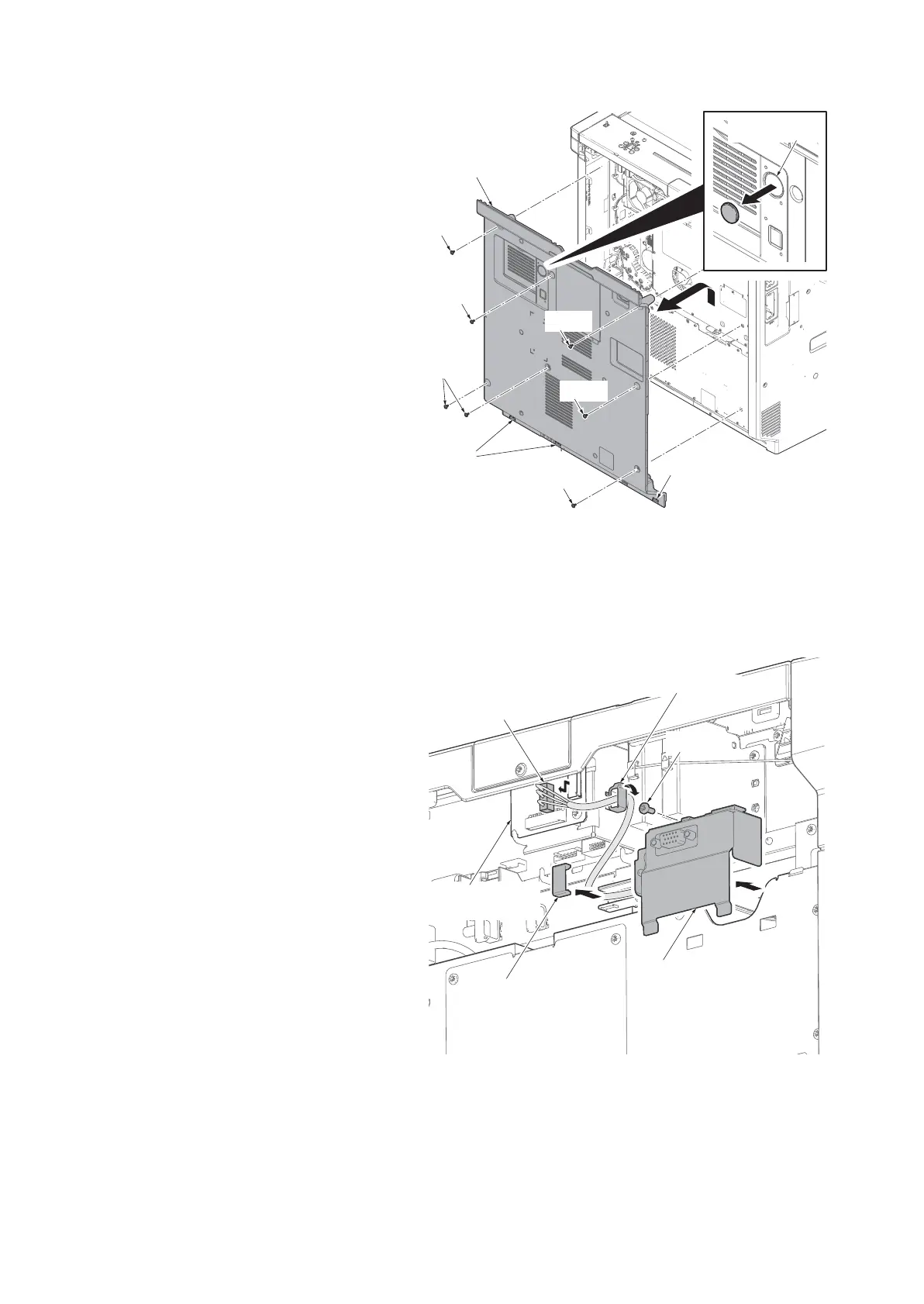

Figure 1-2-88
5. Release the wire saddle and the guide
hook and then remove the connector
from the DP relay PWB.
6. Remove the screw and remove the DP
connector mounting plate.
Figure 1-2-89
Screw
Screw
Screws
Rear cover
Hooks
Hook
Screw
Screw
Screw
Aperture part
Screw
Guide Hook
DP connector
mounting plate
Wire saddle
DP relay PWB
Connector
