Lab.gruppen PLM Series User Manual

Front Panel Interface
43
PLM Series Operation Manual rev 1.1.9
Output 4: V - Voltage Meter I - Current Meter P - Power Meter L - Gain Reduction Meter
▸ The Voltage Meter (V) indicates the PLM’s power output stage voltage relative to its clip level
▸ The Current Meter (I) indicates the current the power output stage is driving into its load, relative to the
maximum permissible current the xed CPL allows
▸ The Power Meter (P) indicates the instantaneous output power being developed in the load relative to
the PLMs maximum output power capability.
▸ The Gain Reduction Meter (L) indicates the degree of limiting being applied by the PLM ISVPL and/or
the Lake LimiterMax.
7.10.3 Temperature View
Temperature View provides information about the current operating temperatures within the PLM and the
connected loudspeakers.

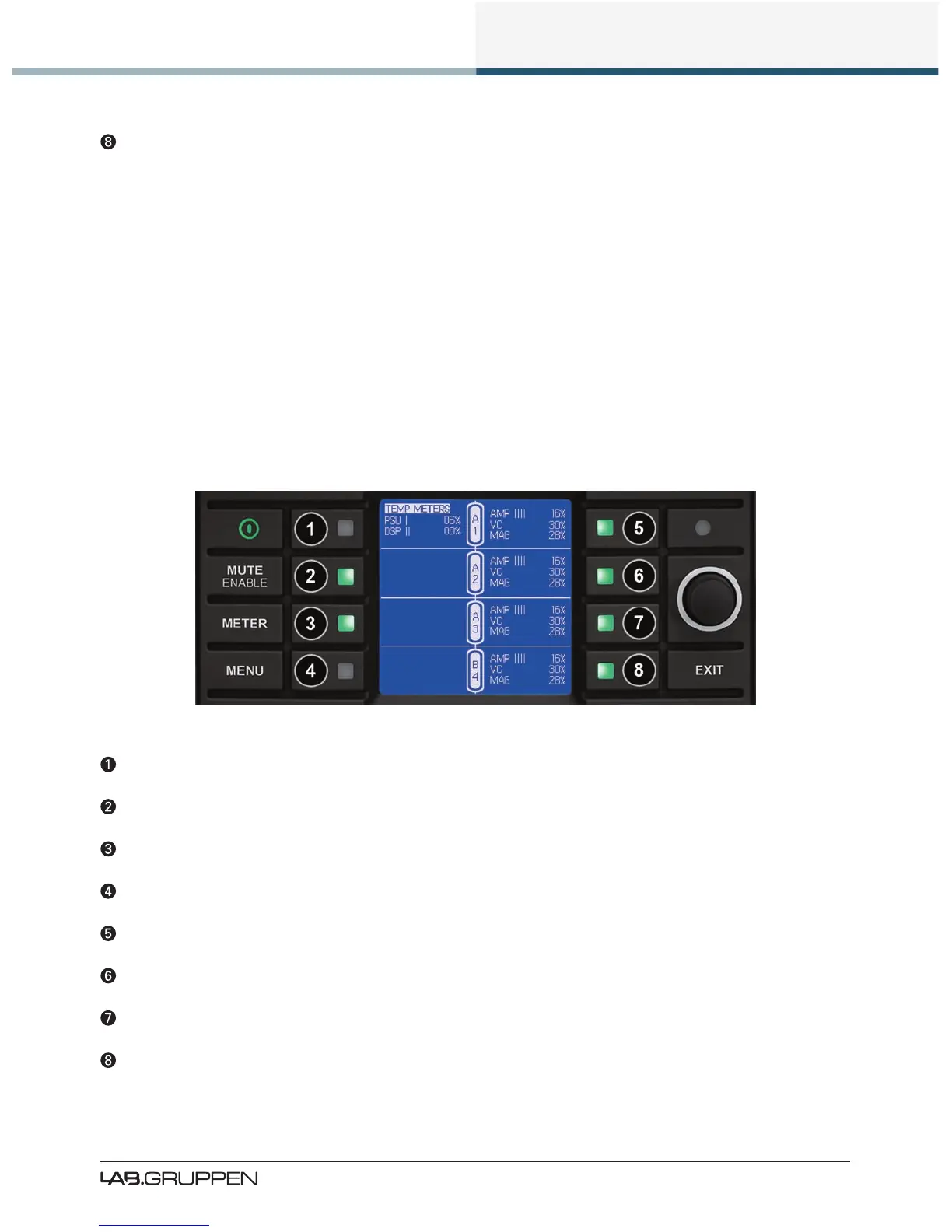

Figure 7-6: Meter Mode > Temperature View
Current View title. Power supply temp (PSU) & Lake processor temp (DSP) as percentage of maximum
Unused in Temperature View
Unused in Temperature View
Unused in Temperature View
Output 1: AMP - Temp of power output VC - Temp of voicecoil MAG - Temp of magnet
Output 2: AMP - Temp of power output VC - Temp of voicecoil MAG - Temp of magnet
Output 3: AMP - Temp of power output VC - Temp of voicecoil MAG - Temp of magnet
Output 4: AMP - Temp of power output VC - Temp of voicecoil MAG - Temp of magnet

Lab.gruppen PLM Series Specifications

General

DSP	Yes
Network	Ethernet
Connectors	XLR, SpeakON
Cooling	Forced air
Protection Features	Overheat, DC, short circuit
Control Software	Lake Controller
