59Expert(t) 2000
TM
Maintenance Manual

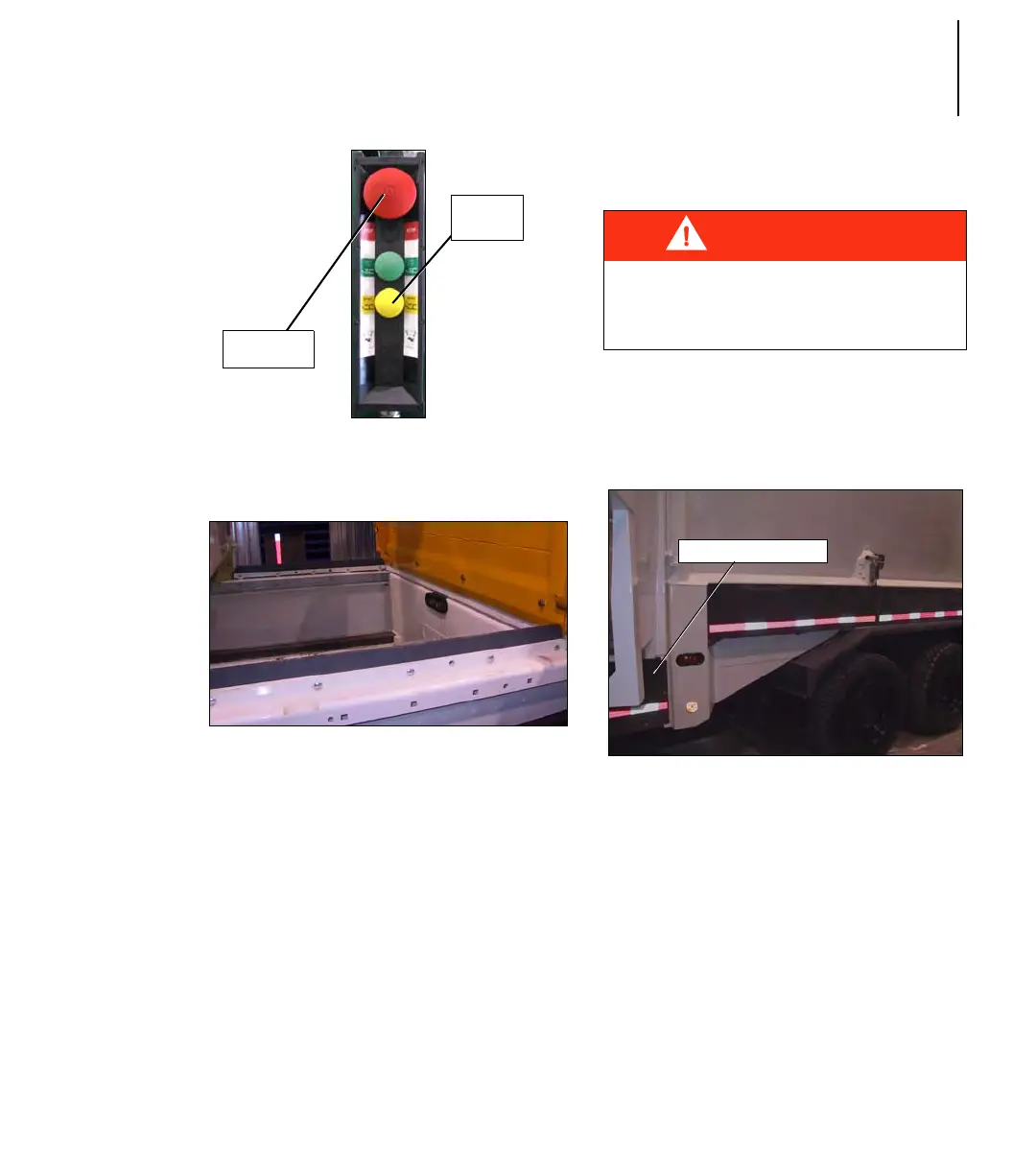

Figure 89. Right-hand side control
station
Figure 90. Retracted packer
Note:To move the packer (retract or
extend) for a short distance,
press on the green (or yellow)
button then immediately push
the red button to stop the
packer. Pull the red button and
repeat the procedure until the
packer reaches the desired
position.
8. Turn the engine and hydraulic
pump off;
9. Unbolt both hopper side panels
(Figure 91. “Hopper side panel”)
located below the hopper doors
of the Expert(t) 2000
TM
;
Figure 91. Hopper side panel
10. Unbolt the deflector stands on
both sides of the hopper to
remove them. (Figure 92. “Side
rail and deflector stand”);.
Emergency
Stop Button
Retract
Button
DANGER
NEVER CLIMB IN THE HOPPER WHILE
THE
ENGINE IS RUNNING.
