64 CHAPTER 3
Maintenance
doghouse panel scraper (if
applicable) from the hopper.
Note:Units equipped with an
automated Helping Hand
TM
arm
are equipped with an arm
doghouse panel scraper.
Refer to “Arm Doghouse Panel
Scraper Removal and Wear Pad
Replacement” on page 73 for
details.
13. Replace both scraper wear pads;
14. Start the engine and engage the
hydraulic pump;
15. Retract the packer (Figure 103.
“Fully retracted packer”);

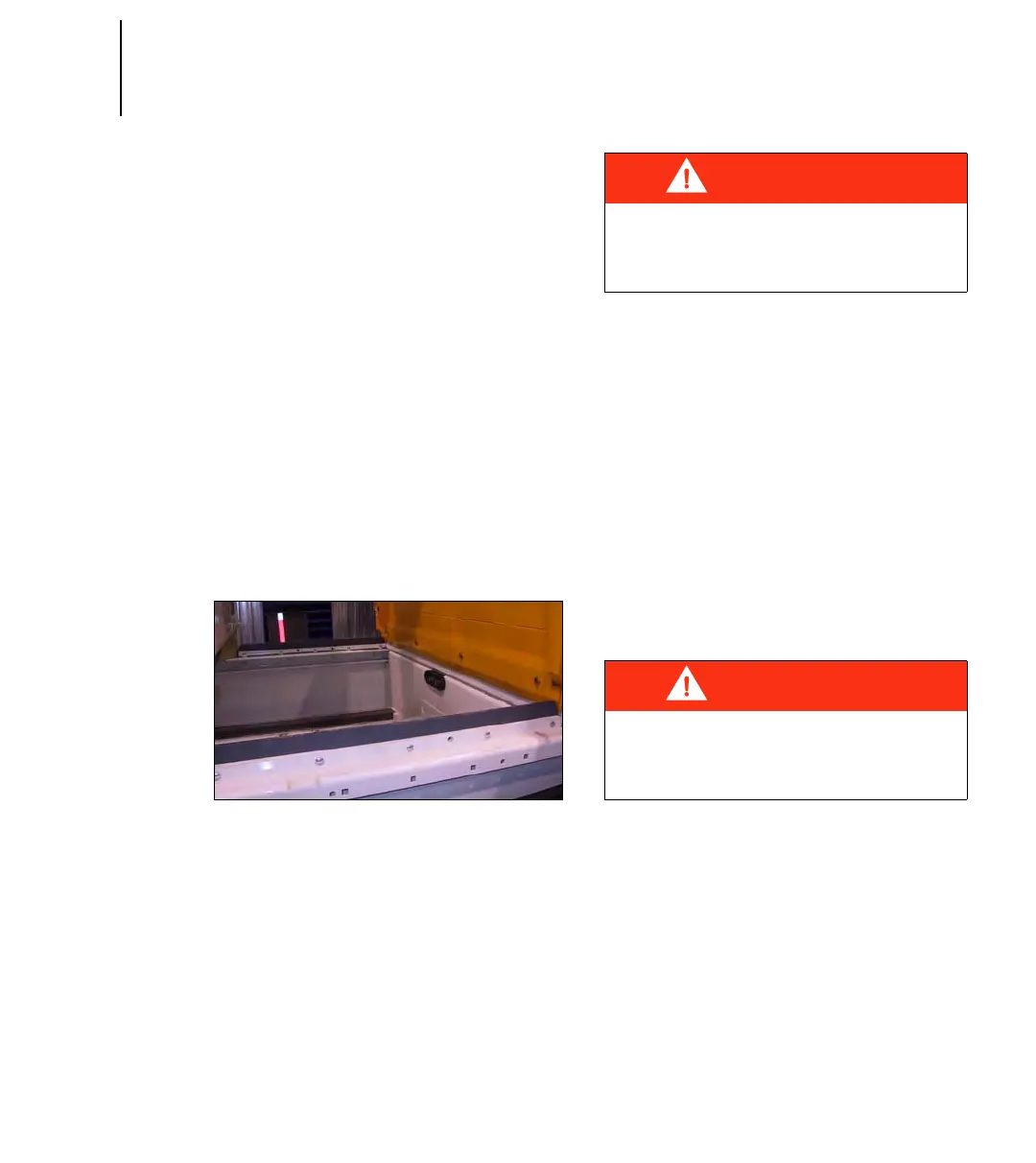

Figure 103. Fully retracted packer
16. Stop the hydraulic pump and the
engine;
17. Remove the swivel-style panel
from the hopper. Refer to
“Swivel-style Panel Removal and
Wear Pad Replacement” on
page 71 for details.
18. Start the engine and engage the
hydraulic system;
19. Extend the packer about 12”
from the end of the stroke;
20. Stop the hydraulic pump and the
engine;
21. Remove the access cover and
the cylinder pin (Figure 104.
“Packer cylinder pins, access
cover and greasing hoses”).
Note:The greasing hoses must be
disconnected from the
cylinder pins; these hoses are
DANGER
NEVER CLIMB IN THE HOPPER WHILE
THE
ENGINE IS RUNNING.
DANGER
NEVER CLIMB IN THE HOPPER WHILE
THE
ENGINE IS RUNNING.
