located under the follower
panel.

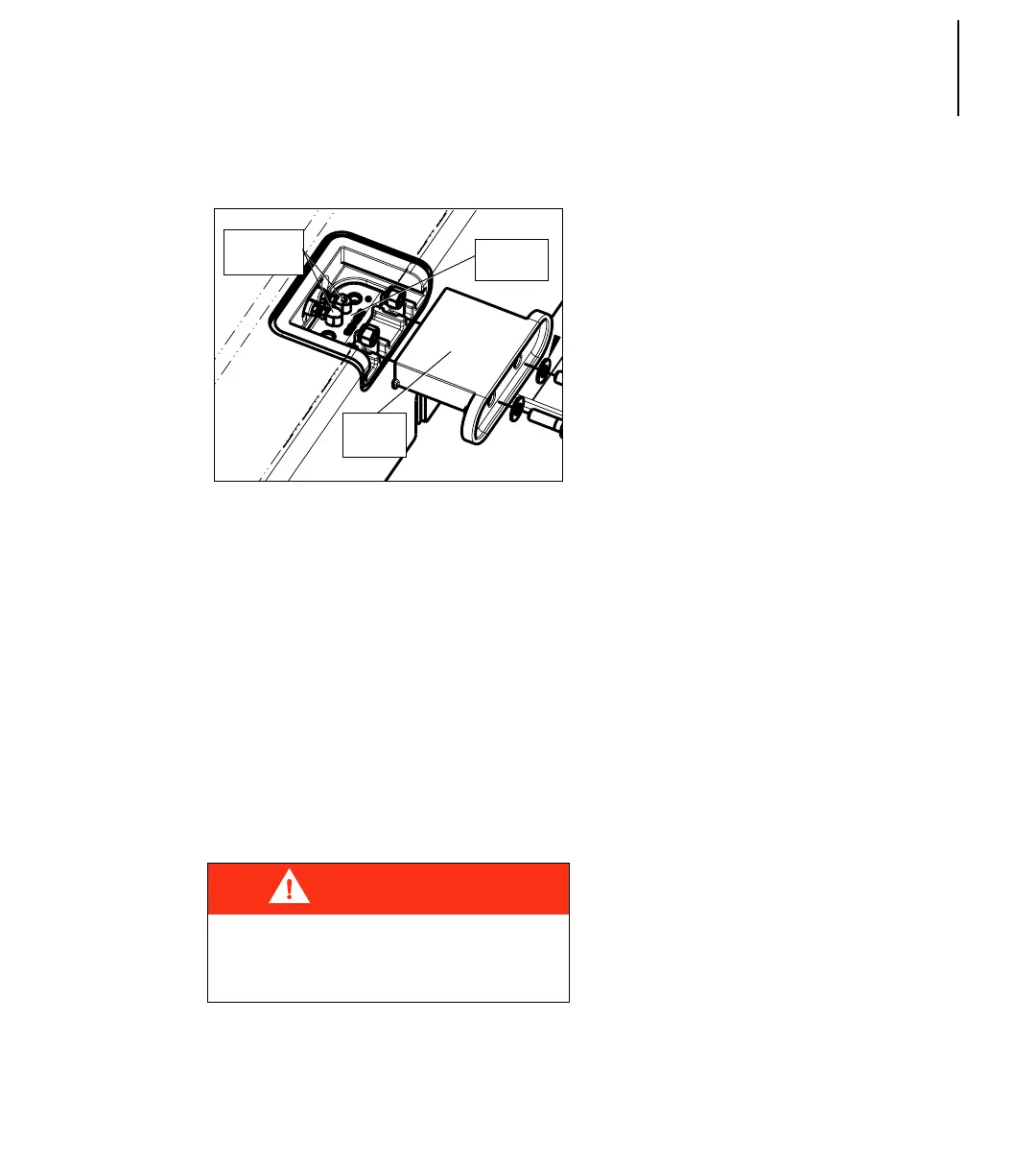

Figure 104. Packer cylinder pins,
access cover and greasing hoses
Note:The cylinder pins top plates
are provided with two (2)
threaded holes to use as a
puller by inserting two (2)
½-NC bolts.
22. After removing the cylinder pin,
start the engine and retract the
hydraulic cylinders;
23. Stop the hydraulic pump and the
engine;
24. Remove the four packer roller
assemblies from the follower
panels;
25. Fold the follower panels over the
packer;
26. Weld the follower panels to the
packer;
27. Attach the packer to a lifting
device (fork lifter) in order to
extract it from the hopper;
28. Re-install the new packer into
the hopper checking the
alignment of the packer with the
floor guides;
29. Install a new wiper blade on
each side of the packer (Figure
105. “Wiper blade”);
Note:These wiper blades may
require to be adjusted to fit
between the new packer and
the hopper walls.
DANGER
NEVER CLIMB IN THE HOPPER WHILE
THE
ENGINE IS RUNNING.
Greasing
Hoses
Cylinder
Pin
Access
