Lamtec ETAMATIC OEM - Connecting Diagram of Customer Interface

116
10 Appendix
10.13 Connecting Diagram of Customer Interface

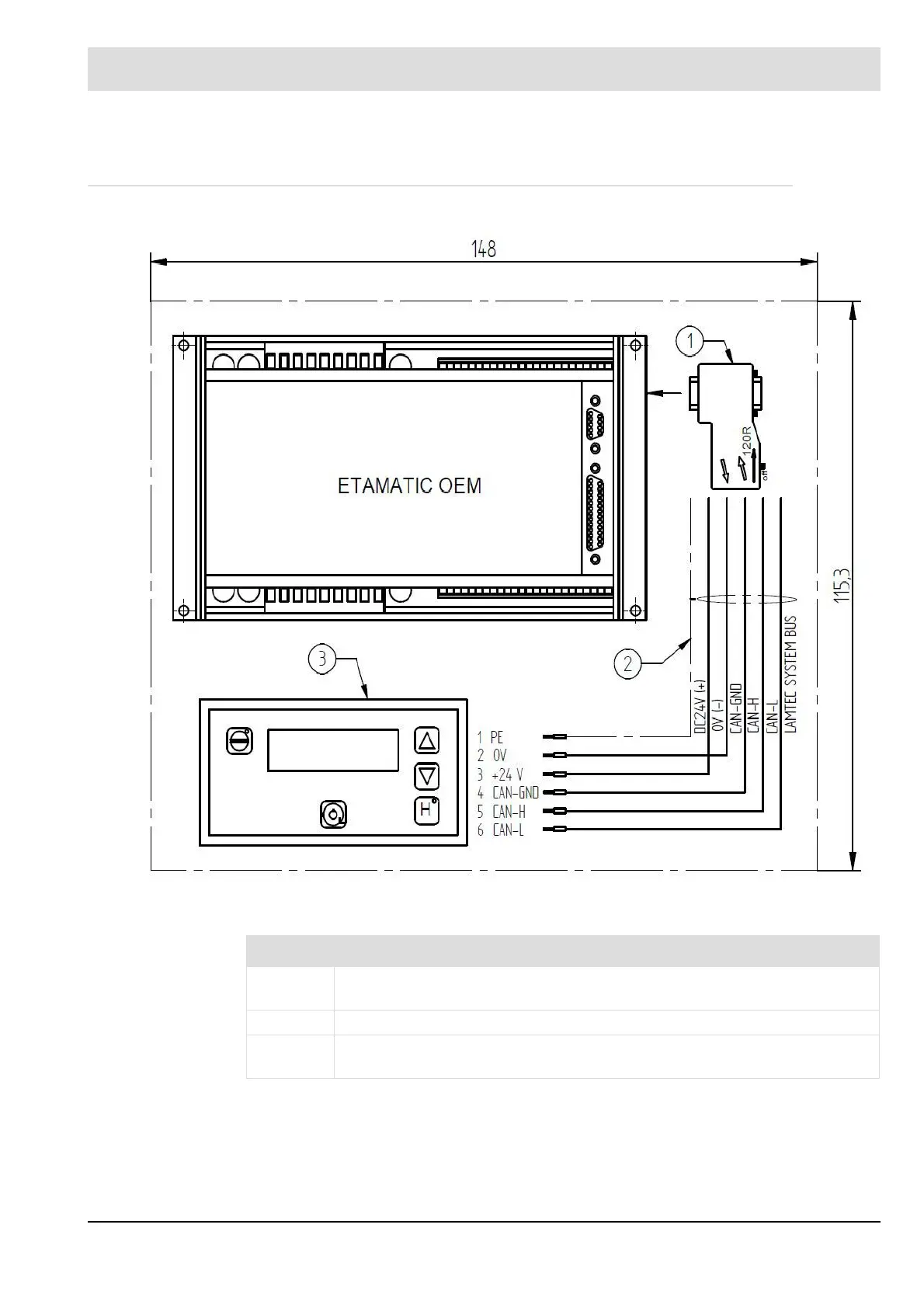

Fig. 10-10 Connection diagram customer interface - ETAMATIC OEM
No. Description
1 CANopen plug
Termination resistor LSB
2 Connecting cable 663P0421, length 2m
3 Customer interface
Termination resistor LSB DIP switch 8 ON
