5 Operator Device
5.1 Programming Unit
5.1.1 Use of the Operating Unit
With the operating unit you may operate and the program the burner control system.
5.1.2 Connecting to the ETAMATIC OEM
Connect the operating unit by using a 9-pin Cannon connector. To do so, use the supplied con-
necting cable, item no. 663 R 0430. Data transmission takes place via the LAMTEC SYSTEM
BUS.
Alternatively, you can connect the operating unit with the cable of the customer interface. An
adapter cable, item no. 663 R 0426, is supplied for this purpose. Disconnect the 6-pin connec-
tor from the customer interface and connect the adapter cable to the 6-pin connector.

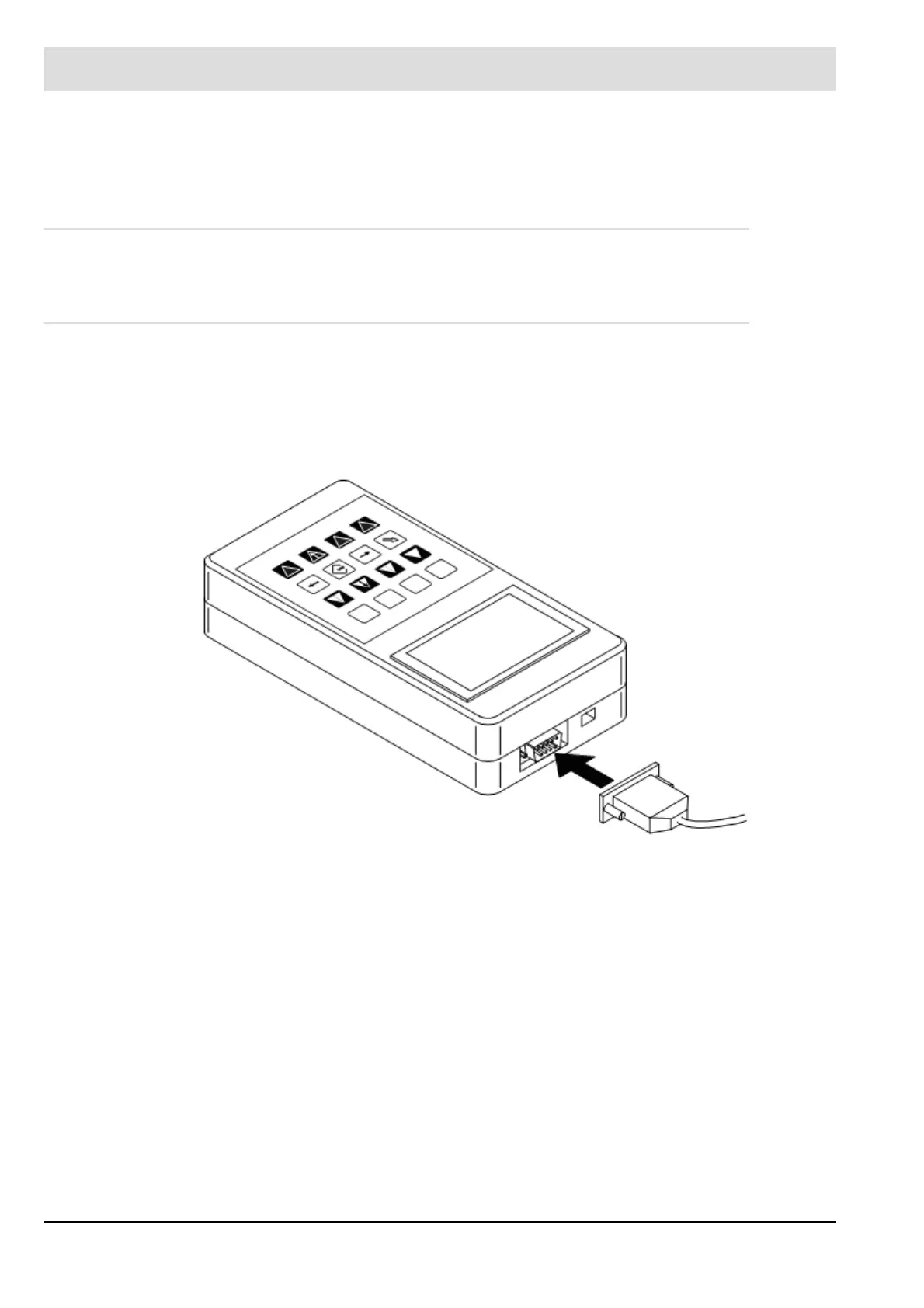

Fig. 5-3 Connection of the operating unit
