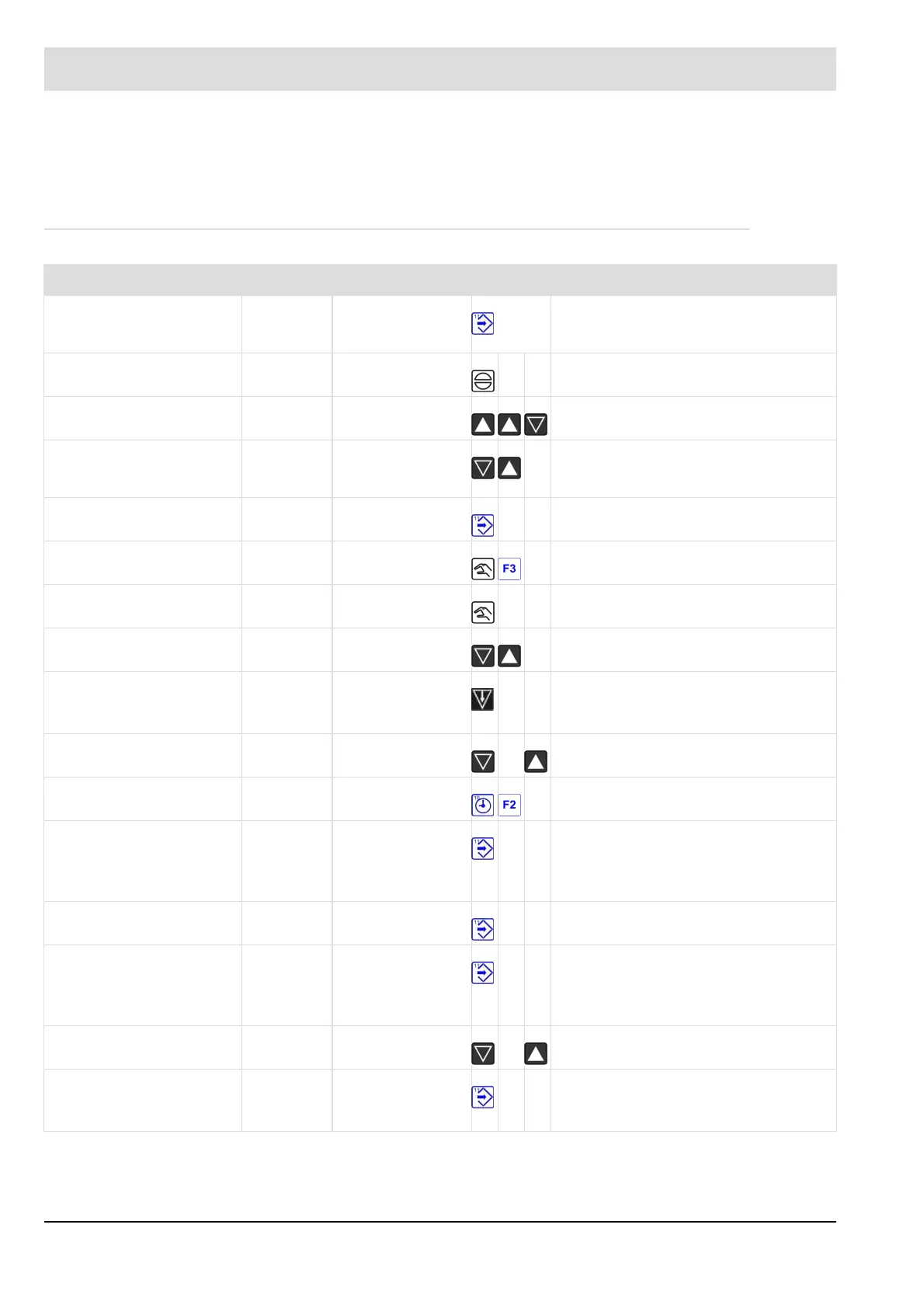

10.18 Schalter und Tastenkombination der Bedieneinheit
10.18.1 Programming Unit
Action Display
Mode Other
recall correction range status monitoring display
automatic
setting
press key 11 (Enter)
reset
press key F1 (Reset)
code entry for parameter set-
tings
status automatic
press keys 5, 7 and 8 simultaneously
scan fault history status monitoring display
automatic
setting
press keys 2 or 3
(not in fault mode)
recall correction input value firing rate
press key 11 (Enter)
firing-rate adjustable with
switch 1 (manual mode)
automatic
press key F3 (manual)
leaving manual mode automatic
press key F3 (manual) again
firing-rate adjustable with
key 1(internal pre-setting)
firing-rate setting
press key 2 or 3
Modus EG is active firing-rate setting
clear memory
press key 6 Mode GL or RG (EL in dis-
play) fuel/air ratio control locked (no
indication, ES locked)
Mode EG is terminated setting
clear memory
_
press key 2.....9 in Mode EG or ES
display of running time
meter / starts counter
automatic
press key F2 (clock)
store point setpoint
feedback
actual
value
setting
press key 11 (Enter)
clear actual curve setpoint clear memory
press key 11 (Enter)
display of the acceptance
data, CRCs for all levels,
safety time oil/gas, pre-
purge time
feedback
setpoint press key 11 (Enter)
traverse channels setpoint setting _
press keys 2.....9
scanning of serial num-
bers and key numbers
feedback
actual
value
press key 11 (Enter)
