Lamtec ETAMATIC OEM - 10.15 Remote Control Modem

124
10 Appendix
Code Colour
BN brown

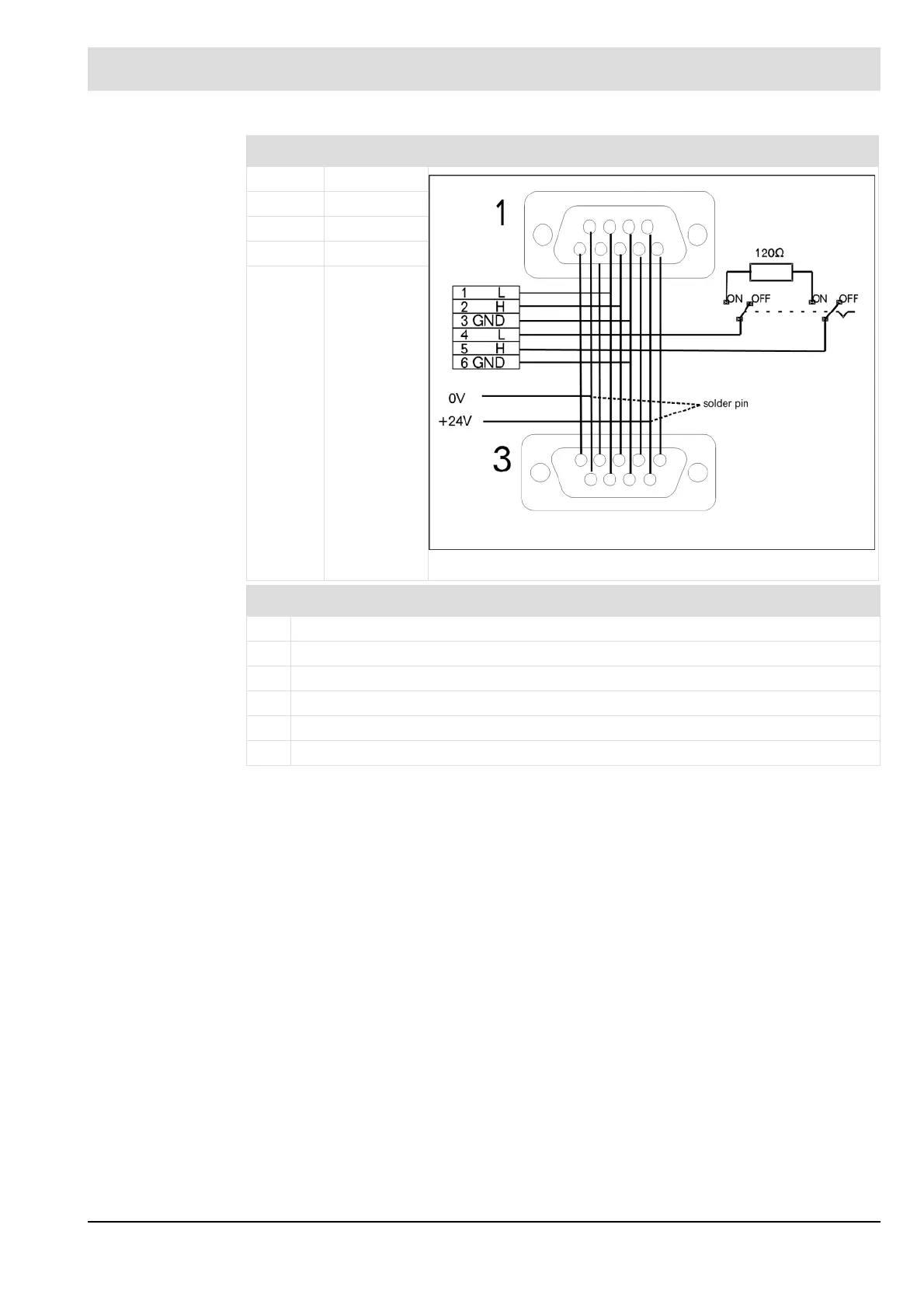

Fig. 10-19 Pin assignment LSB plug
WH white
GY grey
YE yellow
GR grün
No. Description
1 9 pole Sub-D jack service- and programming interface for the operating unit
2 Switch for activating/deactivating the LSB-termination ON.-.OFF
3 9 pole Sub-D pikes LSB for connection with the ETAMATIC OEM
4 Clamp-connection
5 Solder pins
6 Shielding
