Lanner HCP-72i1 - Page 25

25
www.lannerinc.com

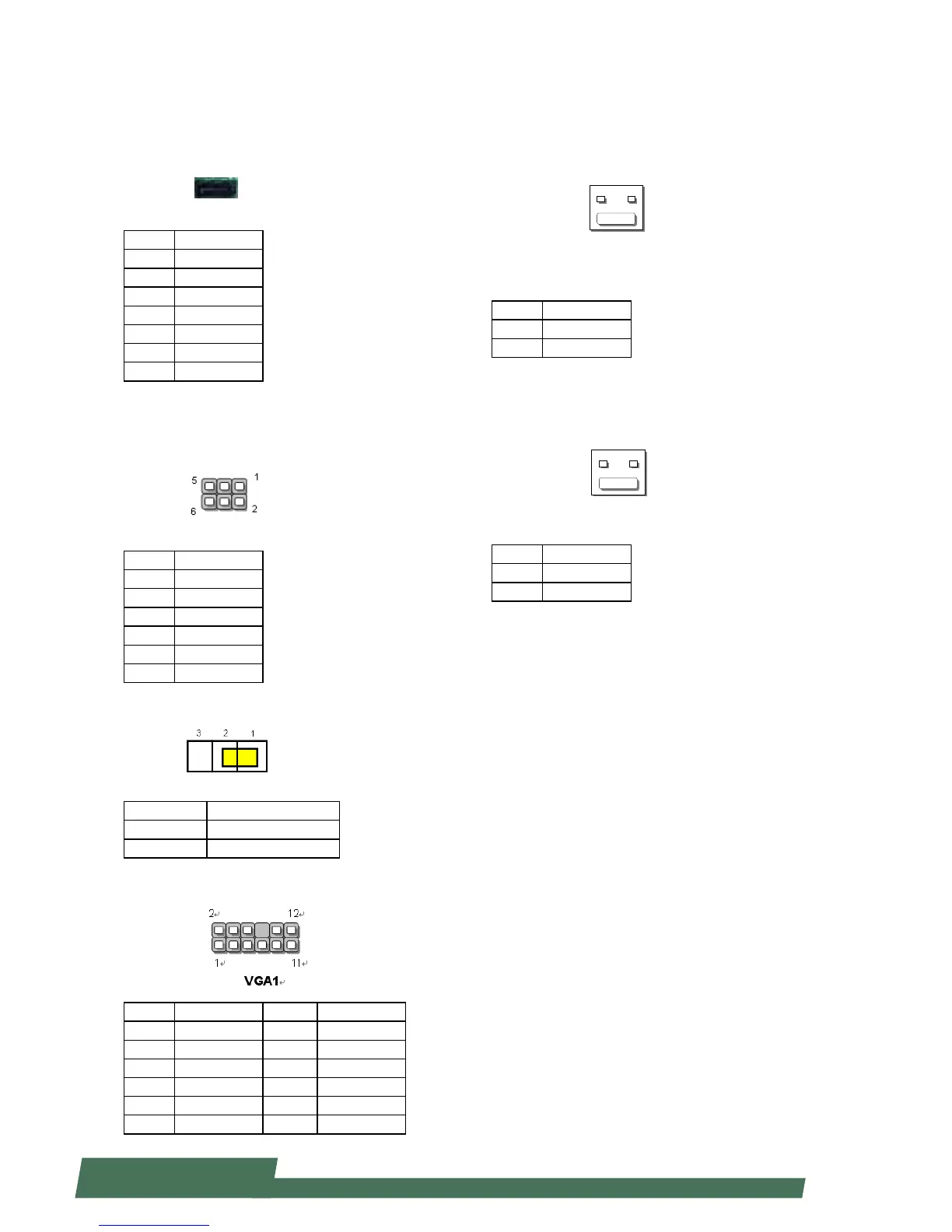

SATA (J23): used to connect SATA disk drive
Pin Description
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
SATA Re-Driver value flash (J26)
SATA signal redriver and conditioner
Pin Description
1 PCIE_R_SDA2
2 3.3V
3 PCIE_R_SCL2
4 MOSI2
5 REST_MCU2#
6 GND
CMOS clear (J11): clear CMOS jumper
Pin Description
Short 1-2 (default) Normal
Short 2-3 Clear CMOS
VGA connector (VGA1): VGA display
Pin Description Pin Description
1 RED 2 GND
3 GREEN 4 GND
5 BLUE 6 GND
7 HSYNC 8 X
9 VSYNC 10 GND
11 DDC_DATA_CONT 12 DDC_CLK_CONT
Hot swap LED(CONN3)
Pin Description
1 LED_P
2 LED_N
Hot swap MRL(Manual Retention Latch) pin
header(CONN1)
Pin Description
1 Power Enable#
2 GND
CONN3
1
2
CONN1
1
2
