PLMNL0232 REV. H Effective Date: 01/14/19 12 FiberCUT
®
2D Operation Manual
2.3 Plumbing – Water Cooling / Purge
Gas / Assist Gas / Nozzle Cooling
/ Air Blast

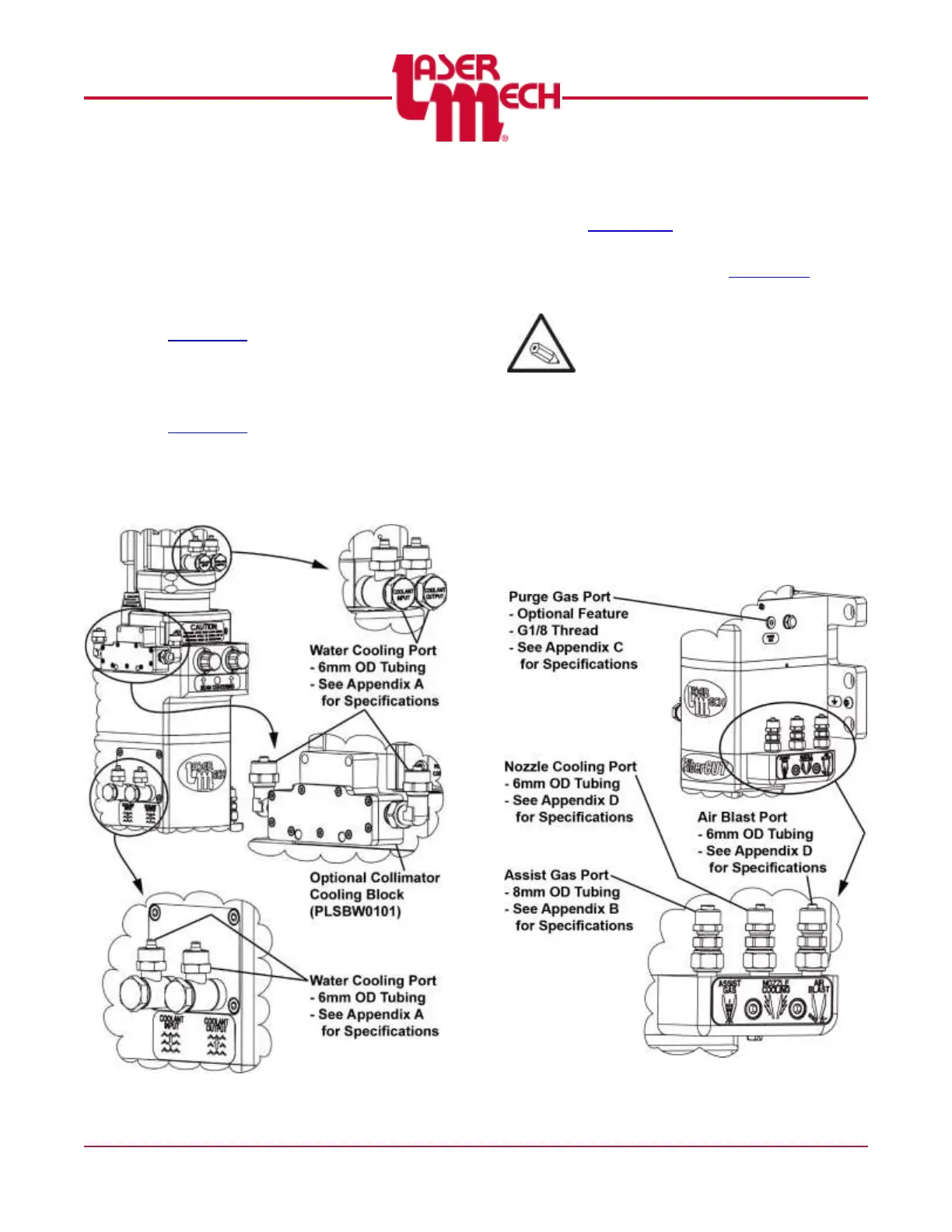

See Figure 7 and Figure 8 for line
locations.
Laser head cooling specifications are in
Appendix A.
See the manufacturer’s information for
specifications on cooling the fiber.
Assist gas specification are in
Appendix B.
Figure 7
Purge gas specifications are in
Appendix C.
Air blast and nozzle cooling
specifications are in Appendix D.
For some applications, Laser
Mechanisms recommends additional
cooling near the collimator. In those
cases, a collimator cooling block
(PLSBW0101) replaces the standard
electrical box cover. See Figure 7.
Figure 8
