PLMNL0232 REV. H Effective Date: 01/14/19 65 FiberCUT
®
2D Operation Manual

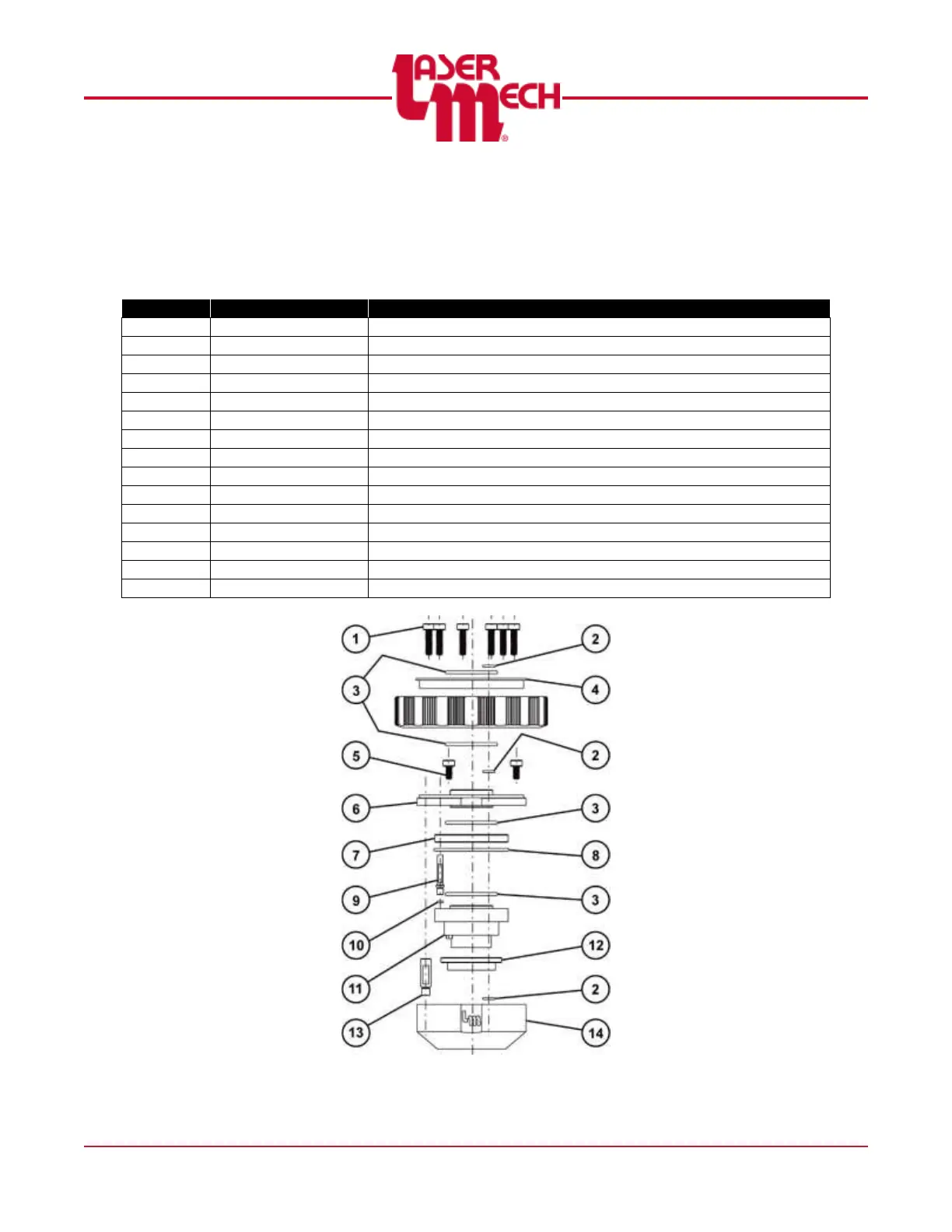

14.2 User Serviceable Parts List
For recommended user-serviceable spare parts, please call Laser Mechanisms at (248) 474-9480. If
your head requires service beyond the instructions outlined in this manual, please contact Laser
Mechanisms for further assistance.
ITEM
PART #
DESCRIPTION
NA
PLTRA0447
Tip Assembly (Complete Assembly)
1
PLSCR0109
M3 SHCS
2
PLMOR0030
Small O-Ring
3
PLMOR0029
Large O-Ring
4
PLISR0041
Breakaway Insulator
5
PLSCR0042
M3 SHCS
6
PLADR0604
Top Plate
7
PLISR0042
Upper Insulator
8
PLORG0046
Large O-Ring for Upper Insulator
9
PLSCR0107
Threaded Stud, 2.5 mm Diameter
10
PLORG0039
Small O-Ring for 2.5 mm Diameter Threaded Stud
11
PLTRE0350
Inner Cone
12
PLISR0043
Lower Tip Insulator
13
PLSCR0112
Threaded Stud, 5 mm Diameter
14
PLSRD0003
Outer Body
Figure 73
