LaserMech FiberCUT 2D - 1 Introduction

PLMNL0232 REV. H Effective Date: 01/14/19 7 FiberCUT
®
2D Operation Manual
1 Introduction
The FiberCUT
®
2D laser processing head was
developed to provide cutting-edge performance
for flatbed systems.
Features of the FiberCUT
®
2D include the
following (see Figure 1):
 Mounting plate with grounding lug
 Automatic programmable focus with 27 mm
of travel
 (2) cover glasses
o (1) above the collimator lens
o (1) below the focus lens
 Convenient beam centering adjustment
knobs
 Connections for water cooling, purge, assist
gas, nozzle cooling, and air blast
 Optional collimator cooling block (not
shown).
 Multiple focus lens options:
125 mm, 150 mm, or 200 mm
 Multiple collimating lens options:
60 mm, 80 mm, or 100 mm
 Standoff distances from 0.2 – 8.0 mm
 Power rating up to 8kW
 Fully sealed and purged design to prevent
contamination
 Sealed access doors prevent contamination
during cover glass service
 Pierce detection and loss of cut process
monitoring
 Internal sensors to determine the condition
of ALL optics
 No exposed wires to snag or break
 Breakaway tip assembly protects the head
during a crash
 Laser Mechanisms patented height sensing
technology

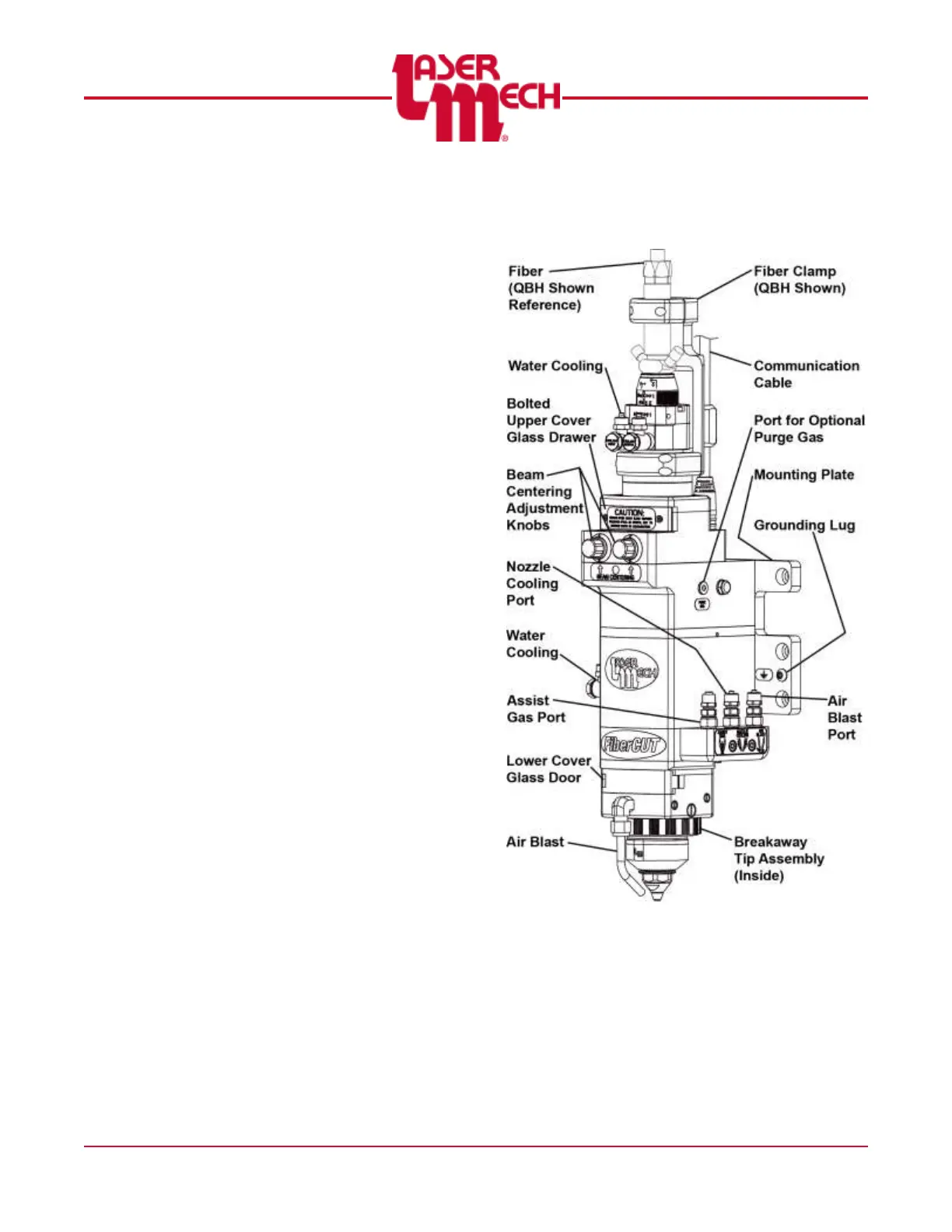

Figure 1
