PLMNL0232 REV. H Effective Date: 01/14/19 8 FiberCUT
®
2D Operation Manual
2 Mechanical Installation and
Operation

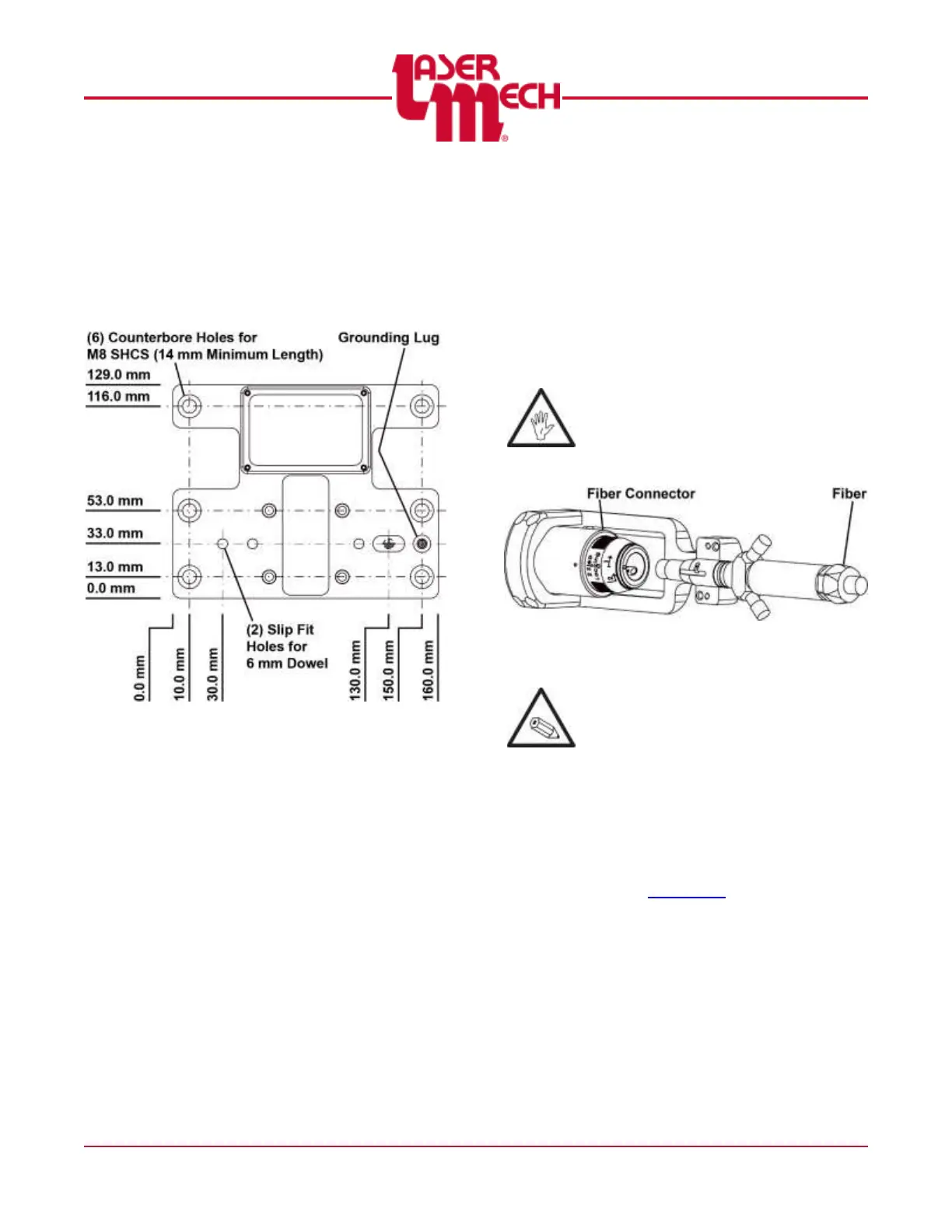

2.1 Machine Mount
The mount plate attaches directly to your 3-
axis machine according to Figure 2.
Figure 2
2.2 Fiber Input and Installation
The fiber input adapter is where the fiber
optic cable plugs into the cutting head. See
Figure 1. There are several standard types
of industrial fiber (QBH/HLC-8, QD/LLK-D/
LCA, Q5/LLK-B, and PIPA). Each of these
fibers requires a unique fiber input adapter.
Refer to the fiber manufacturer’s
information for specific instructions.
ALWAYS position the fiber so it is
horizontal during installation and
removal. See Figure 3.
Figure 3
The fiber input adapter MUST be
plugged or covered with tape when the
fiber in not installed.
EVERY TIME the fiber is removed
and/or installed the upper cover glass
MUST BE
Inspected and reused if it is clean.
OR
Replaced if it is contaminated.
See Section 5.3 for more details.
