LaserMech FiberCUT 2D - Generation 2 Controllers; Interface Example

PLMNL0232 REV. H Effective Date: 01/14/19 21 FiberCUT
®
2D Operation Manual
3.3 Generation 2 Controllers
3.3.1 Interface Example
The control box interface allows
control and feedback of all the
FiberCUT
®
2D operations.

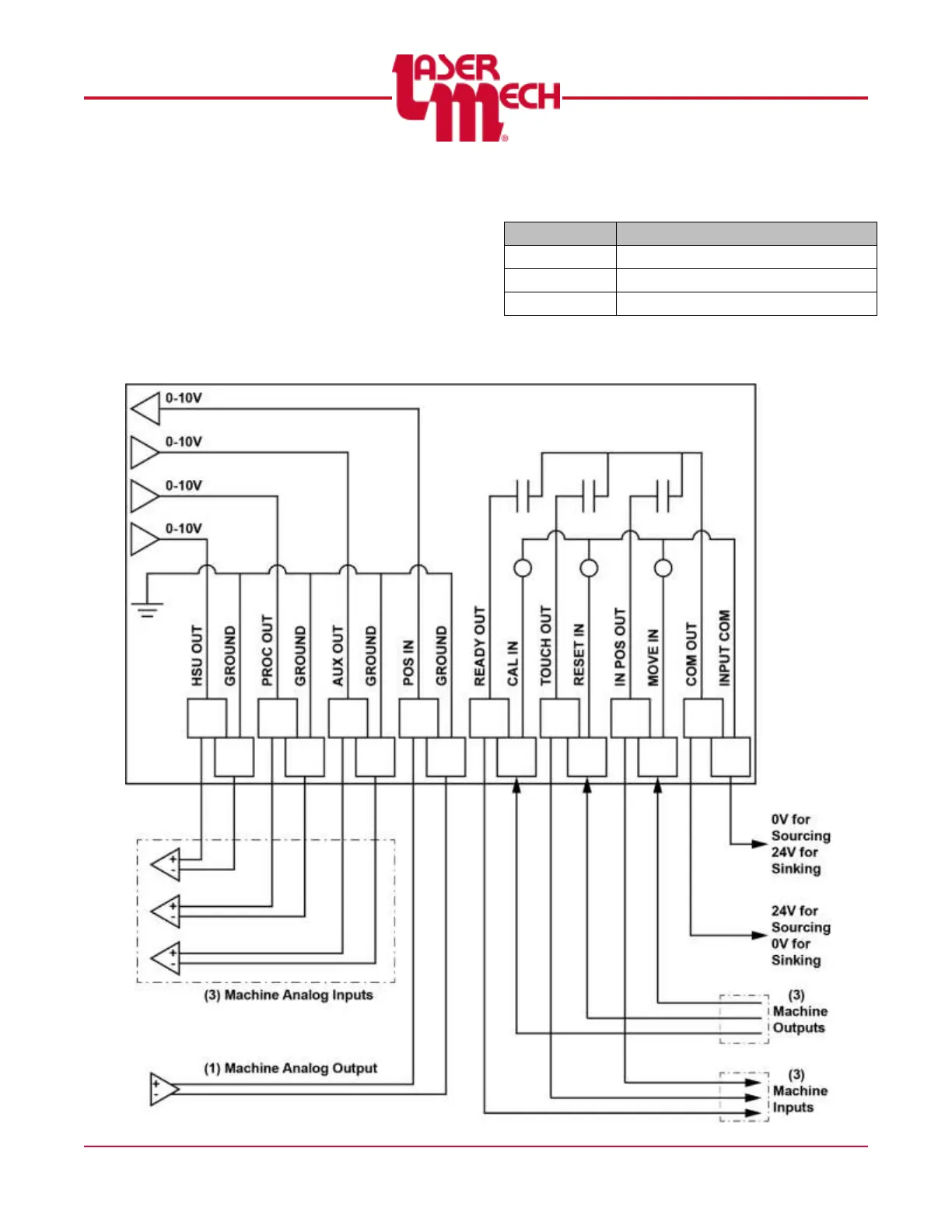

The interface example in Figure 22
is applicable for the following
Generation 2 Laser Mechanisms’
controllers:
Figure 22
Controller
Description
PLCSA0064
Discrete I/O with EtherNet/IP
PLCSA0065
Discrete I/O with PROFINET
PLCSA0066
Discrete I/O, no Industrial Ethernet
