LAUNCH PAD V
User's Manual
23
*Note: Diagnostic Trouble Codes or Fault Codes can be used to identify
which engine systems or components that are malfunctioning. Never
replace a part based only on the DTC definition. Retrieving and using
DTCs for troubleshooting vehicle operation is only one part of an overall
diagnostic strategy. Follow testing procedures (in vehicle’s service manual),
instructions and fl owcharts to confi rm the locations of the problem.

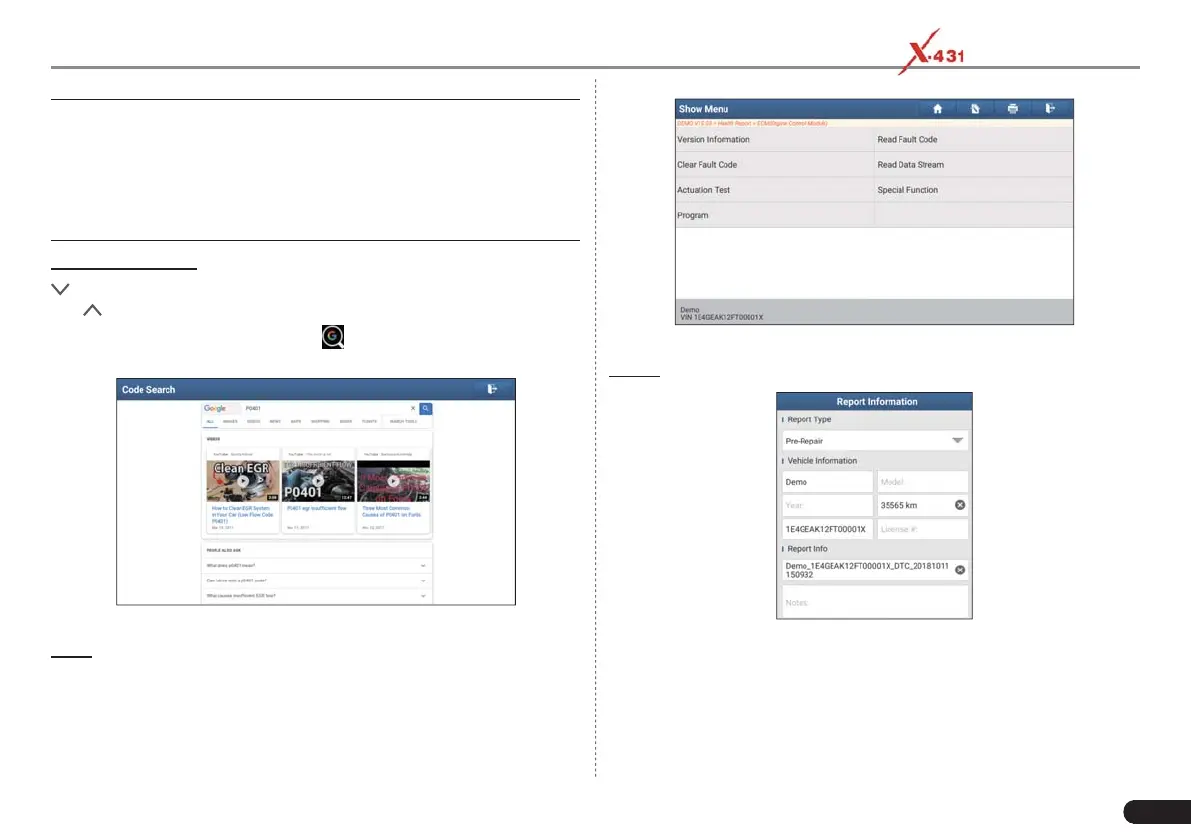

On-screen Buttons:
: Tap to display the details of DTCs existing in the current system.
Tap to hide it.
Highlight certain DTC item, and tap
to open the browser to retrieve
it in Google engine.
Fig. 5-18
Enter: Tap to select other test functions.
Fig. 5-19
Report: Tap to save the diagnostic result as a report.
Fig. 5-20

Launch X-431 PAD V Specifications

General

Operating System	Android 9.0
Processor	Octa-core 2.0 GHz
RAM	4 GB
Storage	64 GB
Resolution	1920 x 1200
Battery	7000 mAh
Display	10.1 inch
Connectivity	Wi-Fi, Bluetooth
Ports	USB, HDMI
Operating Voltage	9V - 36V
Supported Protocols	OBDII, CAN
