Launch X-431 PAD V User Manual

LAUNCH PAD V
User's Manual
29

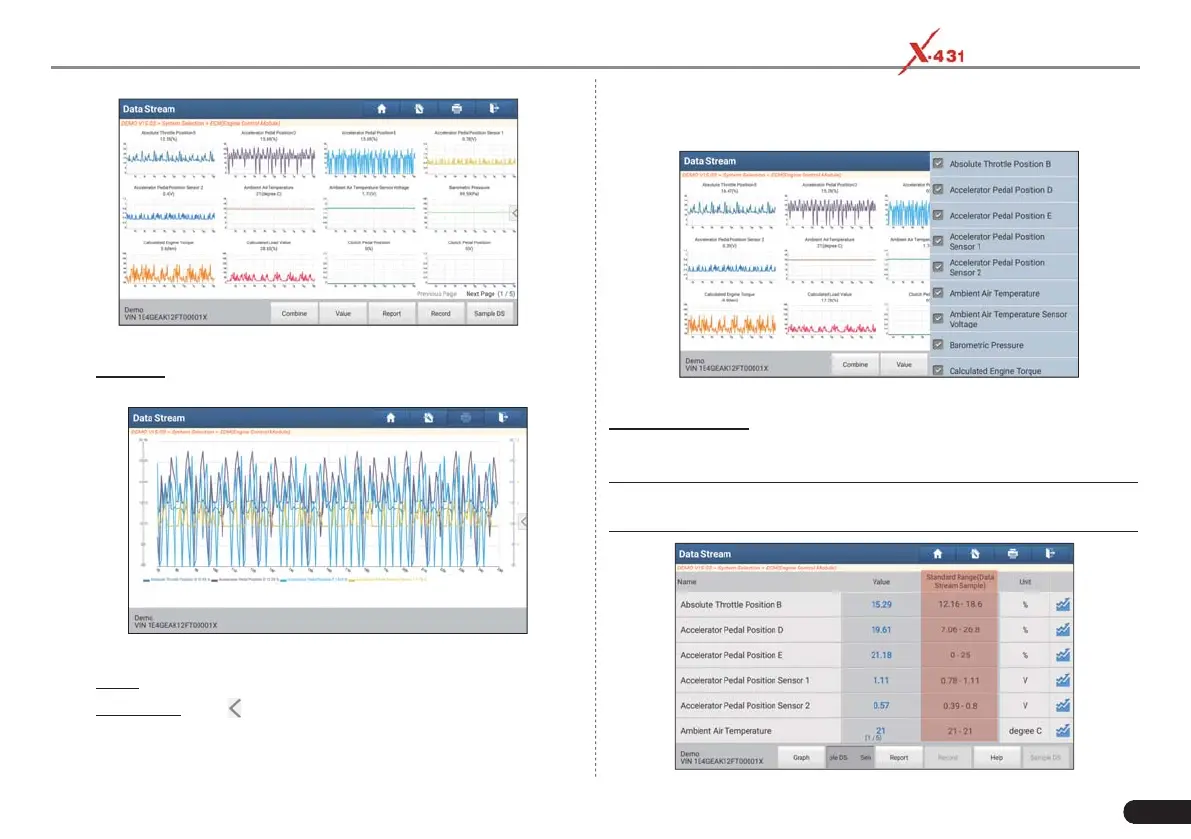

Fig. 5-31
• Combine: This option is mostly used in graph merge status for
data comparison.
Fig. 5-32
• Value: Tap to display the parameters in texts.
• Customize: Tap
, a pull-down list of the data stream items
appears on the screen. Select (Maximum 8 data stream items
can be selected)/deselect the desired items and then screen
will display/remove the waveforms corresponding to these items
immediately.
Fig. 5-33
Select Sample DS: Tap it to select the sample DS fi le, the values you
customized and saved in process of DS sampling will be imported into
the “Standard Range”(See below) column for your comparison.
*Note: Before executing this function, you have to sample the values of data
stream items and save it as an sample DS fi le.

Launch X-431 PAD V Specifications

General

Operating System	Android 9.0
Processor	Octa-core 2.0 GHz
RAM	4 GB
Storage	64 GB
Resolution	1920 x 1200
Battery	7000 mAh
Display	10.1 inch
Connectivity	Wi-Fi, Bluetooth
Ports	USB, HDMI
Operating Voltage	9V - 36V
Supported Protocols	OBDII, CAN
