high-voltage line, and crocodile clips to ground.

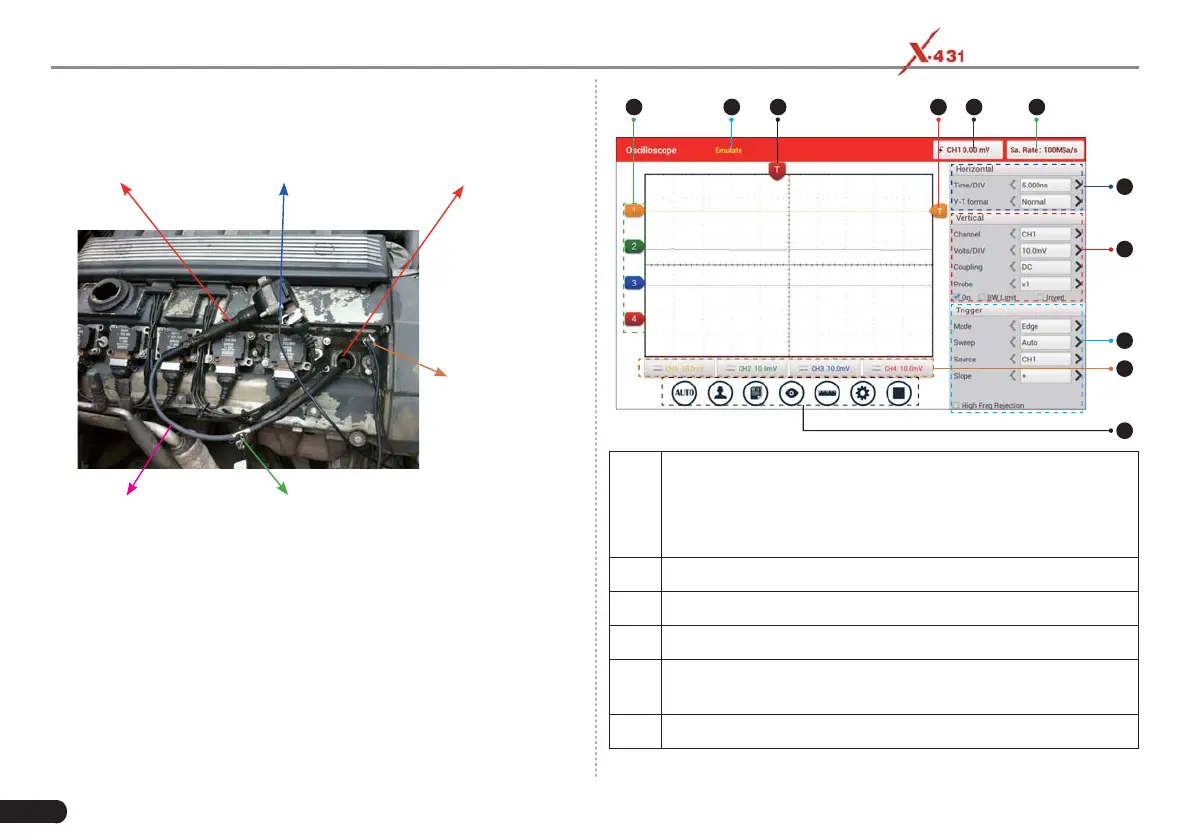

The connection is as follows:
COP earth
cord &
crocodile clips
to ground
Ignition coil
COP earth cord
COP extension
cord
The high-voltage clips to
the insulated lead of the
COP extension cord
Spark plug
For detailed operations, please refer to Chapter 7.4.
7.3.3.3 Initial interface introduction
Below displays the initial interface of the Scopebox.
132546
7
8
9
10
11
1
Displays the CH1/CH2/CH3/CH4 information:
Readout shows the coupling and vertical scale factors of the
channels.
A “B” icon indicates that the channel is bandwidth limited.
2 Working mode
3 Horizontal trigger position marker
4 Edge trigger level marker
5
Displays the trigger information, including the edge trigger
slope, source and level.
6 Sample rate

Launch X-431 PAD V Specifications

General

Operating System	Android 9.0
Processor	Octa-core 2.0 GHz
RAM	4 GB
Storage	64 GB
Resolution	1920 x 1200
Battery	7000 mAh
Display	10.1 inch
Connectivity	Wi-Fi, Bluetooth
Ports	USB, HDMI
Operating Voltage	9V - 36V
Supported Protocols	OBDII, CAN
