Display
This section describes the names and functions of parts on the meter display.

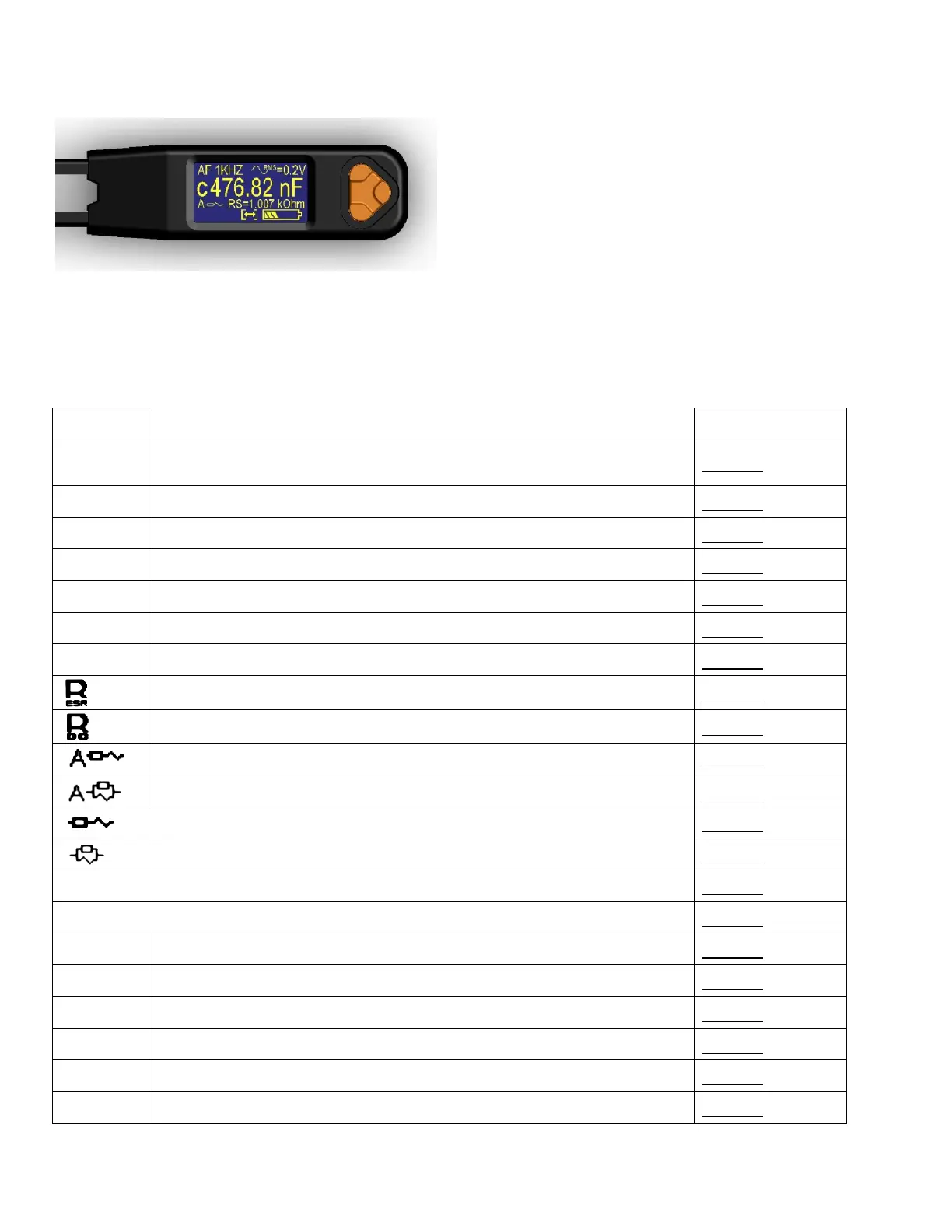

Figure 1-8: Measurement Display
The general display indicators of the meter are described in Table 1-1 below. Each display indicator is described.
Please select the respective “Learn More On" page for more information on each indicator.
Table 1-1 General Display Indicators
Indicator
Description
Learn More On:
A
Auto mode indicator, the meter selects R, L C automatically according
to the component under test.
Page 26
R
Resistance measurement indicator
Page 26
Ls
Inductance measurement indicator in series circuit mode
Page 27
Lp
Inductance measurement indicator in parallel circuit mode
Page 27
Cs
Capacitance measurement indicator in series circuit mode
Page 27
Cp
Capacitance measurement indicator in parallel circuit mode
Page 27
Z
Impedance measurement indicator
Page 28
ESR (Equivalent Series Resistance) indicator
Page 30
DCR (Direct Current Resistance) indicator
Page 30
Auto circuit mode, the meter selects series mode for measurement.
Page 29
Auto circuit mode, the meter selects parallel mode for measurement.
Page 29
Manual circuit mode in series mode
Page 29
Manual circuit mode in parallel mode
Page 29
Rs
Series resistance indicator
Page 28
Rp
Parallel resistance indicator
Page 28
D
Dissipation factor indicator
Page 28
Q
Quality factor indicator
Page 28
Ө
Phase angle of impedance indicator
Page 26
AF
Auto select test frequency
Page 29
MF
Manual select test frequency
Page 29
100HZ
Test frequency at 100Hz
Page 29
Table 1-1 (continued from previous page)
