15 User Manual - LCR Pro1/Pro1 Plus - ver 1.06
Info Menu
The following device information has been provided in the Info menu:
• HW Version: it provides the device hardware version.
• SW Version: it provides the device software version.

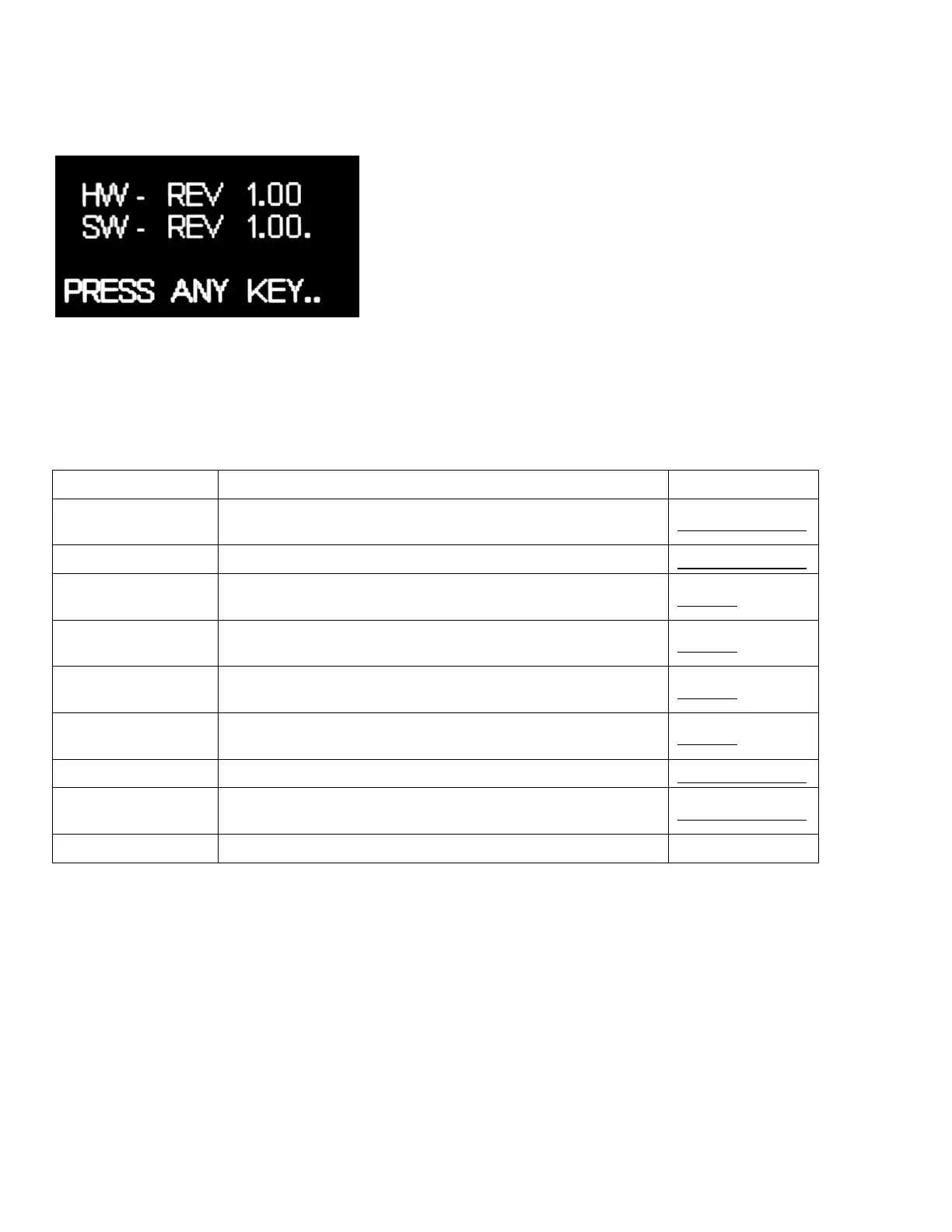

Figure 2-16: Info Menu
Measurement Menu
8 items can be selected in Measurement menu as described in Table 2-4.
Table 2-4 Description of Measurement Menu
Menu Item
Description
Learn More On:
LCRZ
Measure inductance (L), capacitance (C), resistance (R) or
impedance (Z).
Page 16, Page 24
SEC. PARAM.
Select the secondary parameter to be displayed.
Page 16, Page 28
ESR
Measure the equivalent series resistance (ESR) of a
capacitor, independent of its capacitance.
Page 30
DCR
Measure the resistance of an unknown component by
direct current resistance (DCR) mode.
Page 30
Diode
Test diode polarity or indicate a faulty diode if it sees
short/open conditions.
Page 31
Continuity
Test whether the component under test is electrically
connected.
Page 31
Sorting
Sort the component according to the preset tolerance.
Page 17, Page 32
Recording
Record the maximum, minimum, average result and
measurement cycles during a series of measurements.
Page 17, Page 34
Exit
Return to the measurement display
