1 User Manual - LCR Pro1/Pro1 Plus - ver 1.06
Overview
This chapter provides the basic operation procedures and describes names and functions on the display.
Product Introduction
LCR Pro1/Pro1 Plus (“the meter”) is a portable impedance measuring device for incoming inspection of
components, quality control, and laboratory use.
It is capable of measuring resistance, capacitance or inductance with 5 test frequencies (100Hz, 120Hz, 1kHz,
10kHz and 100kHz). It has a basic accuracy better than 0.1% for resistance and 0.2% for capacitance and
inductance measurements.
The meter has a pair of gold plated tips that can pick the SMD components with size down to 01005 (0.4mm x
0.2mm). The parasitic parameters of its probes are small and very predictable thanks to its unique mechanical
design. It significantly reduces the probability of measurement errors related to setup (such as wires, probes,
tips).
Features and Functions

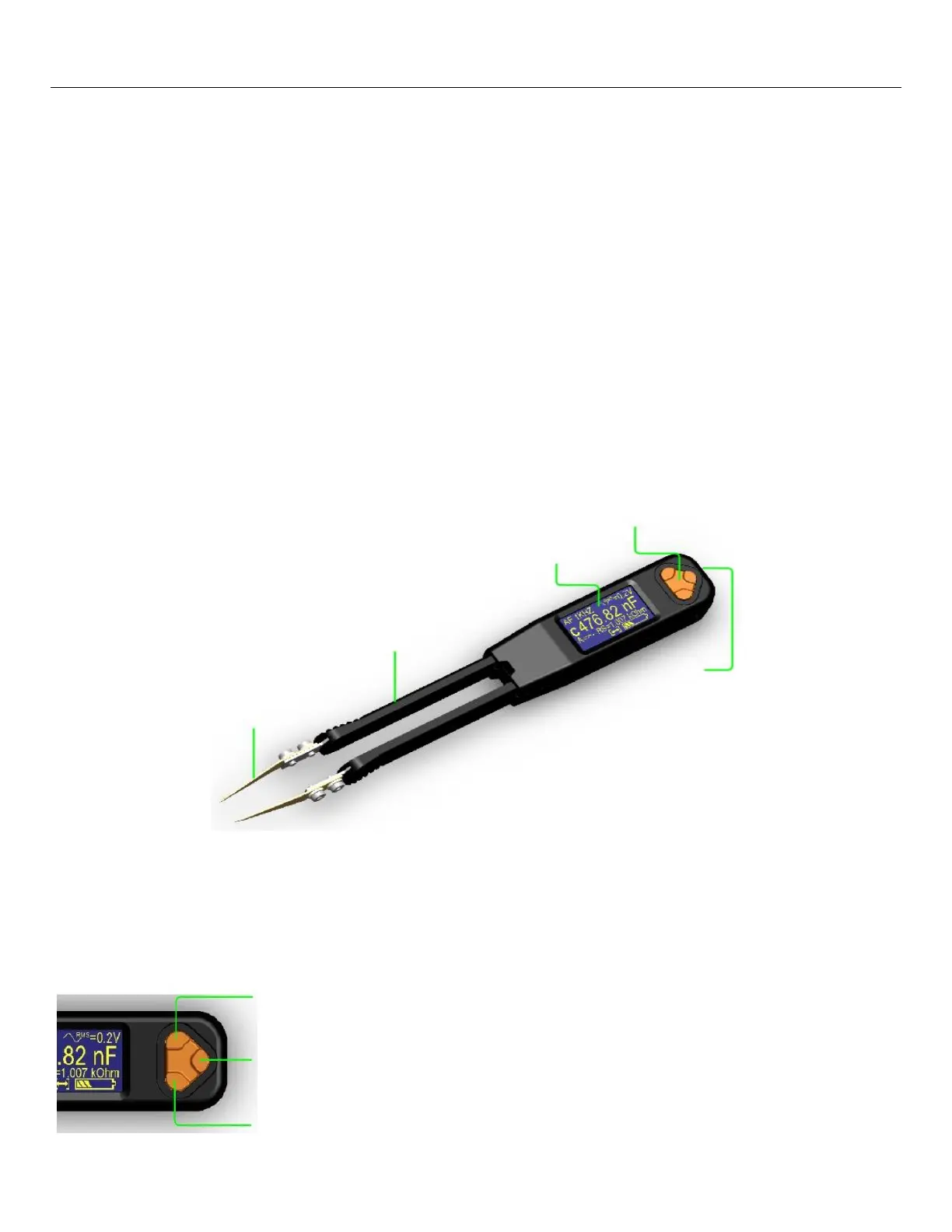

Figure 1-1: LCR Pro1/Pro1 Plus Overview
The Navigation Button
The navigation button is used to browse and select different functions and parameters. It includes the “Up”,
“Down” and “Select” buttons as Figure 1-2 shows.
Figure 1-2: Navigation Button
