LCR Pro1 User Manual

10 User Manual - LCR Pro1/Pro1 Plus - ver 1.06
System Menu
8 items can be selected in system menu as described in Table 2-2.
Table 2-2 Description of System Menu
Menu Item
Description
Learn More On:
SYS. Autoset
Reset all the settings to default in the system menu.
Page 10
Display
Select left/right hand operation and adjust display contrast.
Page 10
Sound
Turn on/off sound.
Page 11
Timeout
Select the timer to power off the meter automatically.
Page 12
Test Speed
Define how fast the meter measures the component under
test and update the reading on display.
Page 12
Self CALI.
Start short and open calibration.
Page 13
Info
Provide the device information including serial number,
hardware and software version.
Page 15
Exit
Return to the measurement display.

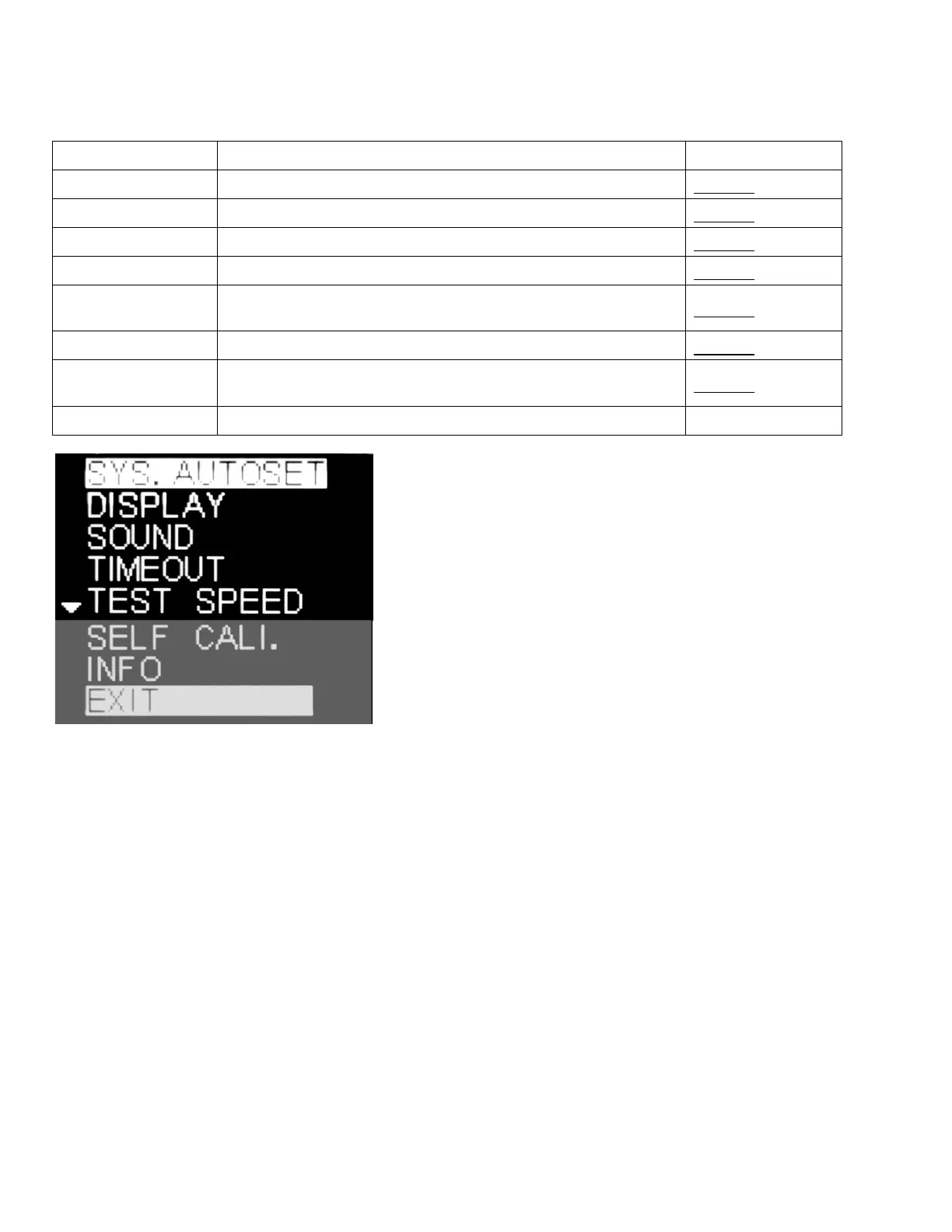

Figure 2-4: System Menu
System Autoset
System Autoset is used to reset the following system parameters to default:
• Display
o Right Hand
o 40% Contrast
• Sound: On
• Timeout: 1min
• Test Speed: 1.0sec
Display Menu
Display menu is used to select display settings. The default setting is right hand with 40% contrast. The Display
menu has 4 options as Figure 2-5 shows:
• Right Hand: select the right hand operation mode.
• Left Hand: select the left hand operation mode.
• Contrast: change the display contrast settings.
• Exit: Return to the measurement display.
