9 User Manual - LCR Pro1/Pro1 Plus - ver 1.06
Navigating Menus
Press the “Up” or “Down” button to move cursor to the desired menu item and press the “Select” button to
select it. The item that is highlighted indicates the current setting.

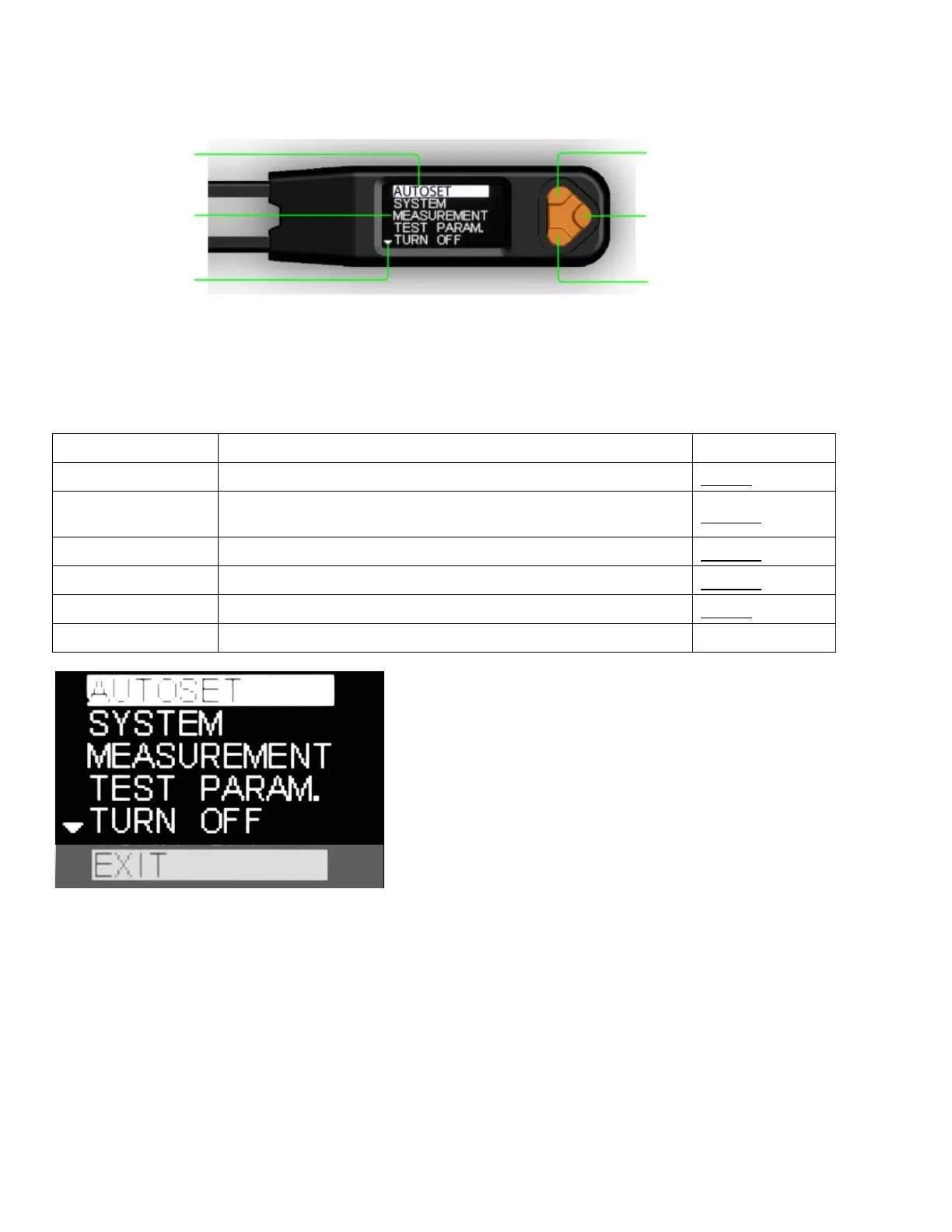

Figure 2-2: Navigating Menus
Main Menu
Main menu provides 5 options as described in Table 2-1.
Table 2-1 Description of Main Menu
Menu Item
Description
Learn More On:
Autoset
Reset all the settings to default
Page 9
System
Select user interface, start self-calibration and view device
information
Page 10
Measurement
Select measurement types
Page 15
Test PARAM.
Select test parameters
Page 18
Turn Off
Turn off the meter
Page 2
Exit
Return to the measurement display
Figure 2-3: Main Menu
Autoset
Once Autoset is selected, the meter resets the following parameters to default:
• Measurement:
o LCRZ: Auto
o Secondary Parameters: Rs/Rp
• Test Parameters:
o Test Frequency: Auto
o Test Voltage: 1.0Vrms
o Circuit Mode: Auto
o Phase Angle: 10°
Menu extension
Selected item
Available
items
Up button
Select button
Down button
