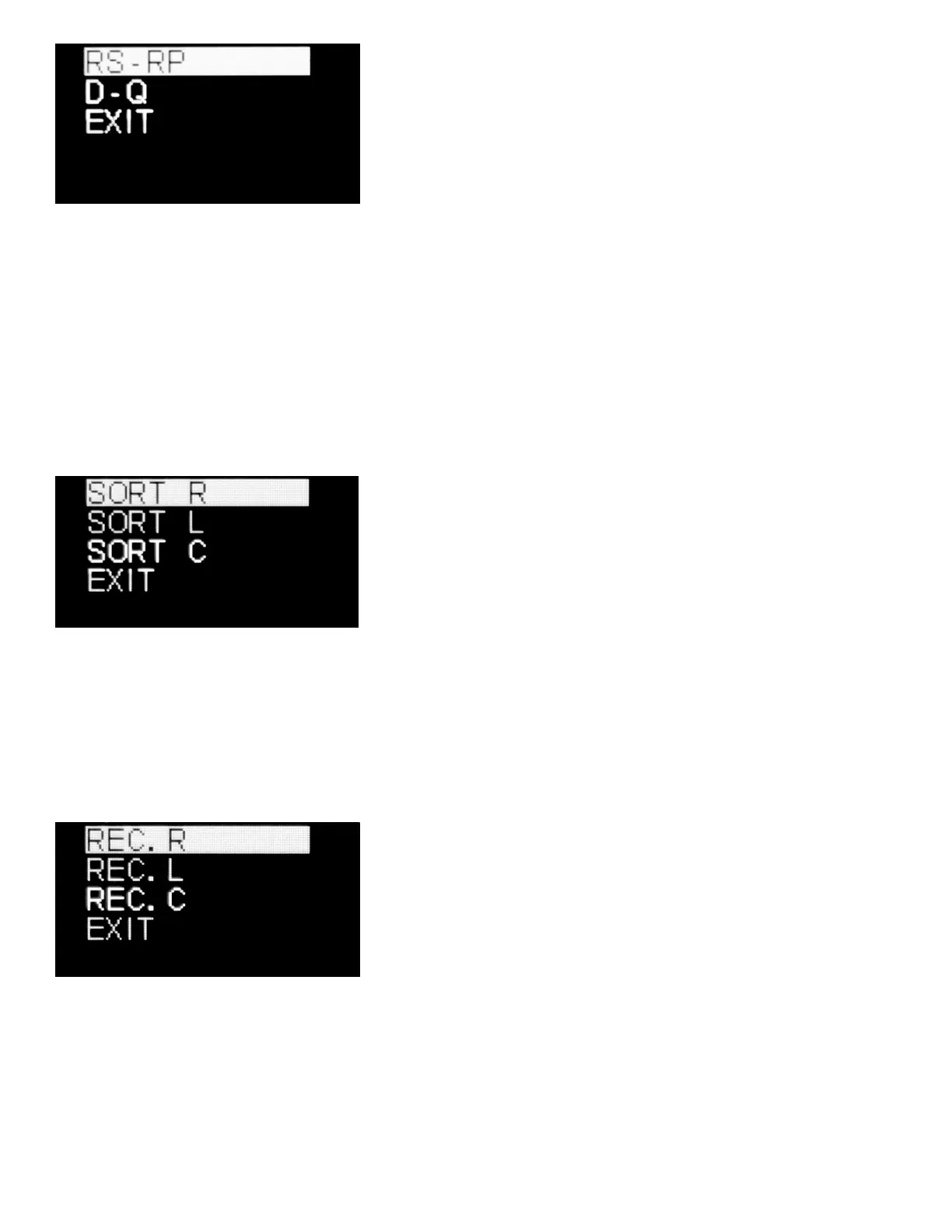

Figure 2-19: Secondary Parameter Menu
Sorting Menu
Sorting menu is used to set the component type in sorting mode. The following settings can be selected:
• Sort R: the meter measures the resistance of the component under test and tells the user whether it is in
the range or not.
• Sort L: the meter measures the inductance of the component under test and tells the user whether it is in
the range or not.
• Sort C: the meter measures the capacitance of the component under test and tells the user whether it is
in the range or not.
• Exit: Return to the measurement display.
Figure 2-20: Sorting Menu
Recording Menu
Recording menu is used to set the component type in recording mode. The following settings can be selected:
• REC. R: recording resistance.
• REC. L: recording inductance.
• REC. C: recording capacitance.
• Exit: Return to the measurement display.
Figure 2-21: Recording Menu
