LCR Pro1 User Manual

3 User Manual - LCR Pro1/Pro1 Plus - ver 1.06

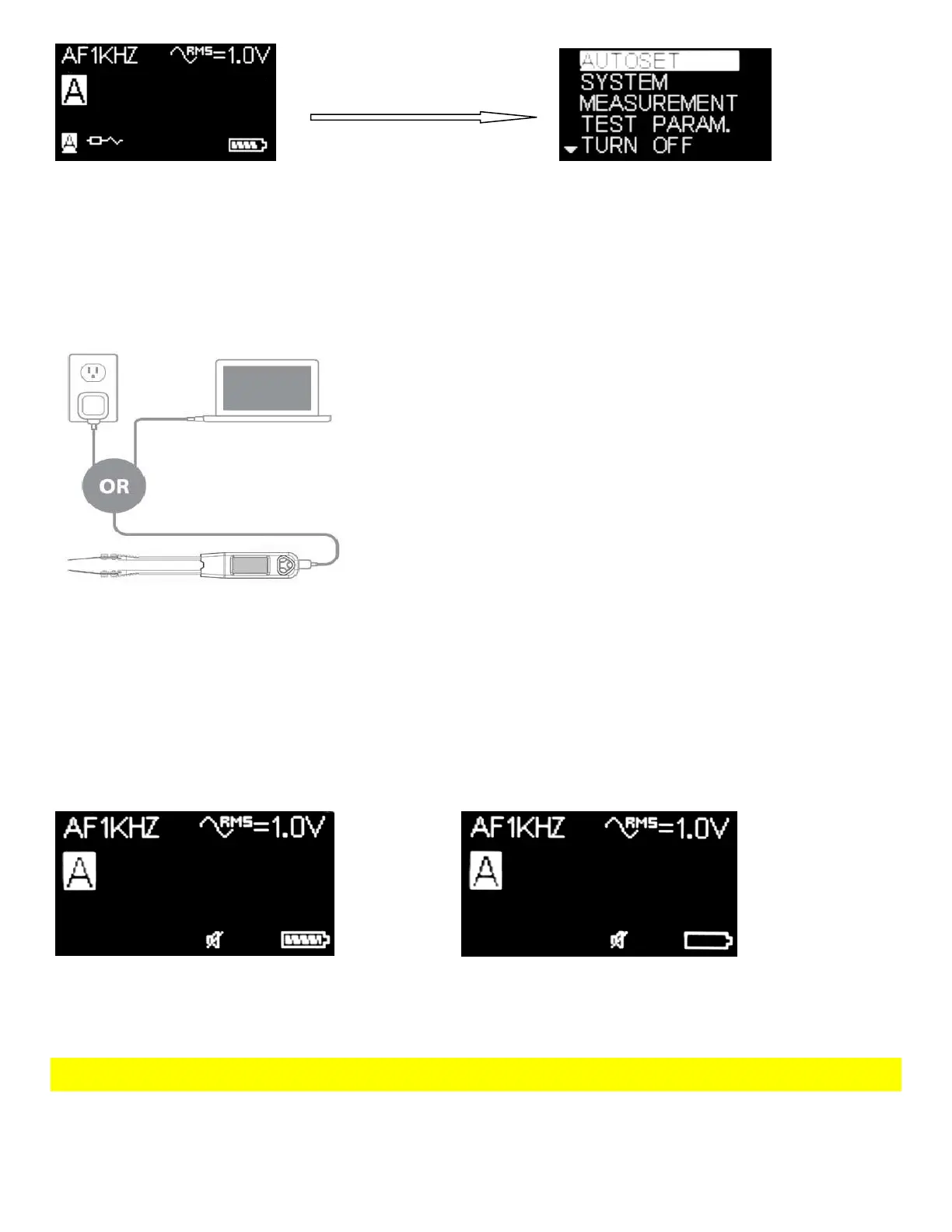

Figure 1-5: Switching from Measurement Display (in Idle Mode) to Main Menu Display
Charging the Battery
The meter is powered by an internal, lithium-ion polymer rechargeable battery. It can be charged by connecting
to a computer USB port using a standard micro-B USB cable or, by using a USB power adapter. The USB power
adapter should have output voltage 5V +/- 5% with output current 100mA or greater. The USB power adapter is
available separately.
Figure 1-6: Charging the Meter
Battery Level Indicator
The battery icon in the bottom-right corner shows the battery level or charging status.
When the battery icon becomes hollow, it indicates that the battery remaining capacity is low and that it should
be recharged. The warning appears when the battery capacity is about 95% depleted. The unit is still operational
for a while, however the battery should be recharged as soon as possible.
Full Capacity
Empty Battery
Figure 1-7: Battery Charging Icon
CAUTION
Rechargeable batteries have a limited number of charge cycles and may eventually need to be replaced. The
meter battery isn’t user replaceable; it can be replaced only by an LCR Research Authorized Service Provider.
Hold the "Select" button for
half second to switch
