LCR Pro1 User Manual

36 User Manual - LCR Pro1/Pro1 Plus - ver 1.06
Holding the Display
When the meter is measuring a component, the latest result can be held on the display by single clicking the
“Select” button. When the hold function is active, the “Hold” annunciator is shown on the display as Figure 3-22
shows.

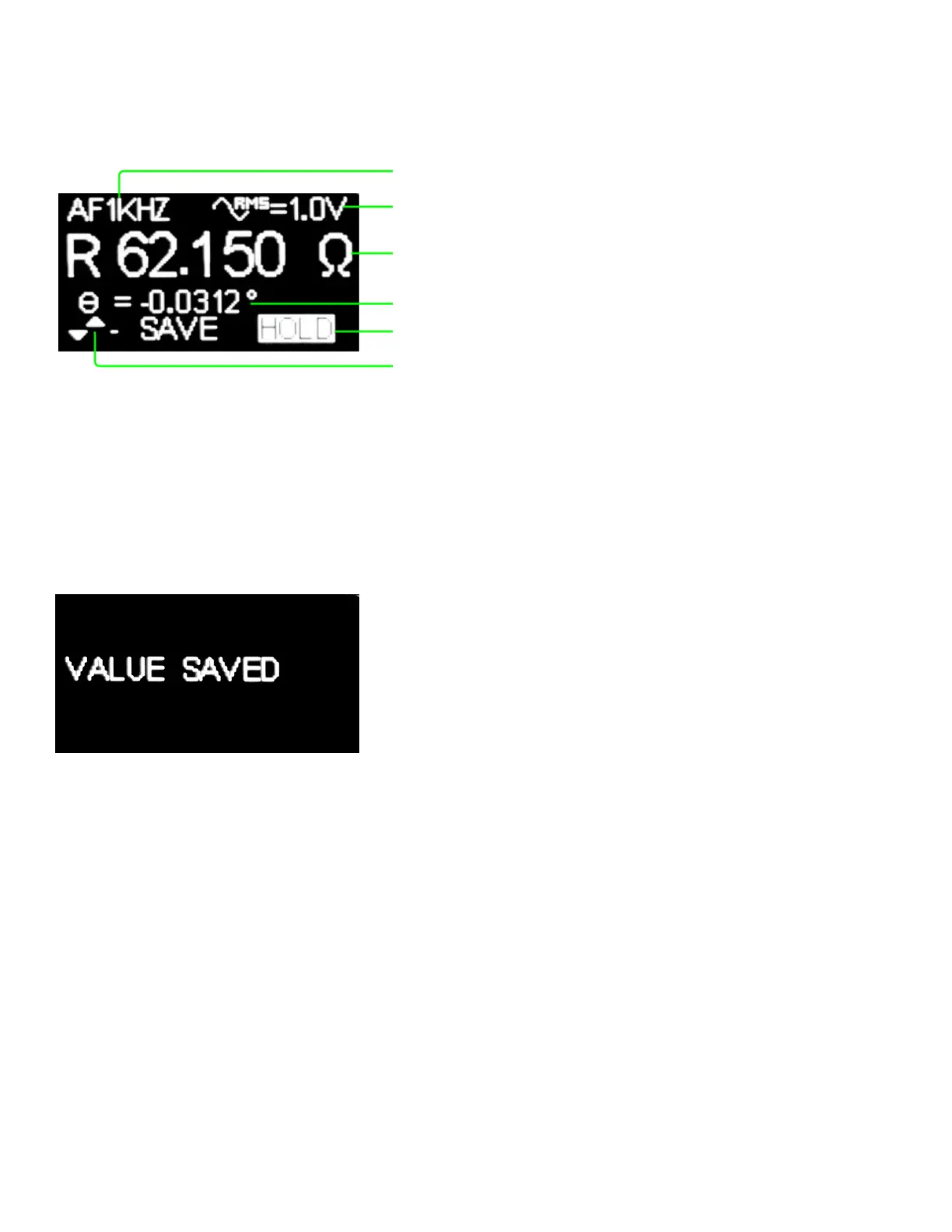

Figure 3-22: Holding the Display
When the display is on hold, user can single click the “Select” button to resume the measurement or press down
the "Select" button for half second or so to go to the main menu screen. When a resistance, inductance or
capacitance result is on hold, the display shows the up and down arrows with the SAVE message on the bottom
left of the screen as Figure 3-22 shows. When single clicking the "Up" or "Down" button, a Value Saved screen
pops up as Figure 3-23 shows. It indicates the on hold result is successfully saved as the new sorting reference
value.
Figure 3-23: Value Saved Display
Component type and measurement result
Secondary parameter
Single click the "Up" or "Down" button to save the
on hold result
Test voltage
Test frequency
"Hold” annunciator indicates display is on hold. Single
click the "Select" button to resume the measurement.
