Phase Angle Menu

Phase angle menu is used to set the phase angle condition for auto component identification. When the meter

works in auto mode, it automatically identifies component type according to the phase angle setting. The

default setting is 10° and the following settings can be selected:

• 5°

• 10°

• 15°

• 20°

• 30°

• 45°

• Exit: Return to the measurement display.

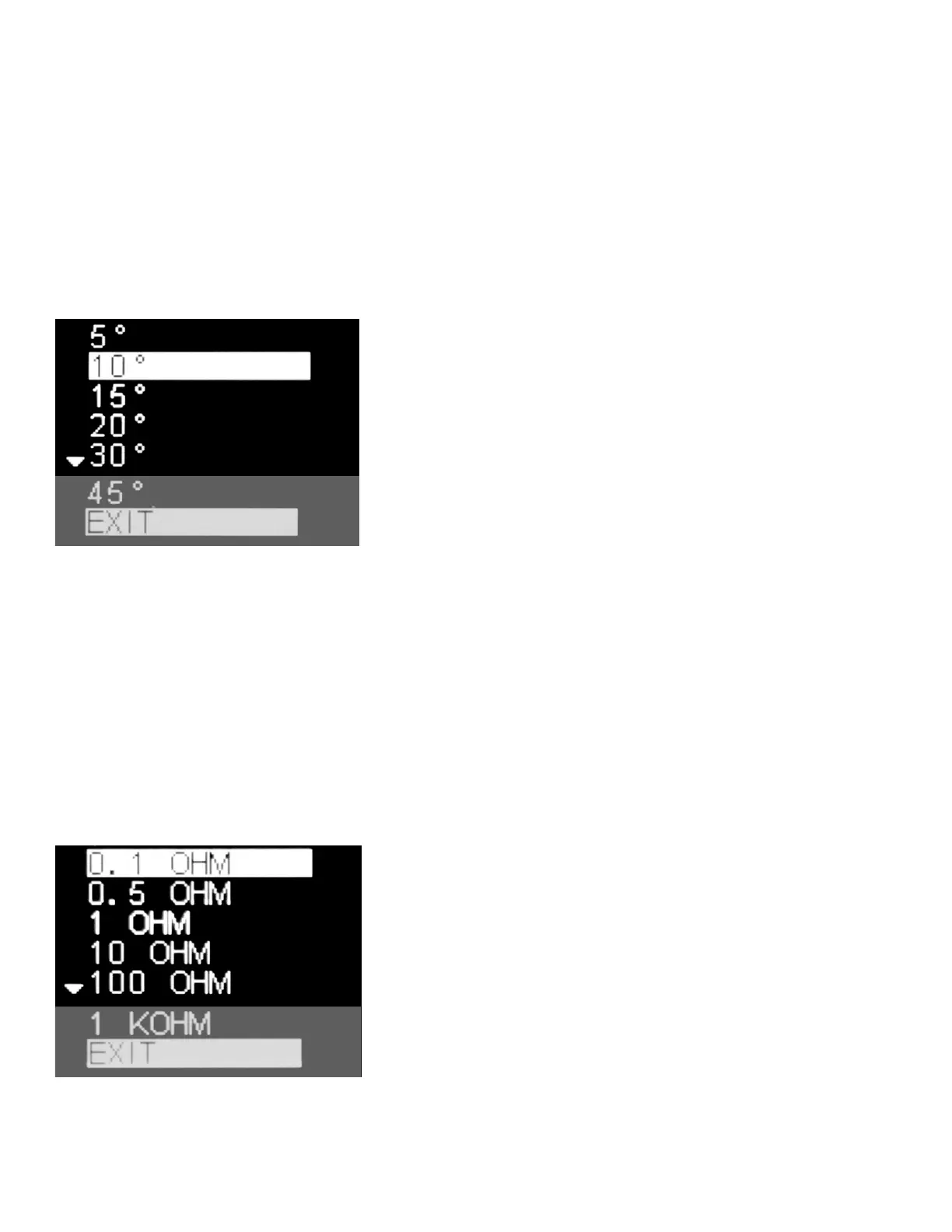

Figure 2-26: Phase Angle Menu

Set Continuity Menu

Set Continuity menu is used to set the resistance threshold. When the meter works in continuity mode, it beeps

if the component has a resistance less than the threshold. The default setting is 10Ω and the following settings

can be selected:

• 0.1Ω

• 1Ω

• 10Ω

• 100Ω

• 1kΩ

• Exit: Return to the measurement display.

Figure 2-27: Continuity Threshold Menu
