LCR Pro1 User Manual

25 User Manual - LCR Pro1/Pro1 Plus - ver 1.06
AF
100Hz
120Hz
1kHz
10kHz
100kHz
Single Click
UpButton

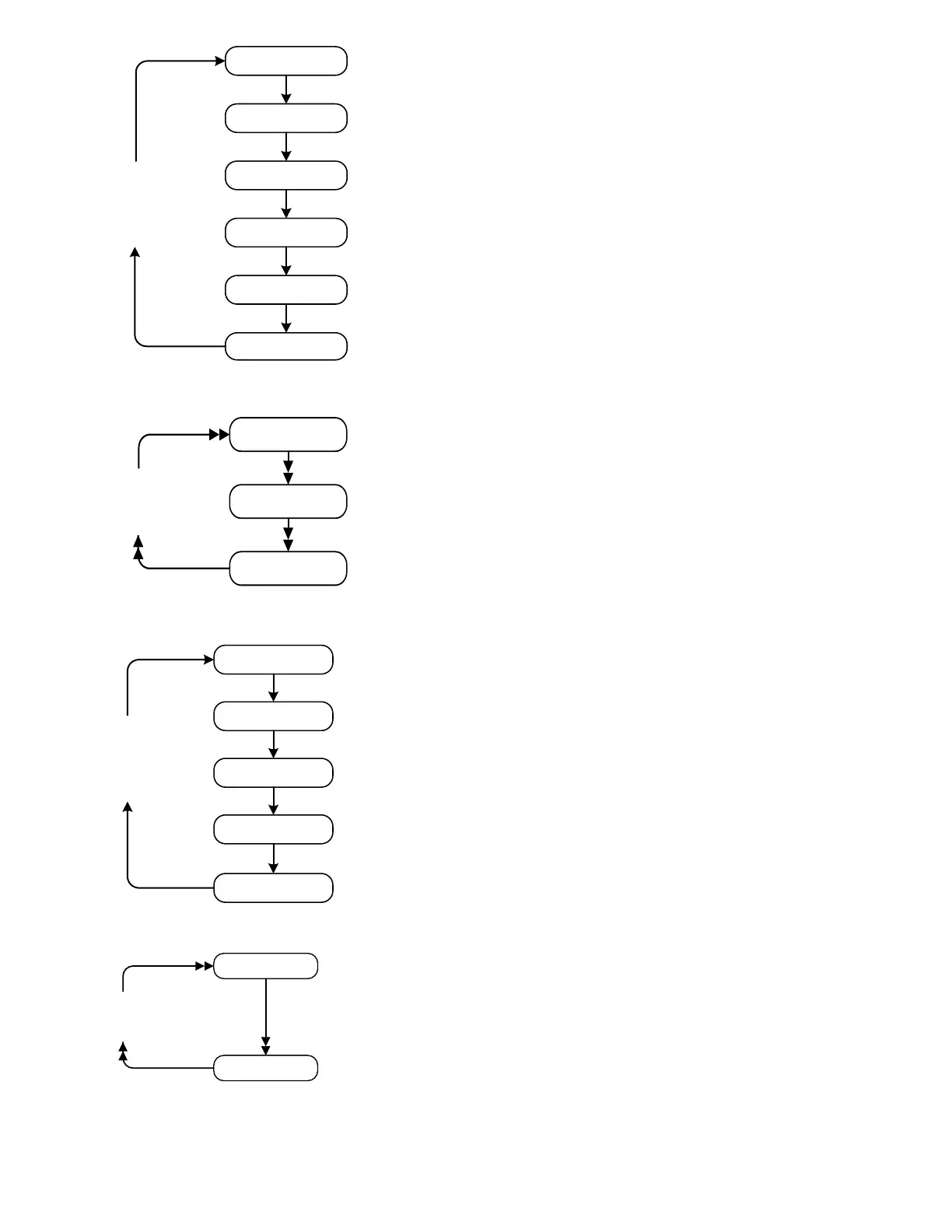

Figure 3-2: Switch Test Frequency by Single Clicking the "Up" Button
0.2Vrms
0.5Vrms
1.0Vrms
Double Click
UpButton
Figure 3-3: Switch Test Voltage by Double Clicking the "Up" Button
Auto
R
L
C
Z
Double Click
SelectButton
Figure 3-4: Switch Component Type by Double Clicking the “Select” Button
Rs-Rp
D-Q
Single Click
DownButton
Figure 3-5: Switch Secondary Parameter Setting by Single Clicking the "Down" Button

LCR Pro1 Specifications

General

Brand	LCR
Model	Pro1
Category	Measuring Instruments
Language	English
