10
ELD2-RS70** User Manual

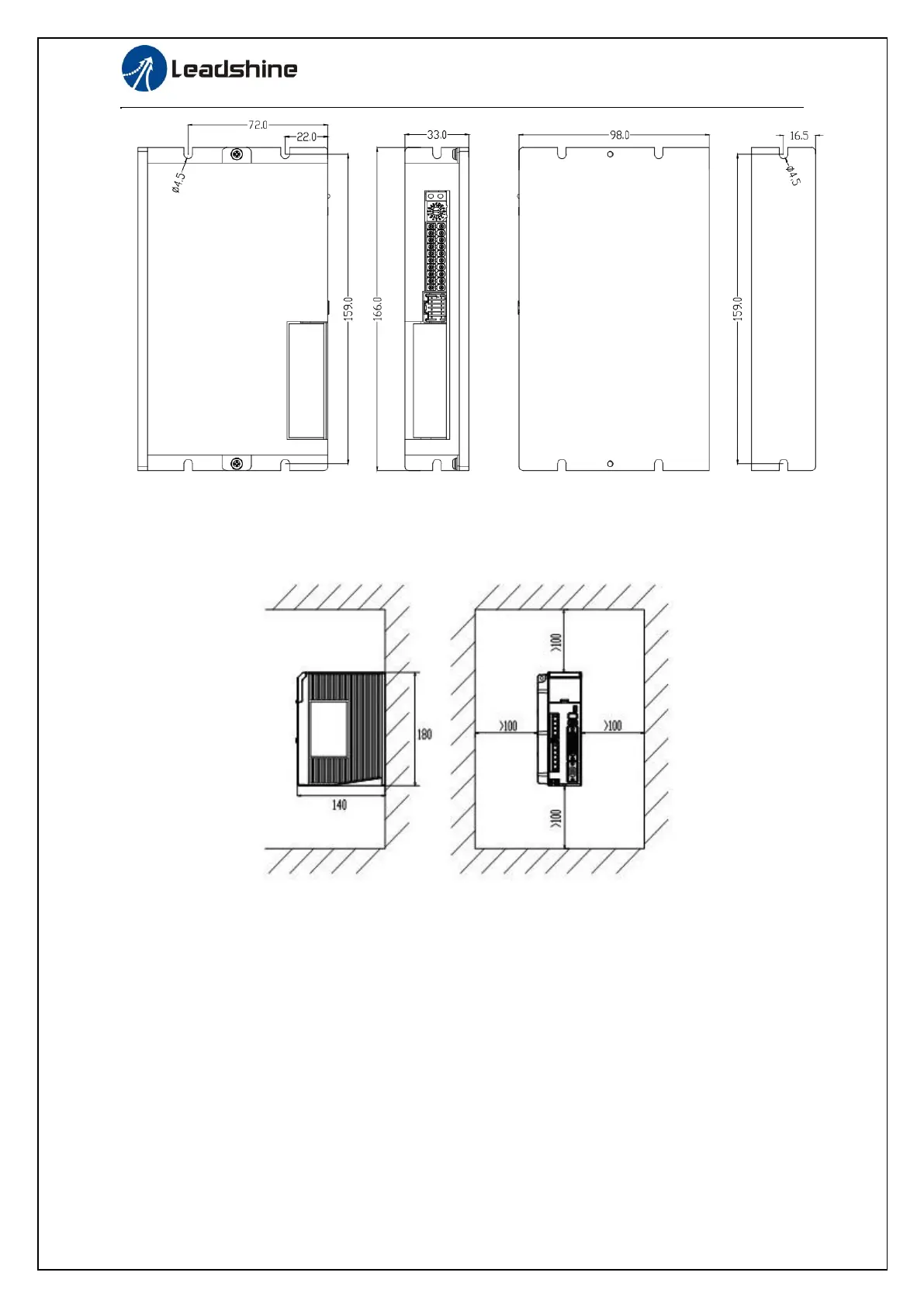

Figure 2.1(B) installation method of driver ELD2-RS7015 /ELD2-RS7020/ ELD2-RS7030
2.2.2 Installation Space
Reserve enough surrounding space for effective cooling.
Figure 2.2 Installation Space for Single Driver
